Radio, Stereo, and Compact Disc

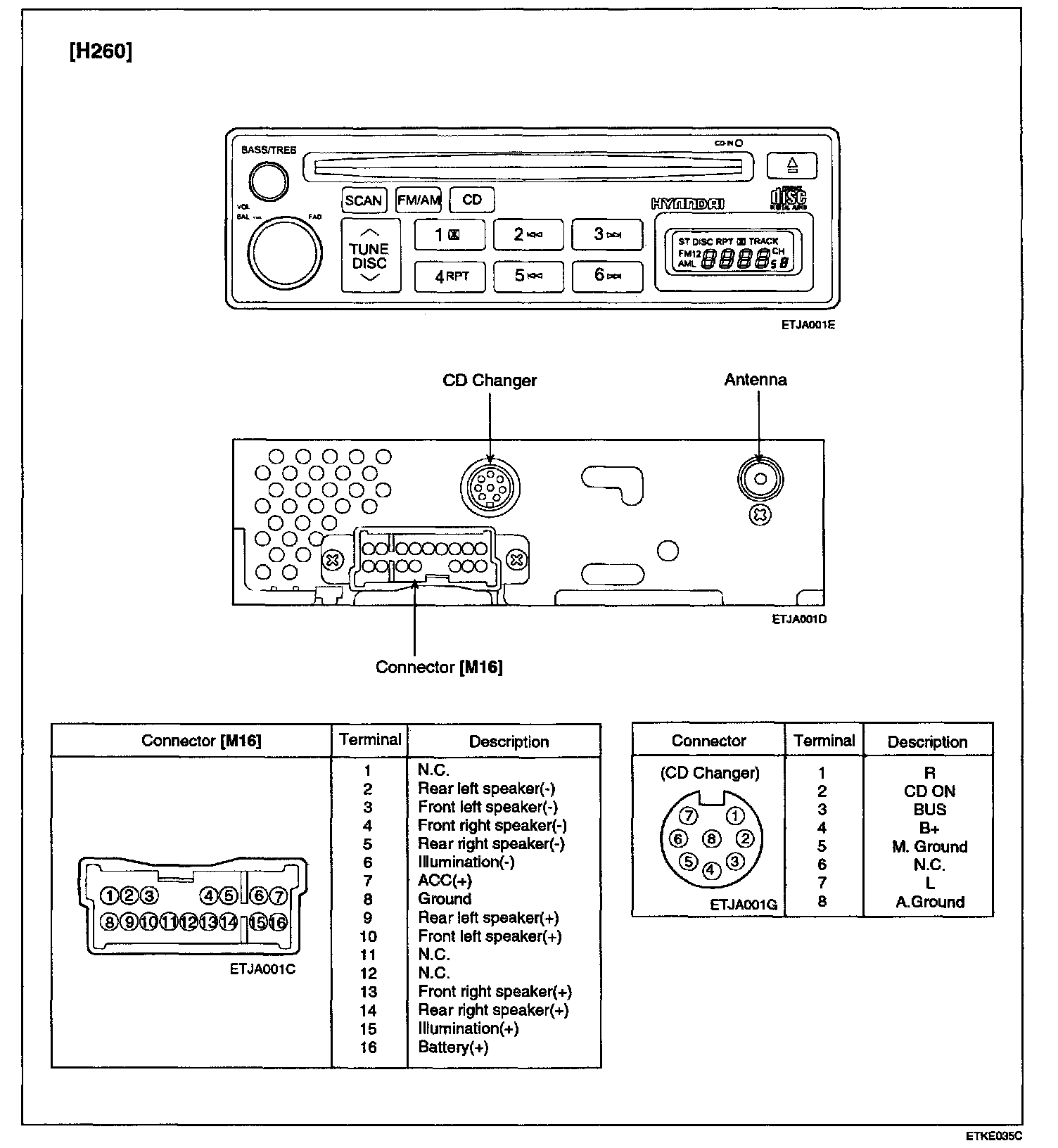

Audio Unit Part 1:

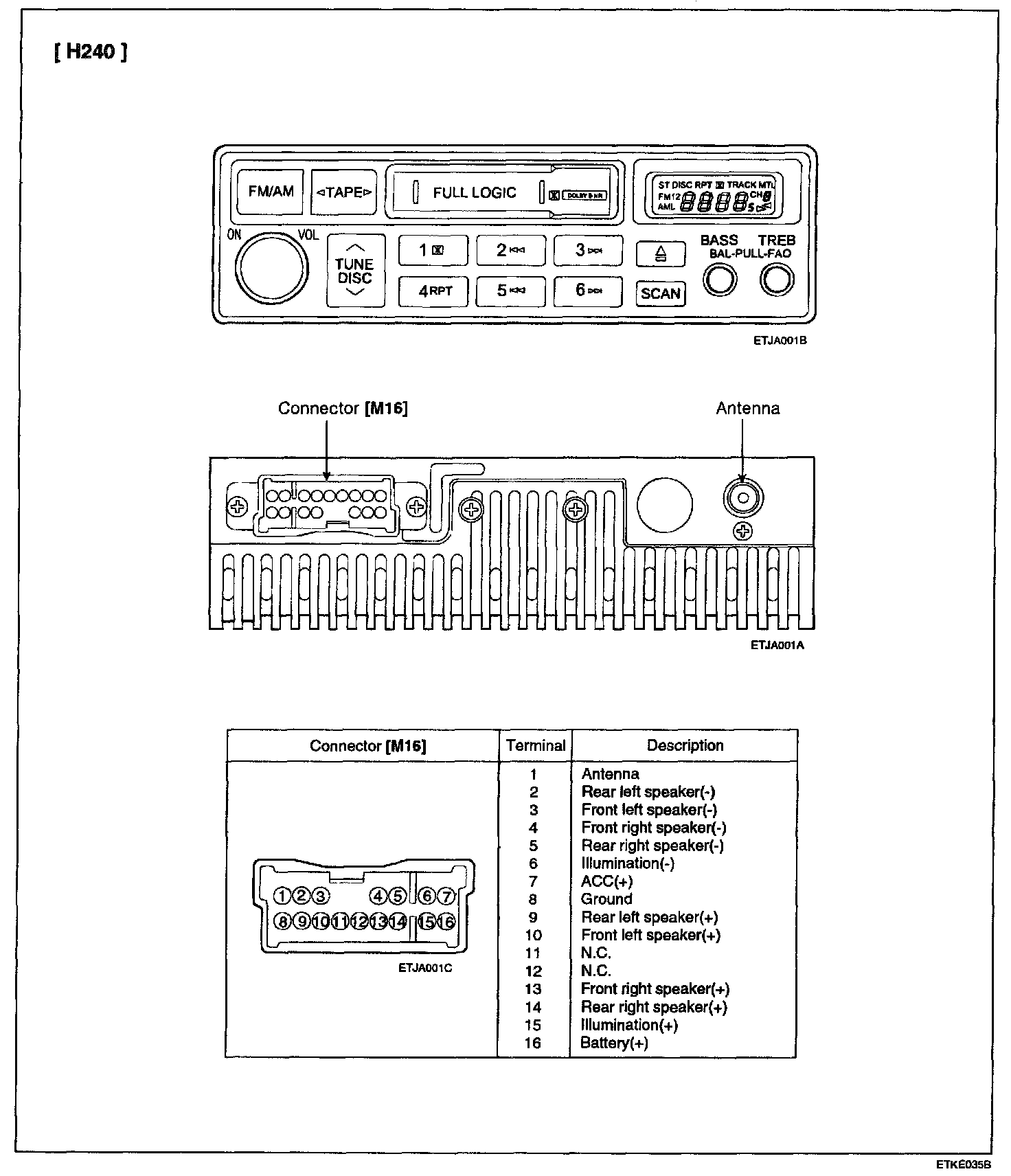

Audio Unit Part 2:

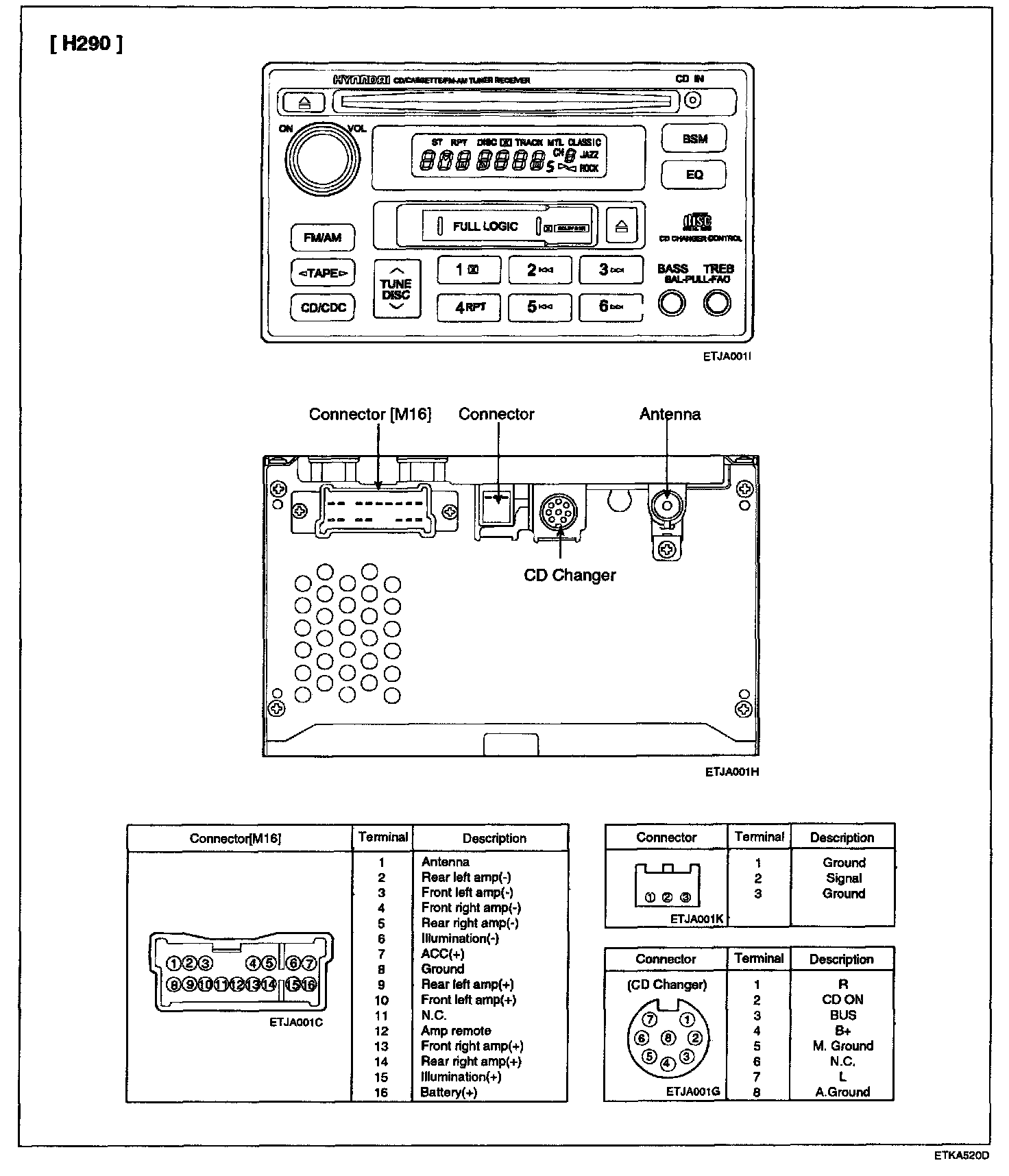

Audio Unit Part 3:

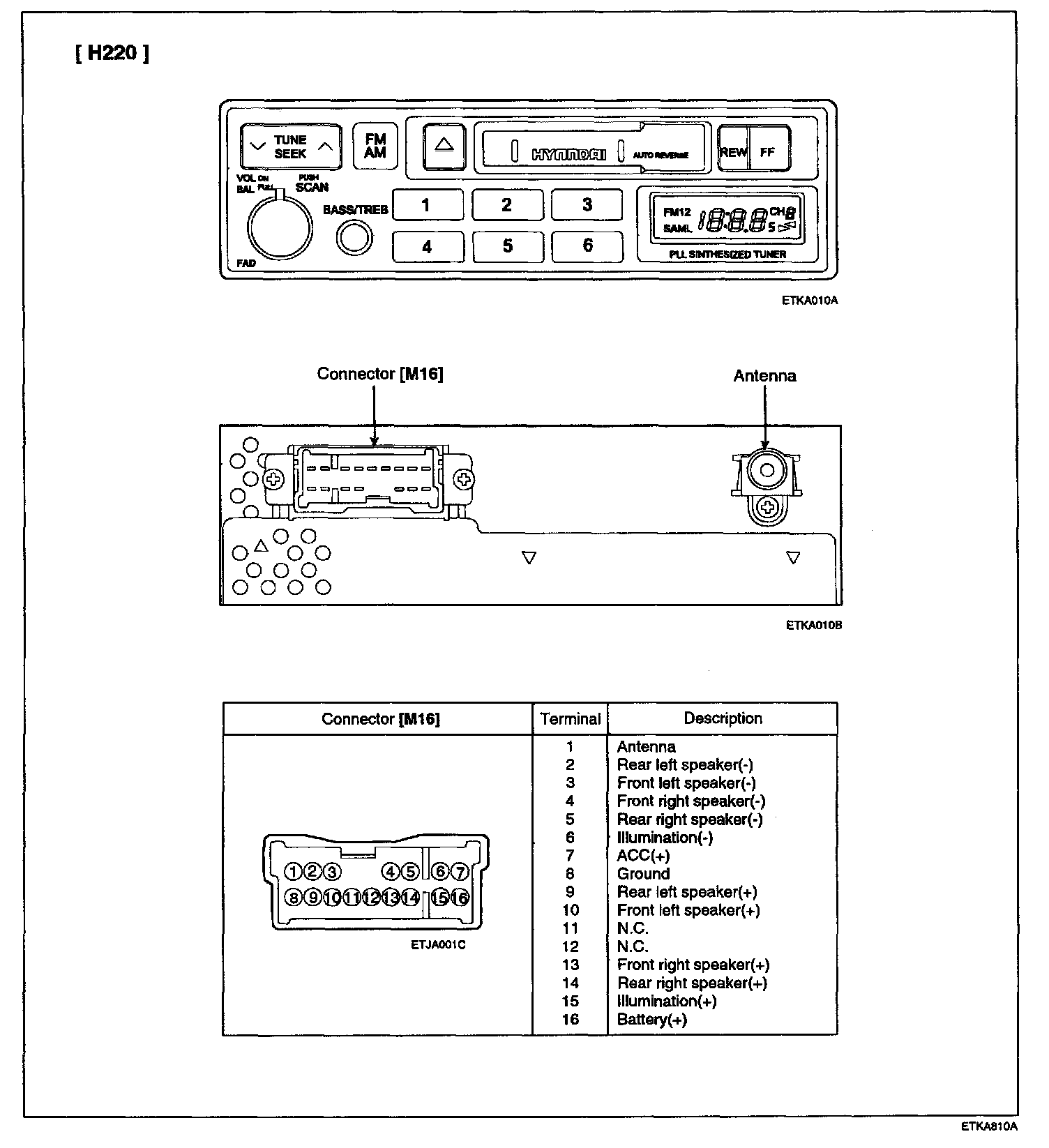

Audio Unit Part 4:
