Power Transistor HVAC

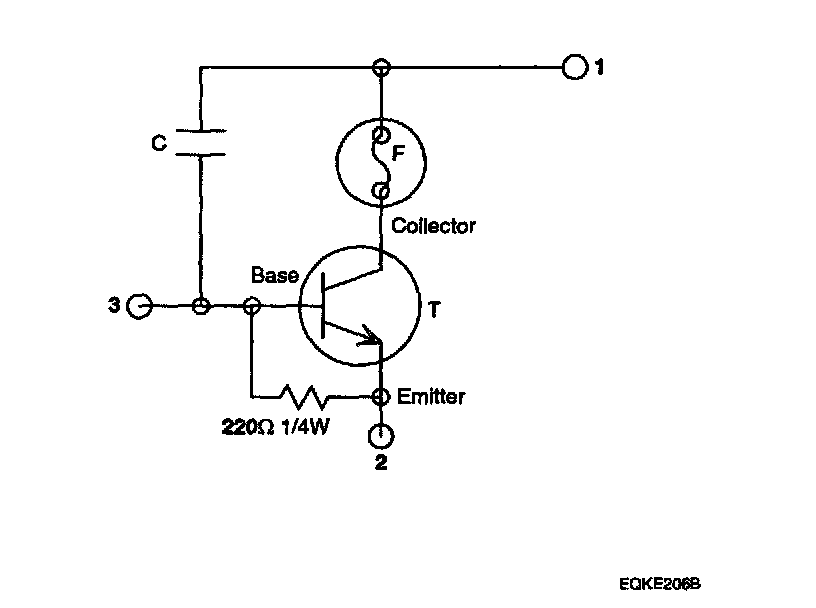

Circuit Diagram And Important Performance Of Parts Composed Circuit:
A. Power transistor:
Equivalent to MOTOROLA MJ11032 (Pc = 300 W, Ic = 50 A)
B. Fuse: 250 V, 128 °C
Condensor: 0.22 Micro F, 50 V
A. Power transistor:
Equivalent to MOTOROLA MJ11032 (Pc = 300 W, Ic = 50 A)
B. Fuse: 250 V, 128 °C
Condensor: 0.22 Micro F, 50 V
