Connector Views
>>
Air Door Actuator / Motor Relay
>>
Temp Actuator Potentiometer

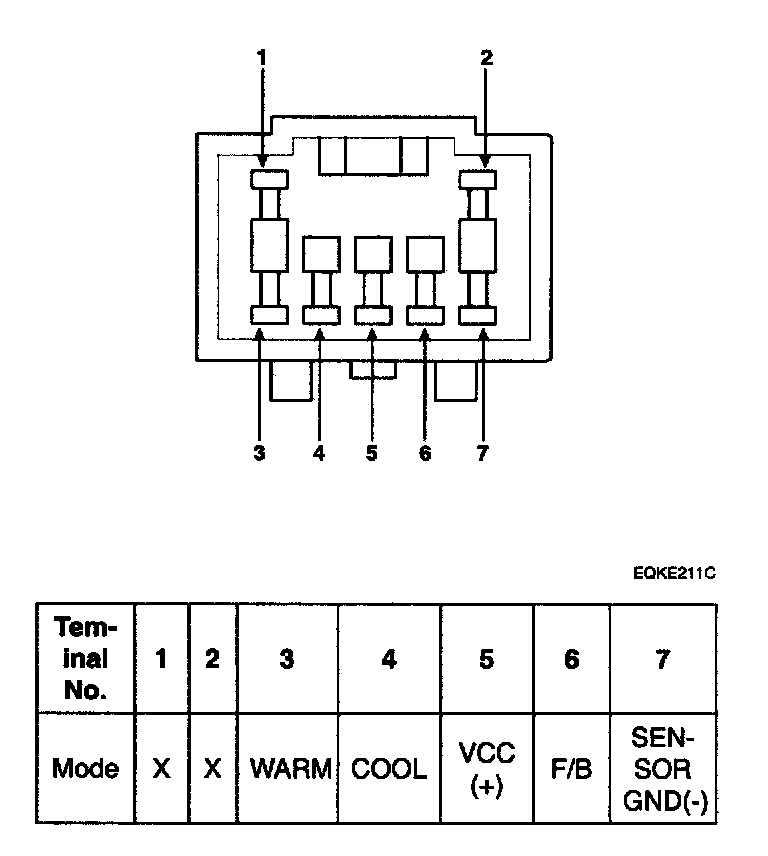

Temp Actuator Potentiometer
Connector:
