Home >> Hyundai >> 2005 >> Elantra L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Door Actuator / Motor Relay >> Mode Control Actuator

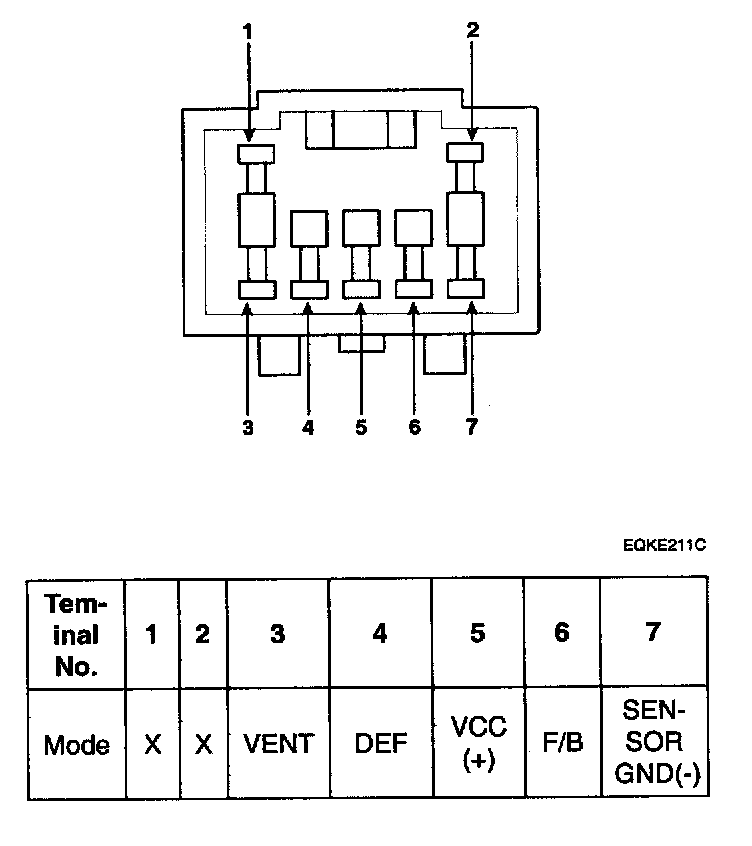

Mode Control Actuator

Connector:
