Troubleshooting

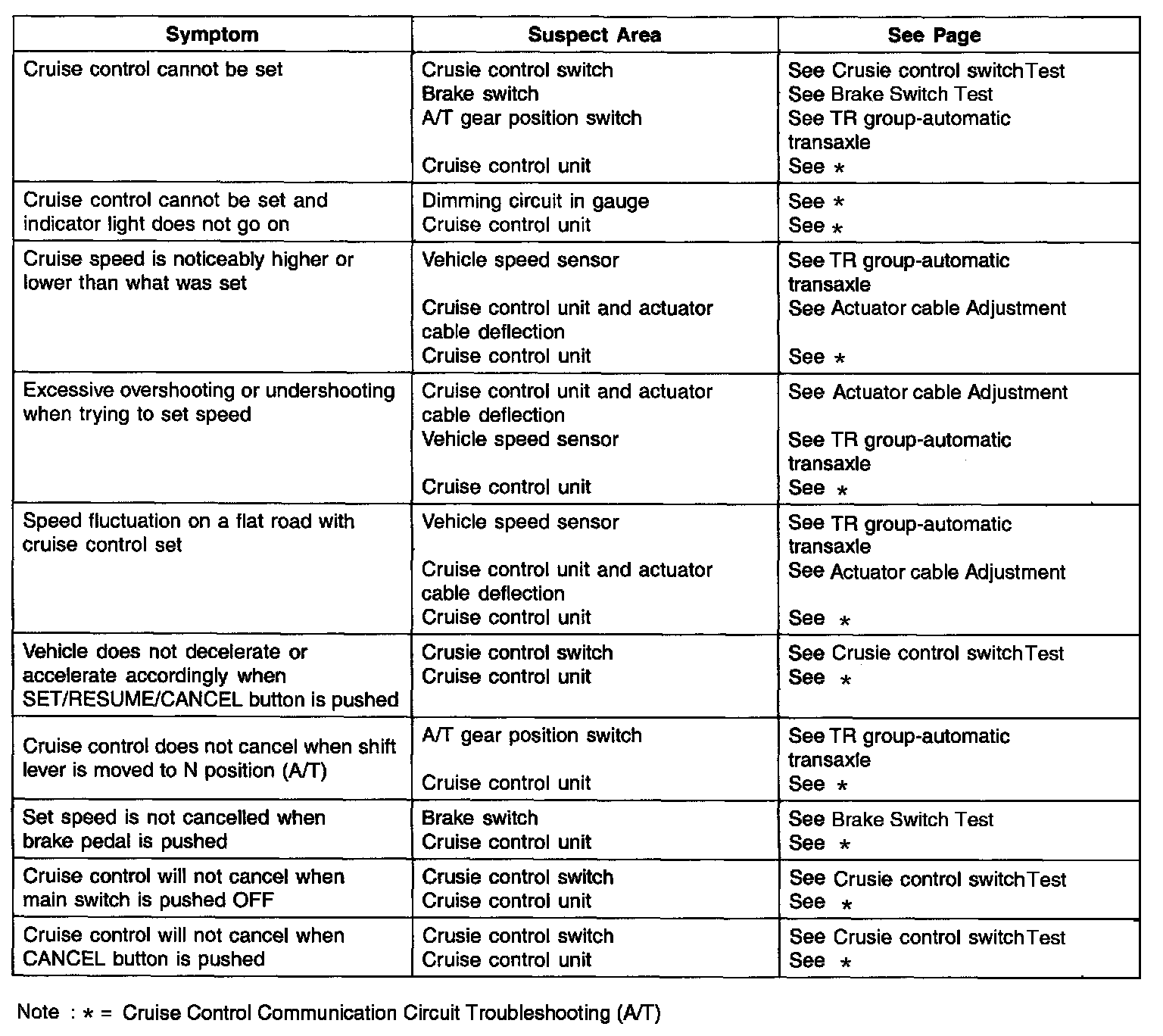

Cruise Control System:

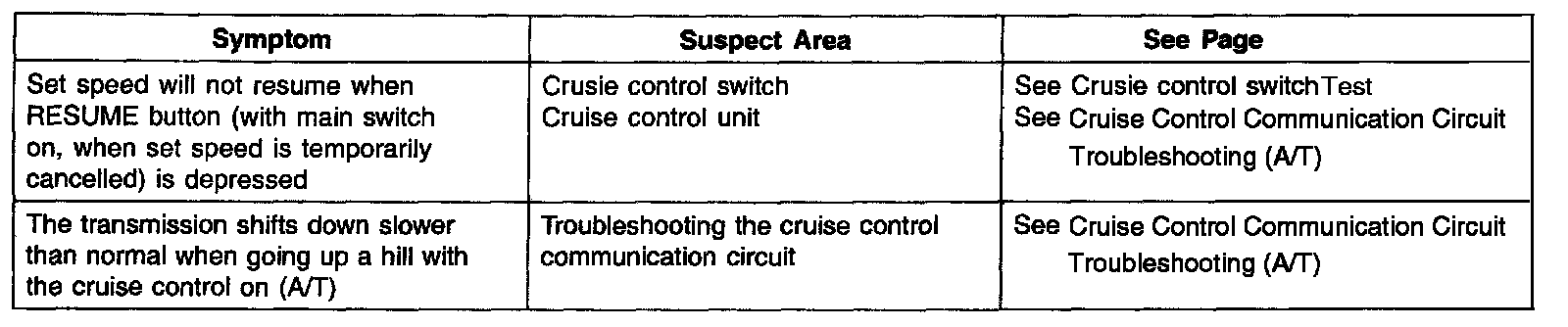

Cruise Control System Part 2:






NOTE:
Before troubleshooting:
- Check the No.2 (10 A), No. 8 (10 A), No. 10 (10 A) and No. 16 (15 A) fuse in the under - hood fuse/relay box.
- Check that the horn sounds.
- Check the tachometer to see if it works properly
