When Ignition Key Is Turned ON (Engine Off), The ABS Warning Lamp Does Not Light Up
When Ignition Key Is Turned ON (Engine Off), The ABS Warning Lamp Does Not Light Up

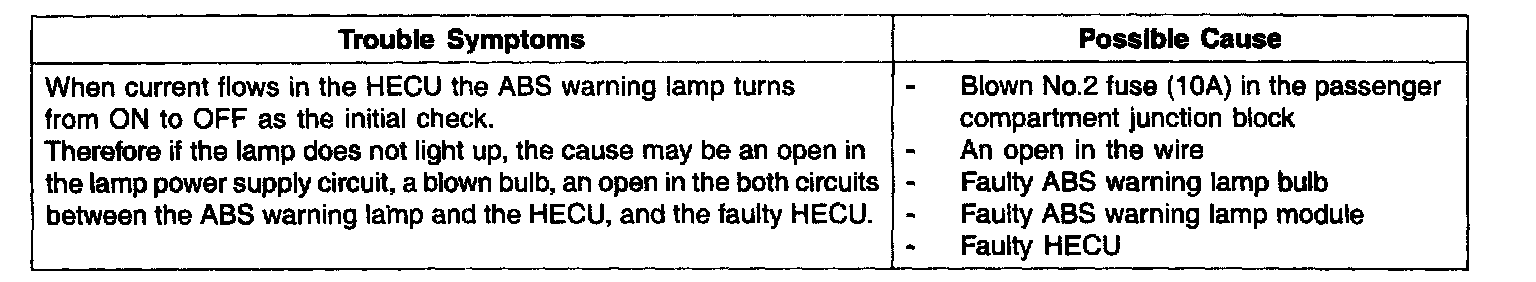

DETECTING CONDITION
INSPECTION PROCEDURES

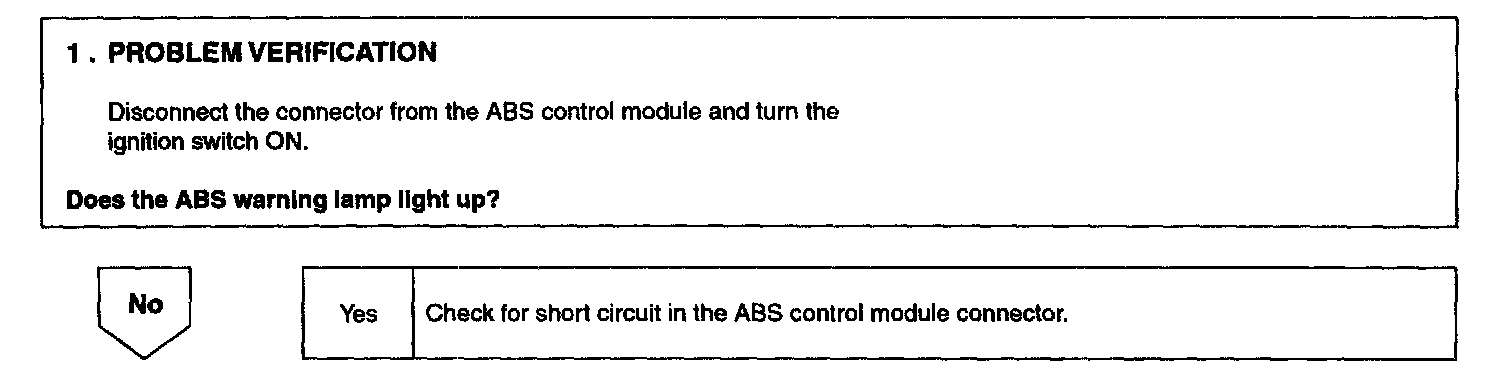

Test Step 1:

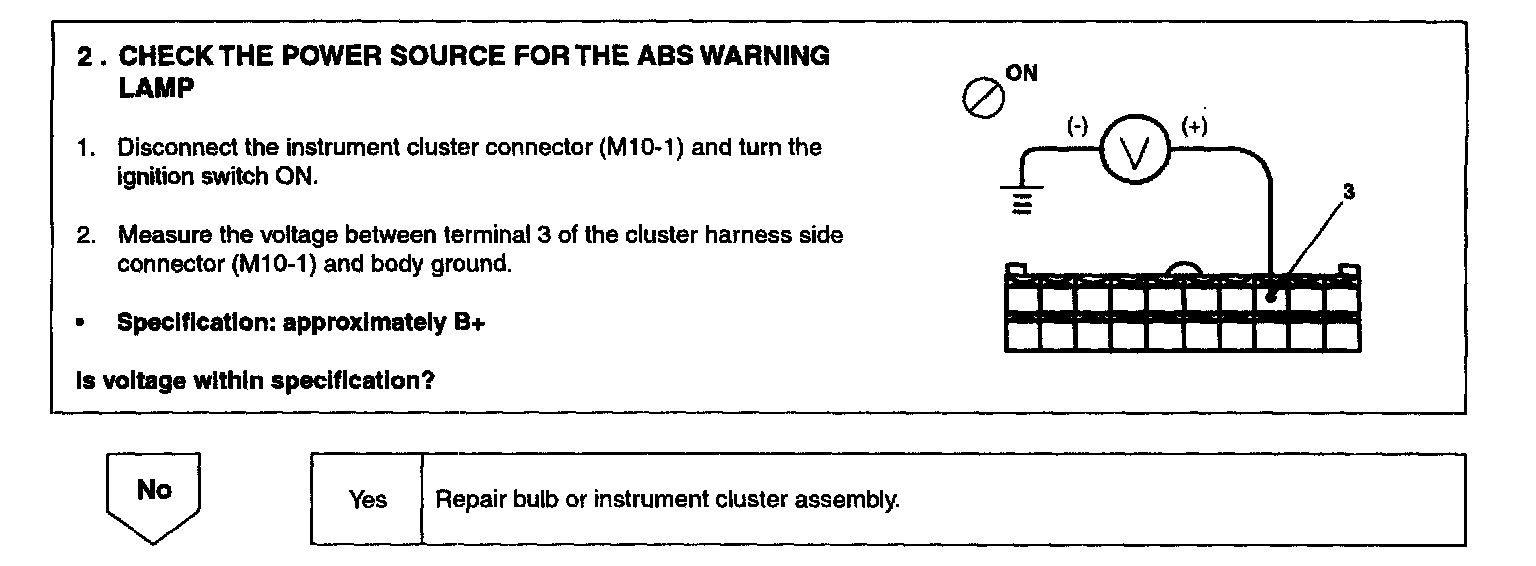

Test Step 2:

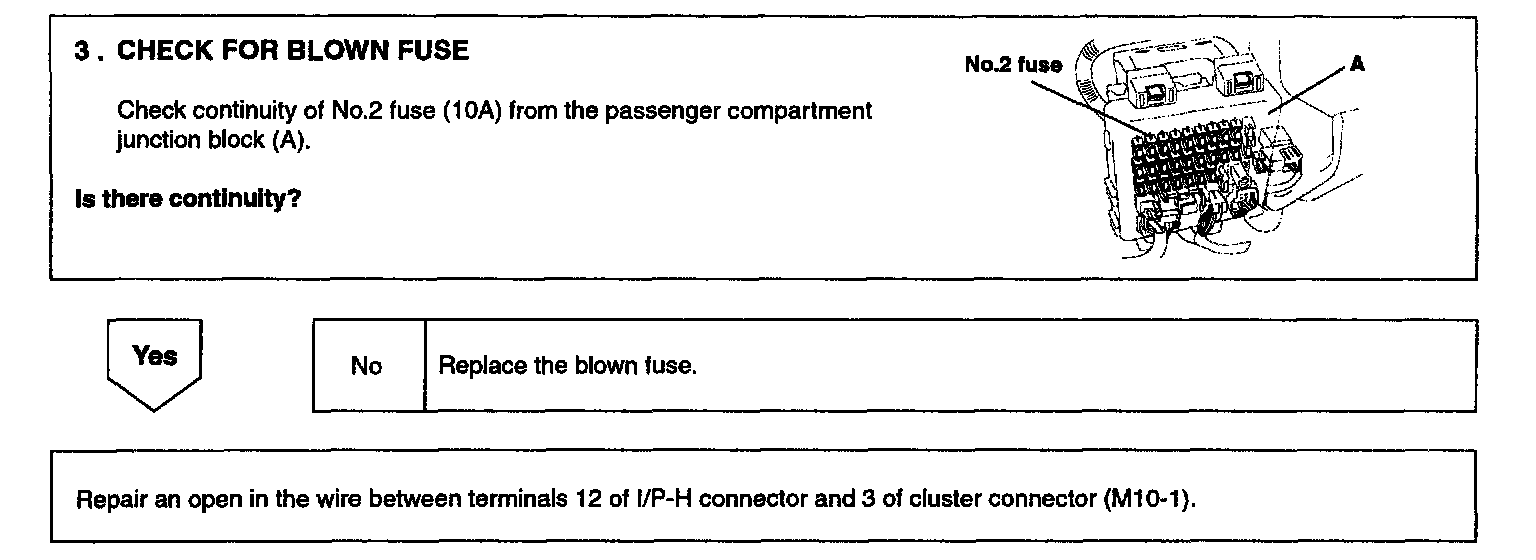

Test Step 3:
