Inspection Chart

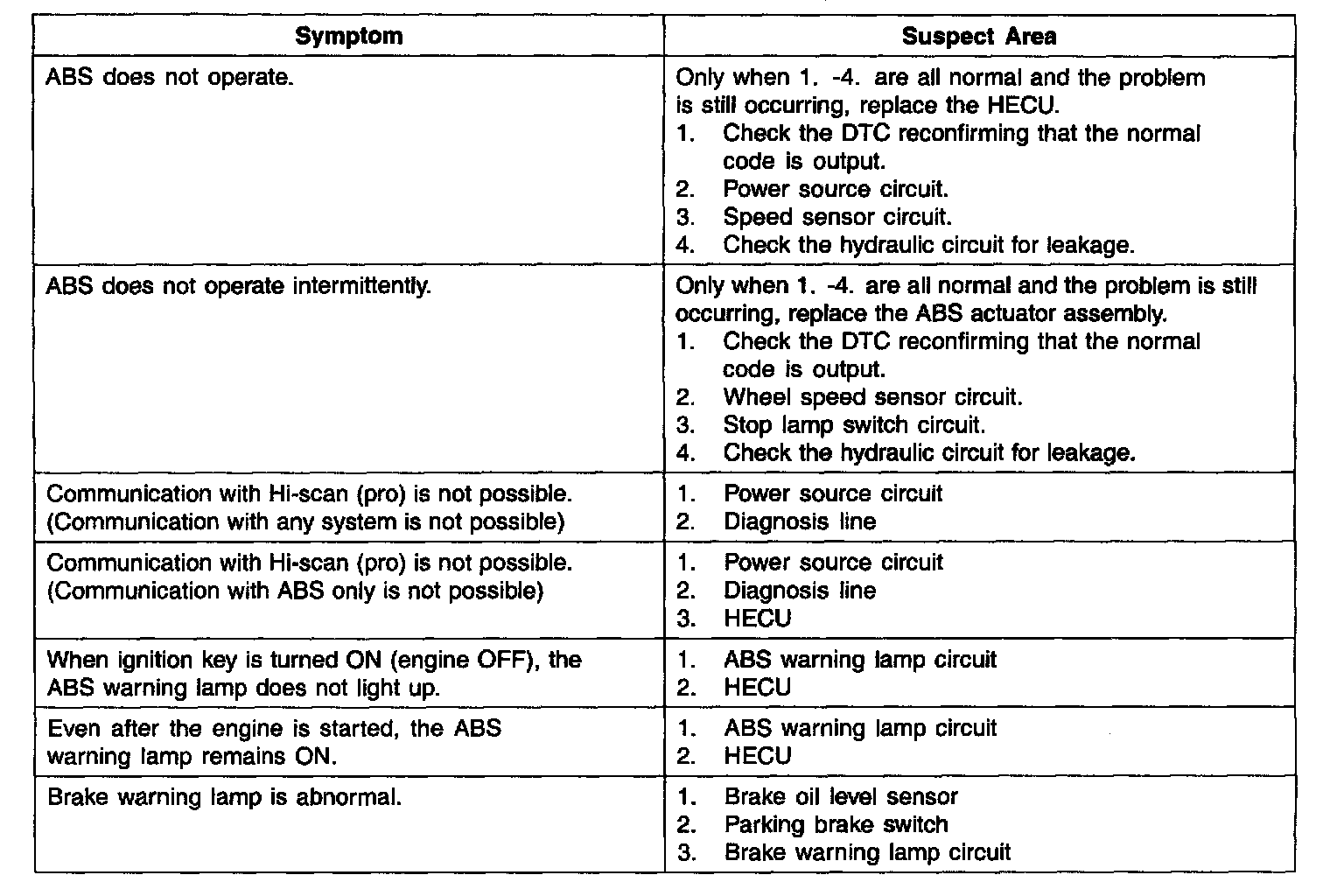

PROBLEM SYMPTOMS TABLE





If a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to relevant troubleshooting.

CAUTION: During ABS operation, the brake pedal may vibrate or may not be sale to be depressed. Such phenomena are due to intermittent changes in hydraulic pressure inside the brake line to prevent the wheels from locking and is not an abnormality.
