ABS Does Not Operate

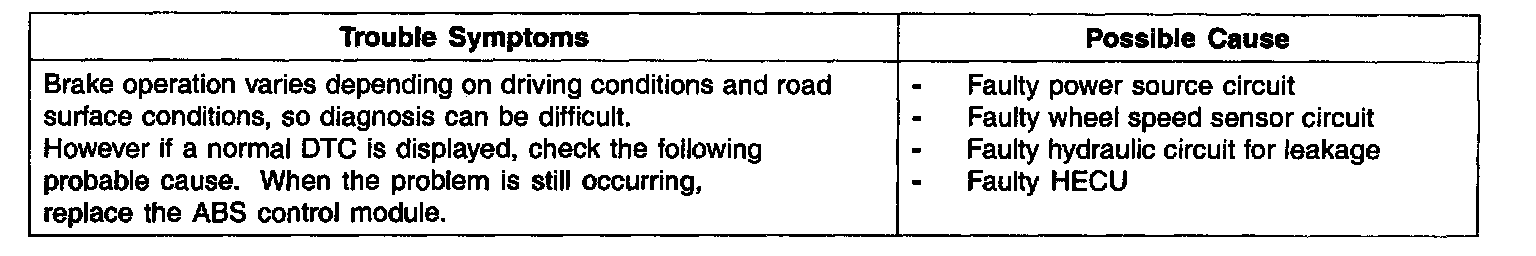

DETECTING CONDITION






INSPECTION PROCEDURES

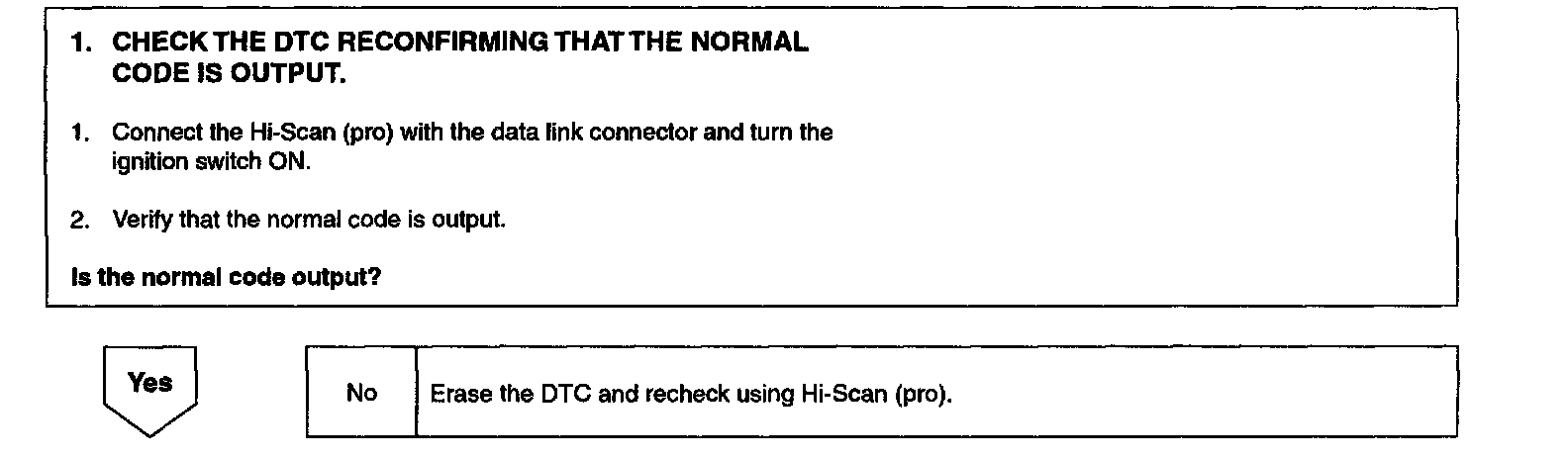

Test Step 1:

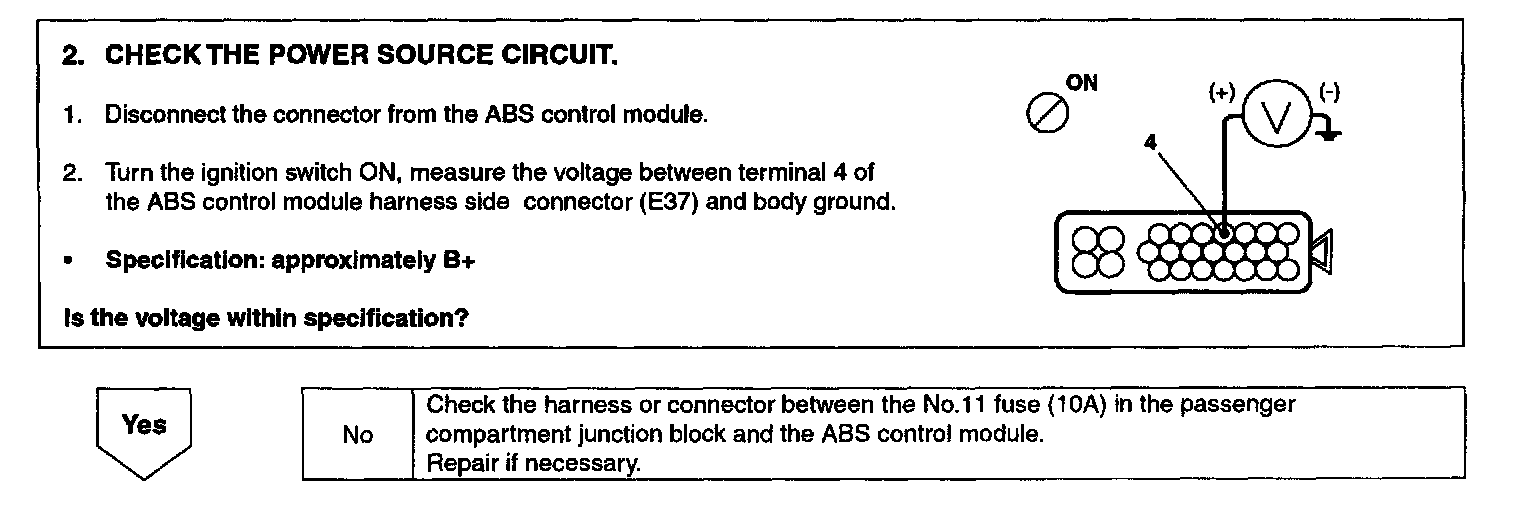

Test Step 2:

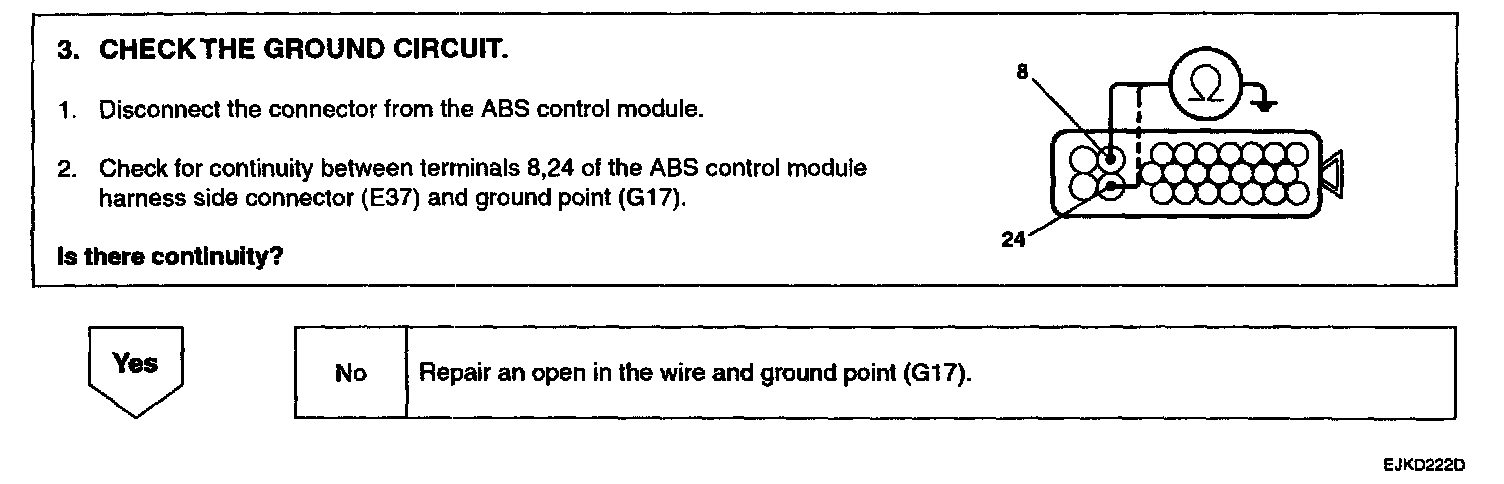

Test Step 3:

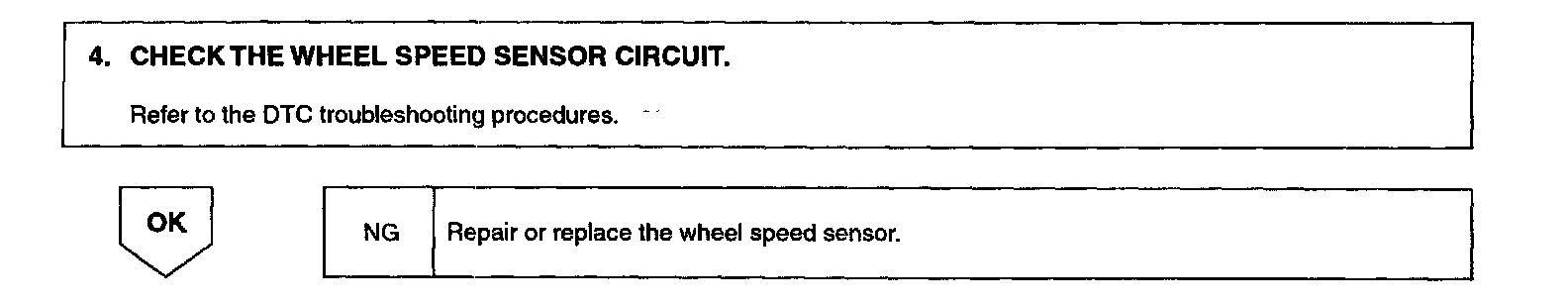

Test Step 4:

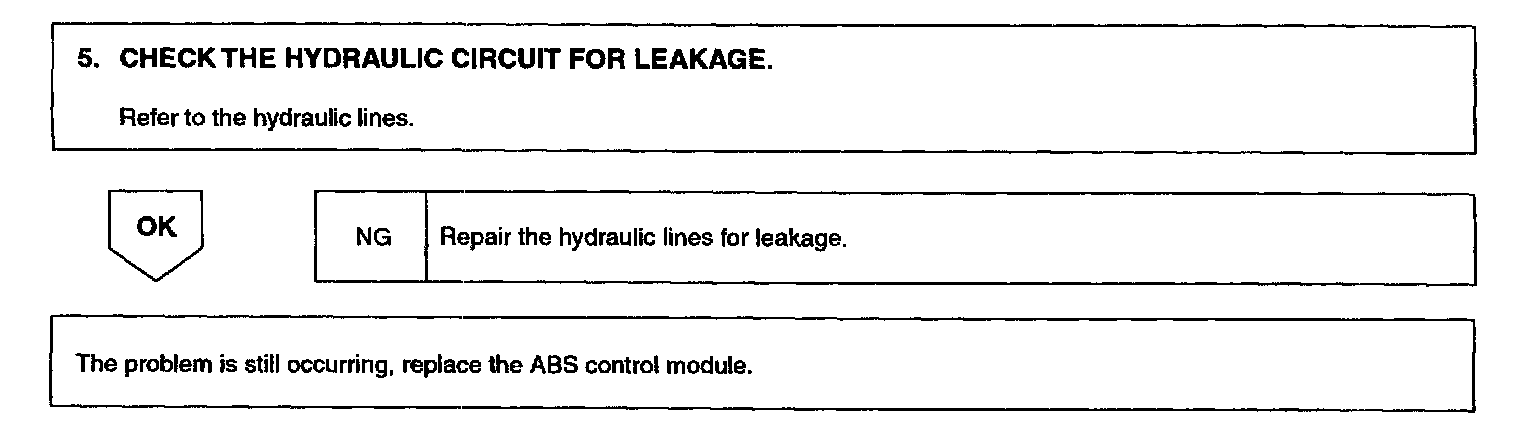

Test Step 5:
