Sunroof / Moonroof Windguard: Service and Repair

DEFLECTOR REPLACEMENT

1. Open the glass fully.

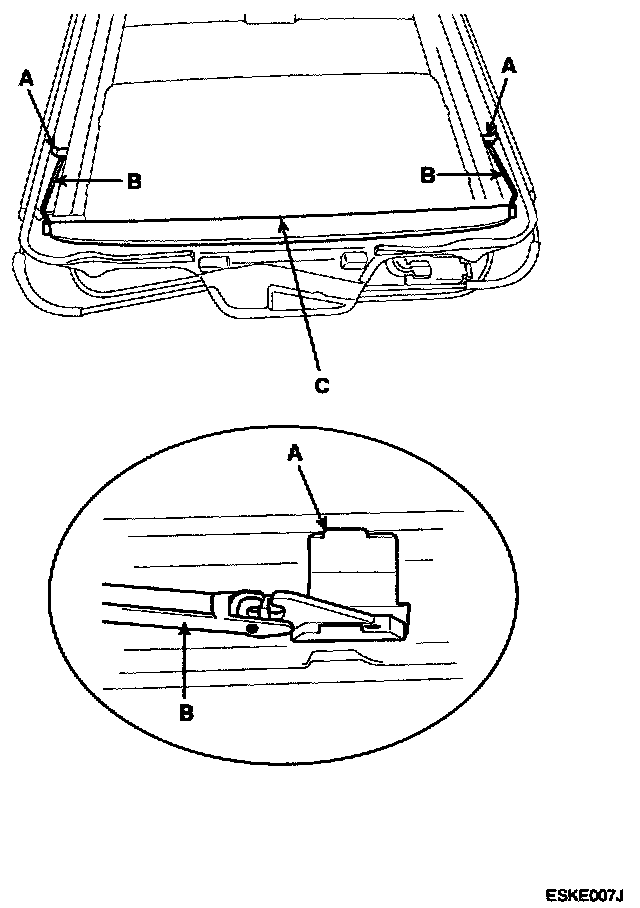

2. Disconnect the deflector link (A) from the deflector link connector (B), remove the screws, and then remove the screws, and then remove the deflector (C).
3. Installation is the reverse of removal.
