Sunroof / Moonroof Panel: Service and Repair

GLASS REPLACEMENT

1. Close the glass fully and slide the sunshade all the way back.

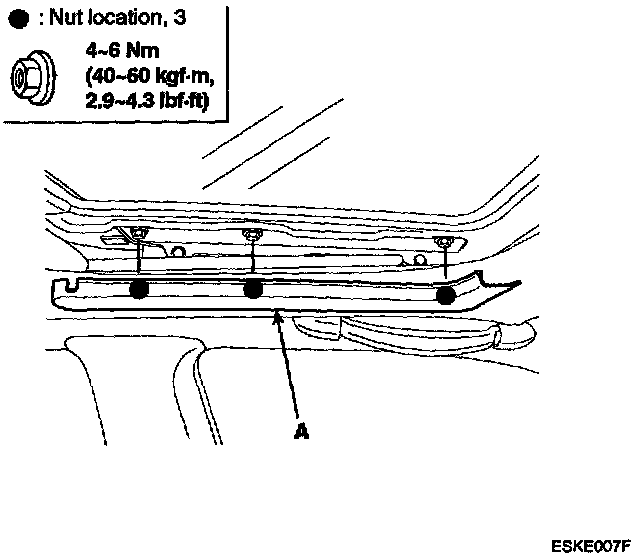

2. Remove both decoration covers (A), then remove the glass mounting nuts.

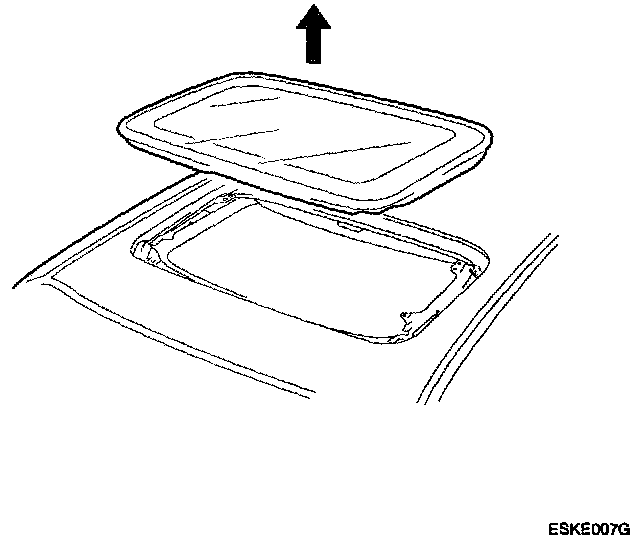

3. Remove the glass by lifting it up.

NOTE: Do not damage the roof panel.






4. Installation is the reverse of removal, and adjust the glass height alignment. Check for water leaks.
Do not use high-pressure water.
