Sunroof / Moonroof Motor: Service and Repair

MOTOR AND CONTROLLER REPLACEMENT

1. Remove the headliner.

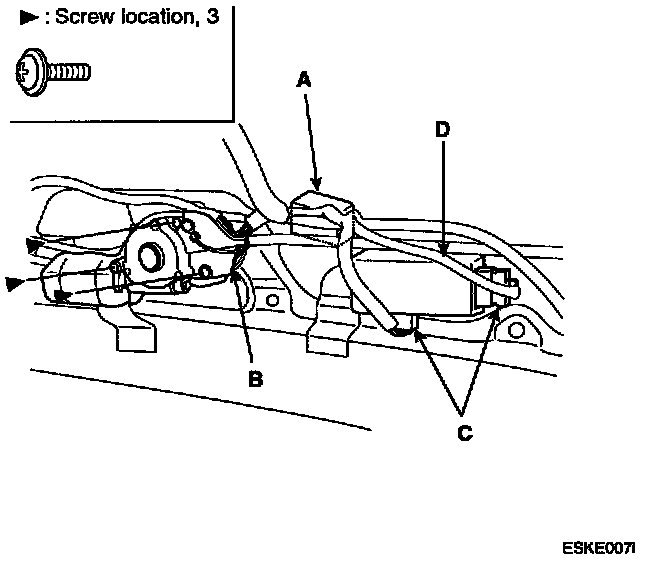

2. Disconnect the motor connector (A), remove the screws and then remove the motor (B).
3. Disconnect the controller connector (C), and remove the controller (D).
4. Installation is the reverse of removal.
