Sunroof Assembly Replacement

SUNROOF ASSEMBLY REPLACEMENT

1. Remove the headliner.

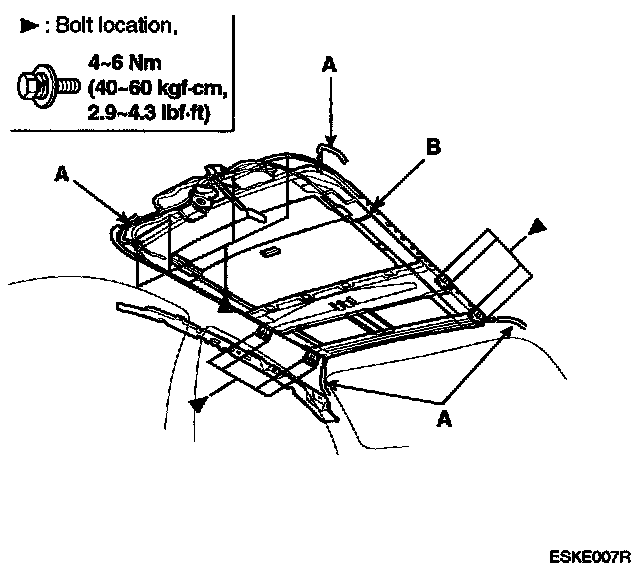

2. Disconnect the motor connector, sunroof switch connector, and drain tubes (A).
3. With an assistant holding the sunroof assembly (B), remove mounting bolts, and sunroof assembly.

NOTE: Take care not to scratch the interior trims and other parts.

4. Installation is the reverse of removal.
