Paint: Application and ID

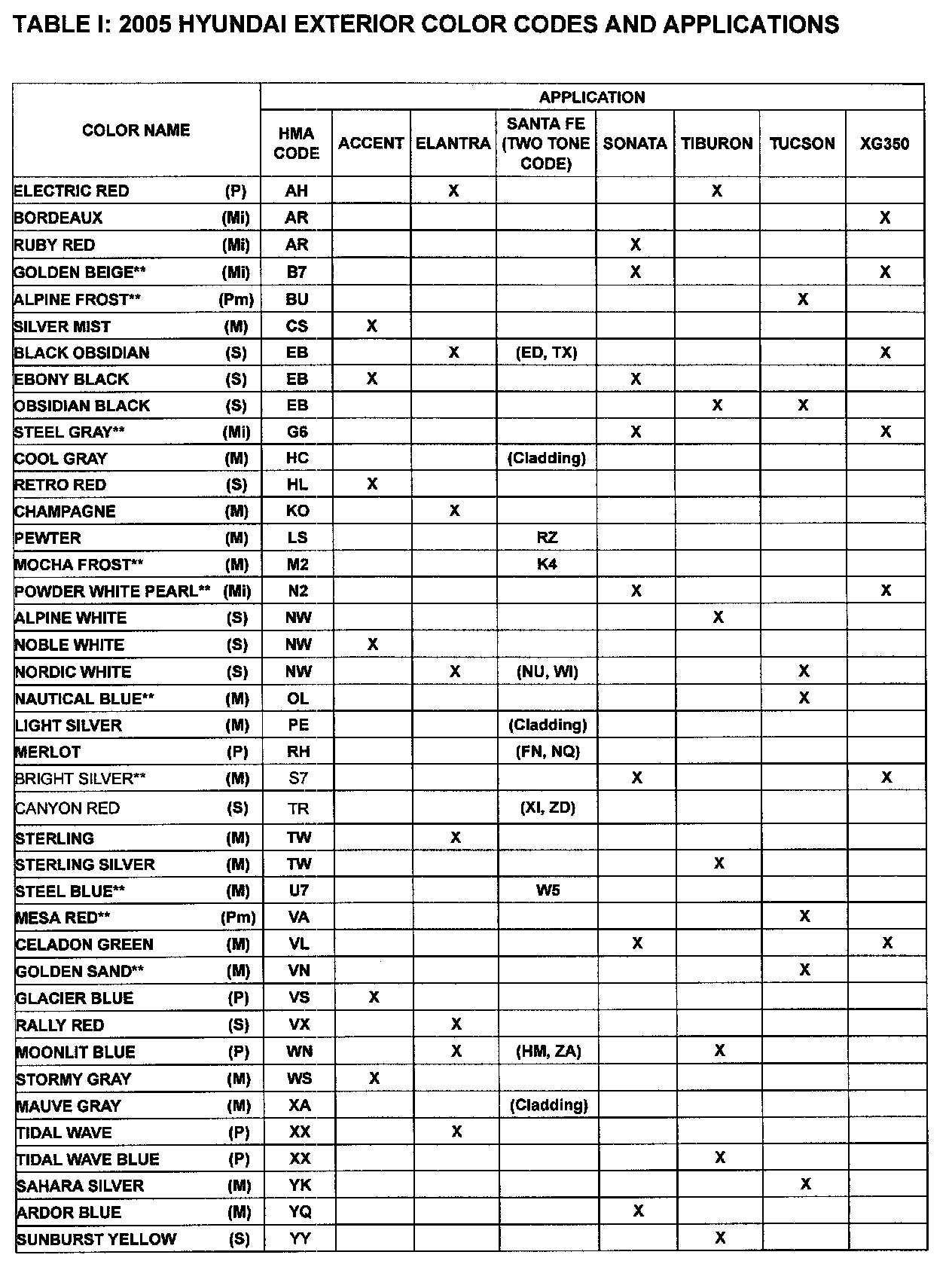

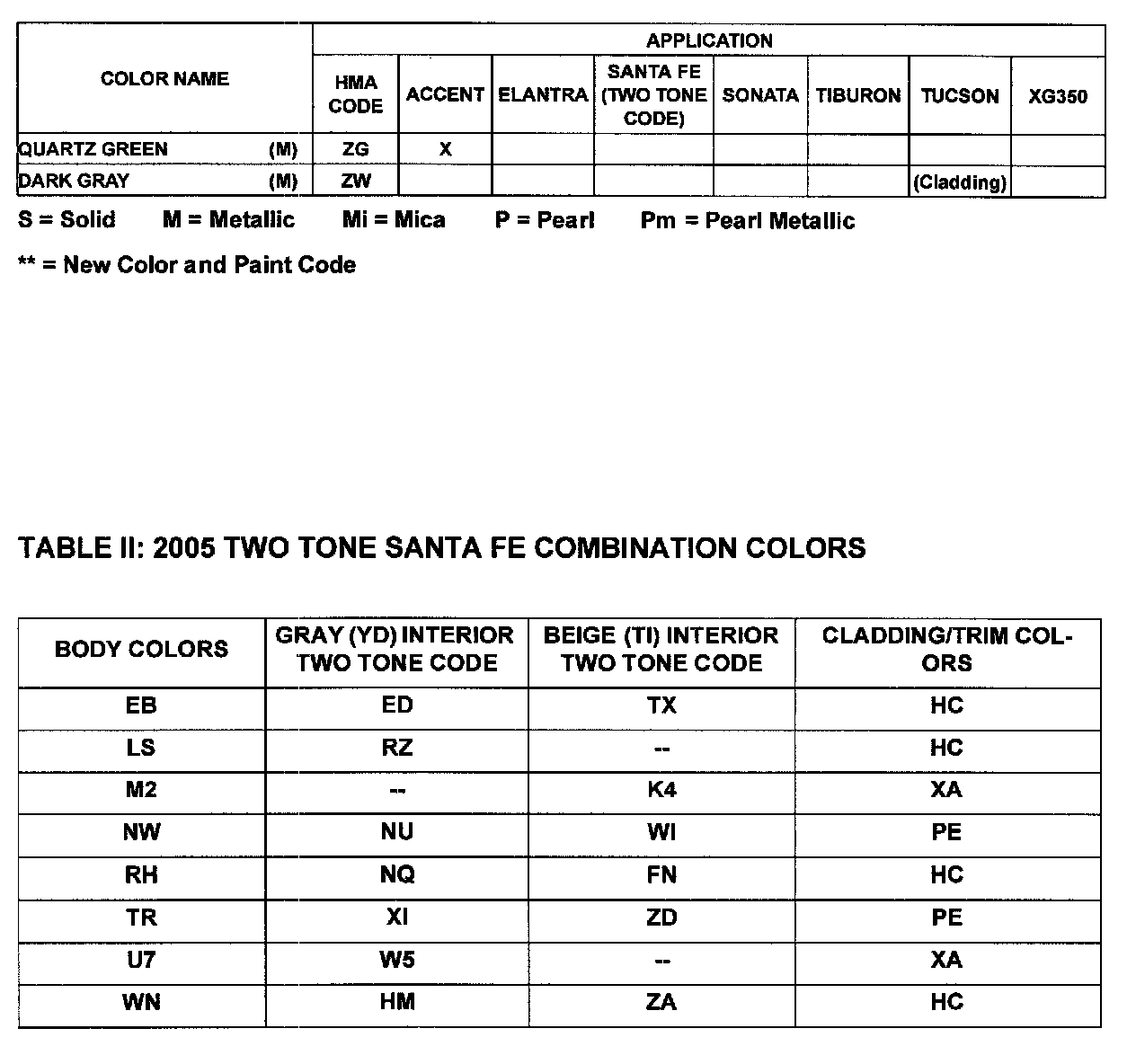

The exterior color codes are read from the FMVSS VIN label at the base of the Drivers side "B" pillar. The 4 digit color code has the exterior color followed by the interior color. For example, "EBLK" indicates a black (EB) exterior with a gray (LK) interior.
