Initial Inspection and Diagnostic Overview

DRIVER'S DOOR KEY LOCK/UNLOCK SWITCH INSPECTION
1. Remove the driver's door trim panel.

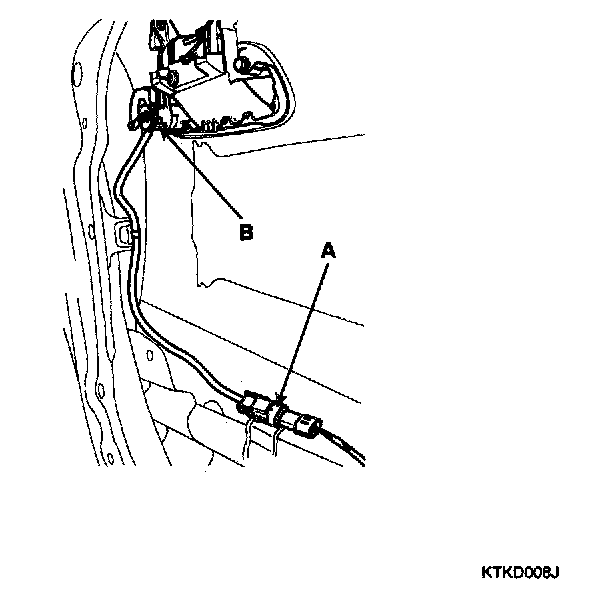

2. Disconnect the 3P connector (A) from the door lock assembly (B).

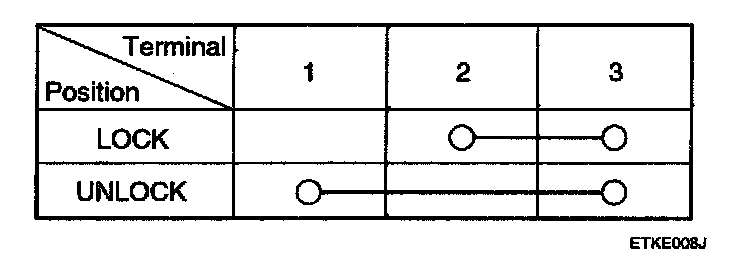

3. Check for continuity between the terminals in each switch position according to the table.
