Glove Compartment: Service and Repair

GLOVE BOX REMOVAL AND INSTALLATION

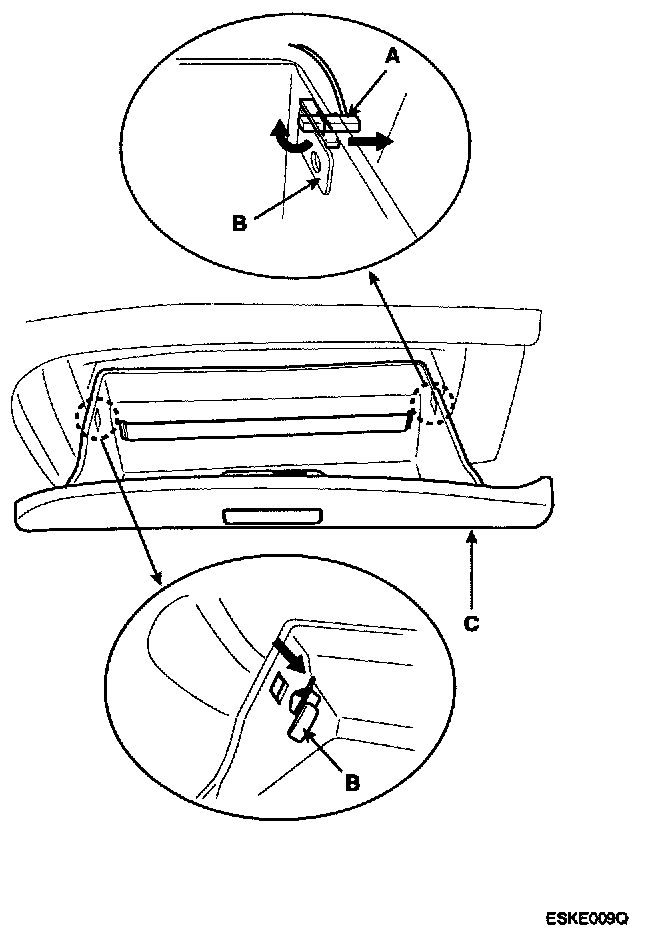

1. Disconnect the air damper wire (A) and guide (B) from the glove box (C).

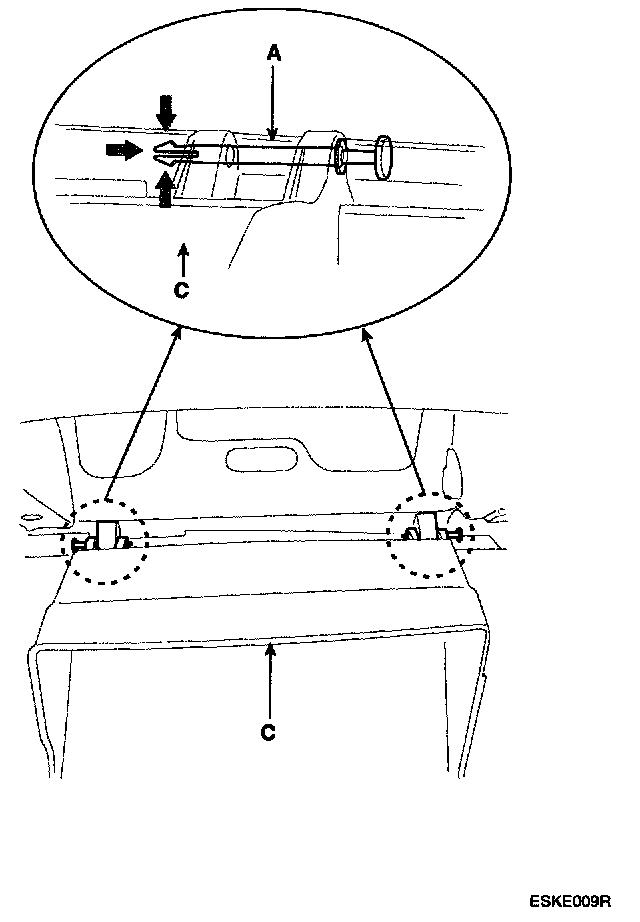

2. Disconnect the pin (A), then remove the glove box (C).

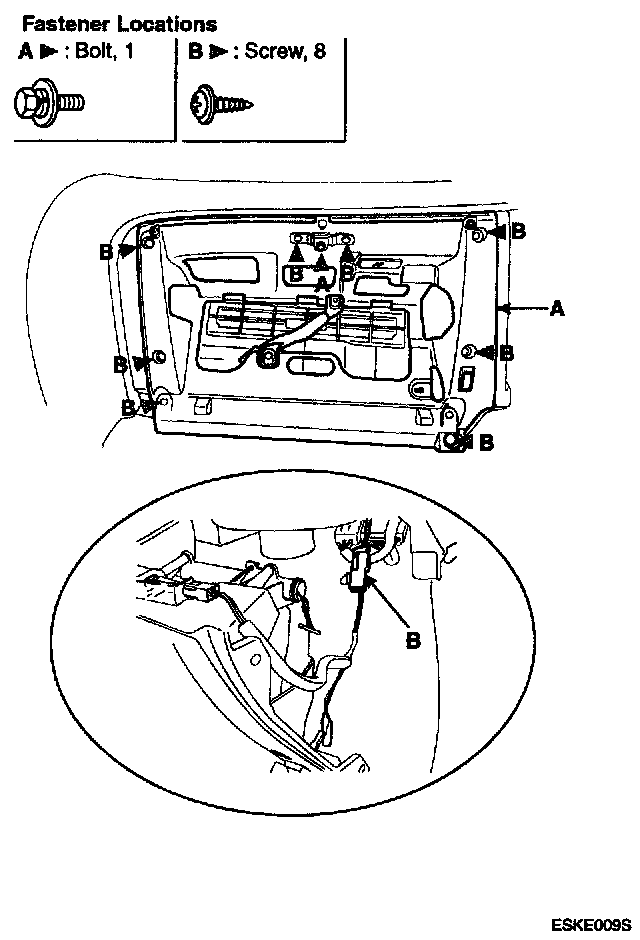

3. Remove the screws and bolt, then remove the glove box housing (A).
Disconnect the glove box lamp connector (B).






4. Installation is the reverse of removal.

NOTE: Make sure the connector is plugged in properly.
