Console: Service and Repair

REMOVAL AND INSTALLATION

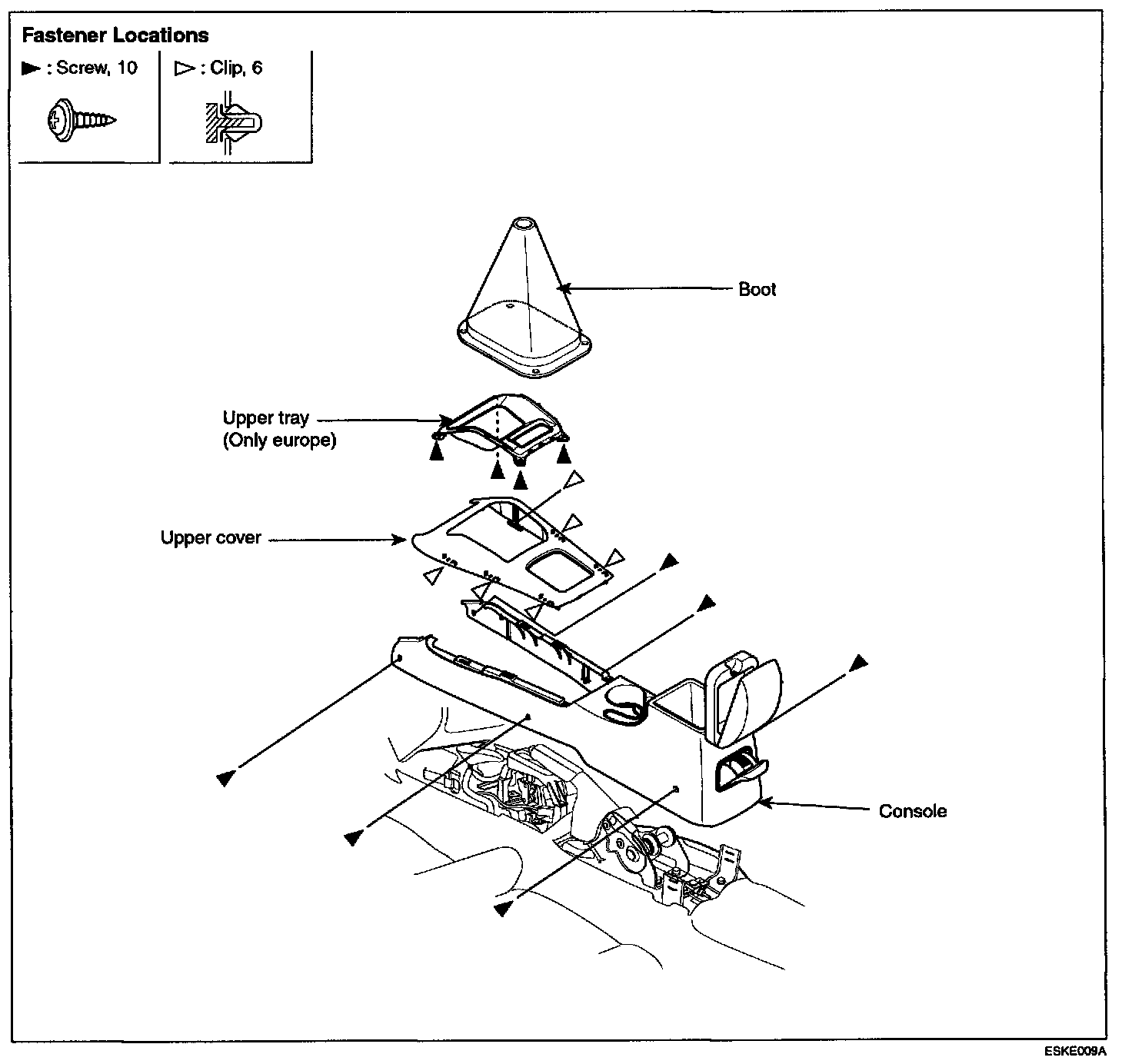

1. Remove the console assembly.

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to crash the crash pad and other parts.
- Take care not to bend the parking brake cables.

2. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
- Make sure the connectors are plugged in properly.
- Readjust the parking brake cable, if necessary.
