Front Fender Liner: Service and Repair

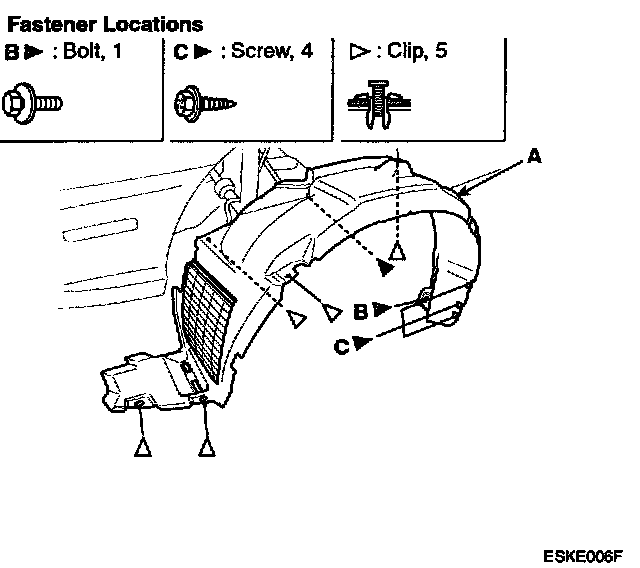

WHEEL GUARD REPLACEMENT1. Remove the wheel guard (A) as shown. Take care not to scratch the body.
2. Installation is the reverse of removal, and replace any damaged clips.
1. Remove the wheel guard (A) as shown. Take care not to scratch the body.
2. Installation is the reverse of removal, and replace any damaged clips.
