Tailgate Lock Switch Inspection (5 Doors)

TAILGATE LOCK SWITCH INSPECTION (5 DOORS)

1. Remove the tailgate trim panel.

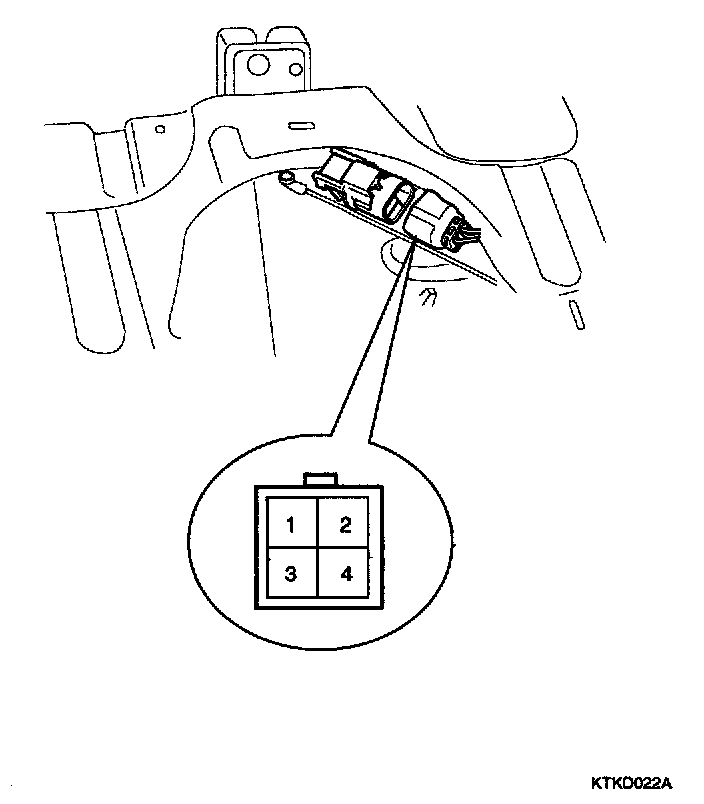

2. Disconnect the 4P connector from the actuator.

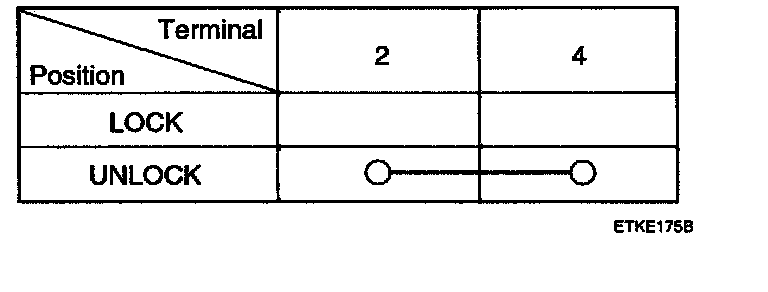

3. Check for continuity between the terminal in each switch position according to the table.
