Trunk / Liftgate: Adjustments

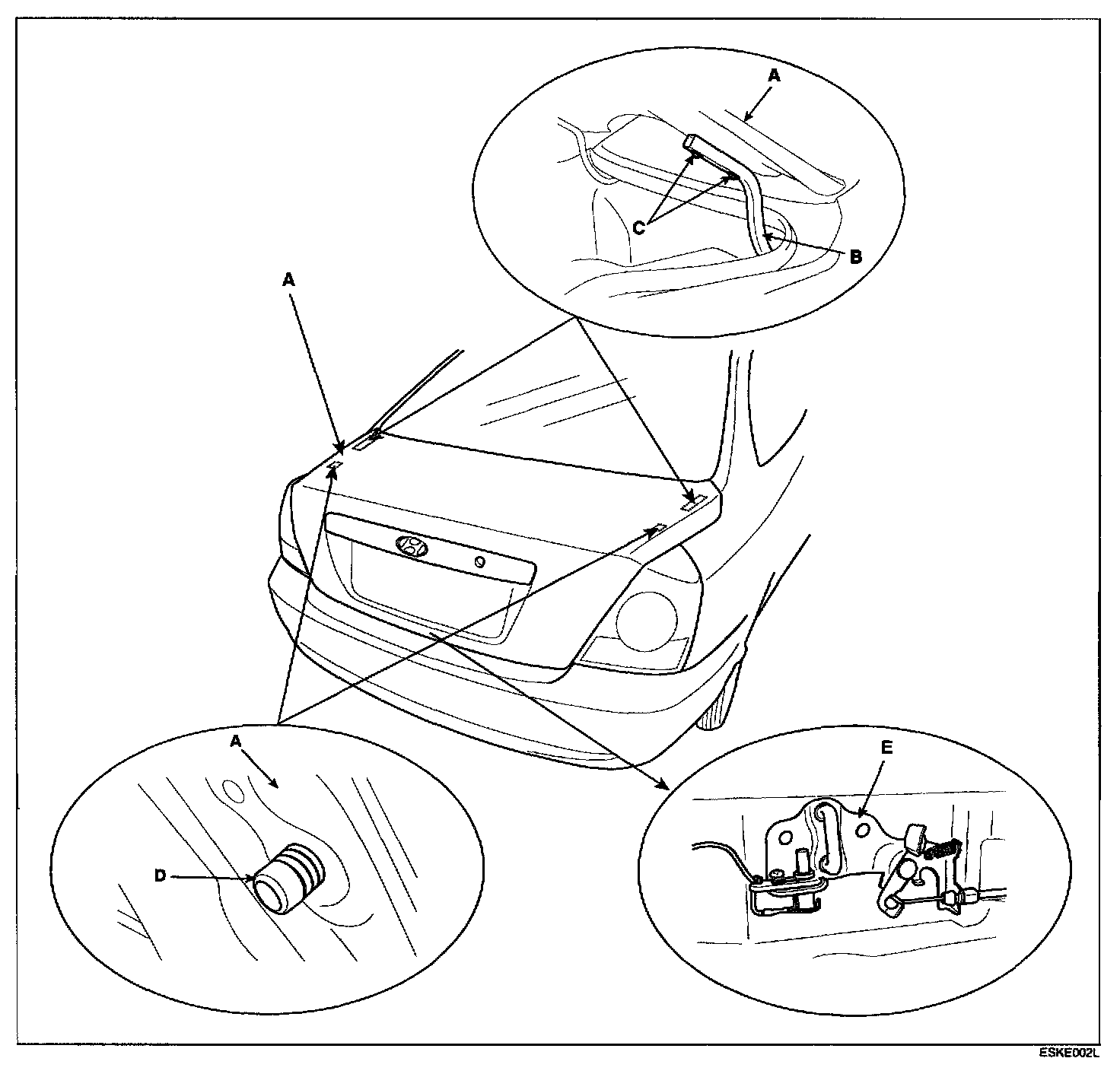

ADJUSTMENT1. Adjust the trunk lid (A) alignment.
- After loosening the trunk lid hinge (B) mounting bolt (C), adjust the trunk lid by moving it up or down, or right or left.
- Adjust the trunk lid fit by turning the trunk lid over slam bumper (D).
- Adjust the striker (E) by moving it up or down, or right or left.'
1. Tighten each bolt securely.
2. Make sure the trunk lid opens and locks securely.
