Fuel Door: Service and Repair

FUEL FILL DOOR REPLACEMENT

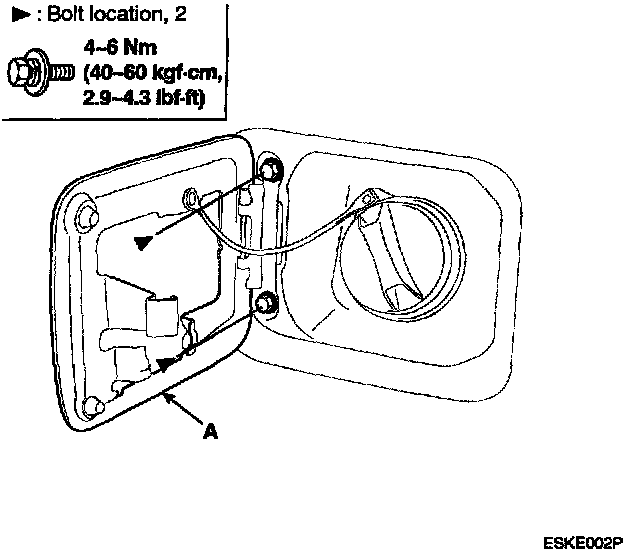

1. Loosen the bolts, then remove the fuel filler door (A).






2. Installation is the reverse of removal.

NOTE:

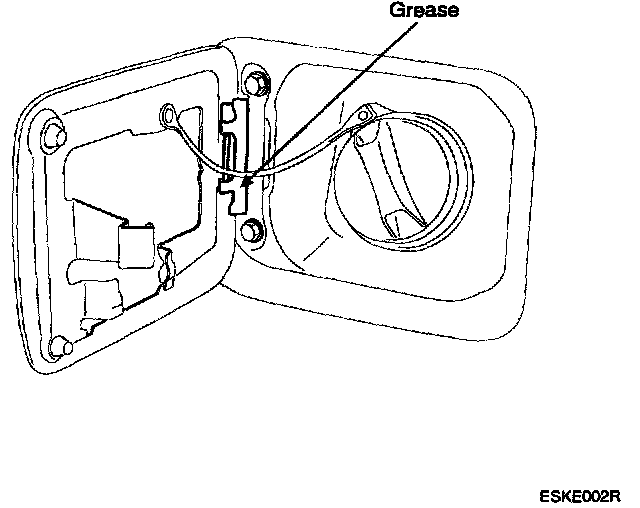

- Grease each location indicated by the arrows.
- Make sure the fuel fill door opens properly and locks securely.

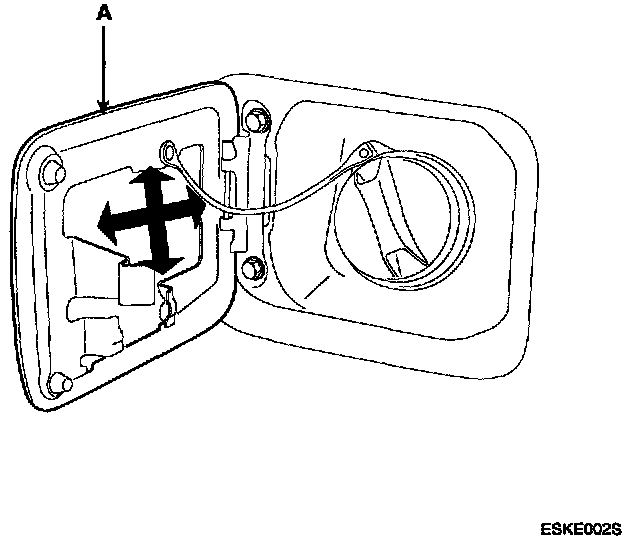

3. Check that the fuel fill door (A) fits flush against the body. If necessary, adjust it.
