Module Assembly Replacement

REAR DOOR MODULE REPLACEMENT

1. Remove the door trim.
2. Remove the glass.
3. Disconnect the power window motor connector. Detach the harness clip.

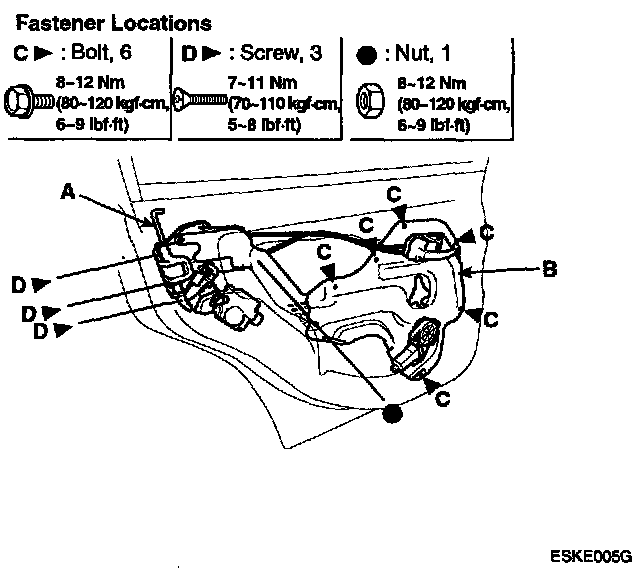

4. Disconnect the outside handle rod (A).
5. Remove the door module assembly (B).






6. Installation is the reverse of removal.
- Adjust the position of the glass as necessary.
