Rear Door Panel: Service and Repair

REMOVE REAR DOOR TRIM

NOTE:
- Take care not to scratch the door trim and other parts.
- Put on gloves to protect your hands.

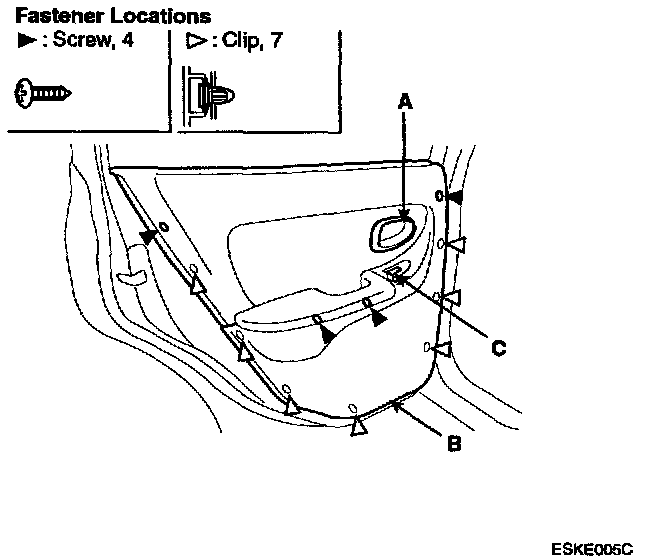

1. Remove the inside handle cover (A).
2. Loosen the door trim (B) mounting screws. Release the clips that hold the door trim, then remove the door trim by pulling it upward. Disconnect the power window switch connector (C).






3. Remove the door trim seal.
4. Installation is the reverse of removal, make sure the connectors and courtesy light bulb socket are plugged in properly.
