Speaker Replacement

SPEAKER REPLACEMENT

1. Remove the door trim.

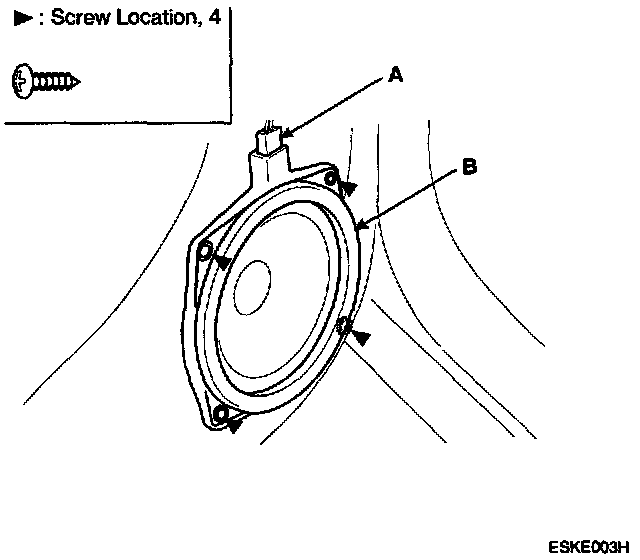

2. Disconnect the speaker connector (A), and remove the speaker (B).






3. Installation is the reverse of removal.
