Home >> Hyundai >> 2005 >> Elantra L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Testing and Inspection

Speaker: Testing and Inspection

INSPECTION

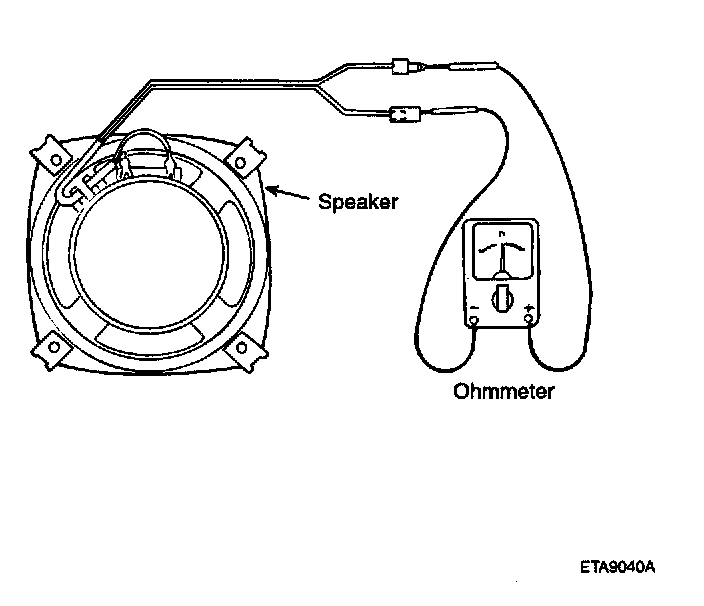

1. Check the speaker with an ohmmeter. If an ohmmeter indicates the correct impedance of the speaker when checking between the speaker (+) and speaker (-) of the same channel, the speaker is OK.




2. It a clicking sound is emitted from the speaker when the ohmmeter is connected to the speaker terminals, the speaker is OK.
