Removal and Replacement

AUDIO ASSEMBLY REMOVAL AND INSTALLATION

1. Remove the instrument facia panel.

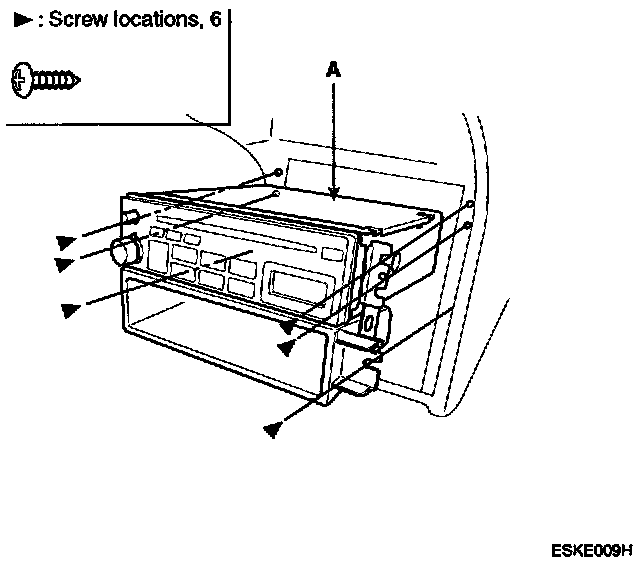

2. Loosen the screws.
3. Disconnect the audio connector and antenna cable, then remove the audio assembly (A).






4. Installation is the reverse of removal.

NOTE: Make sure the connector is plugged in properly.
