Procedures

REMOVAL
1. Disconnect the negative (-) battery terminal.

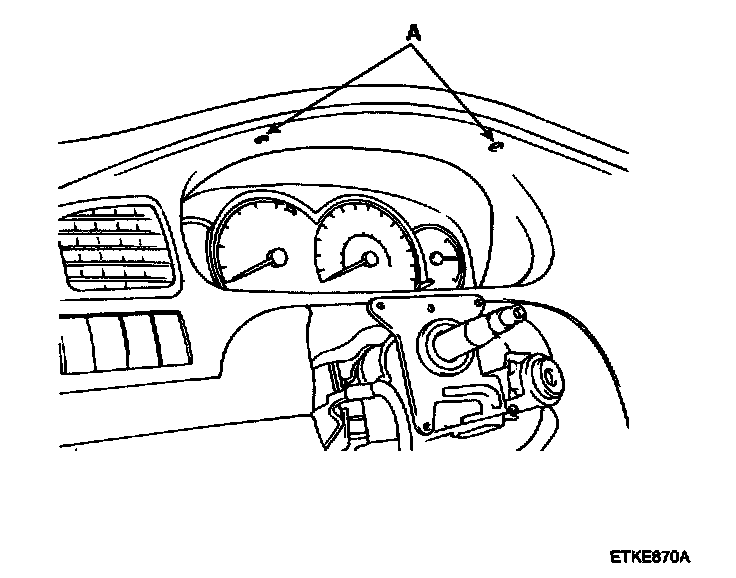

2. Remove the 2 screws (A) holding the instrument facia panel.
3. Open the ashtray then remove the ashtray assembly after pushing the plate down.

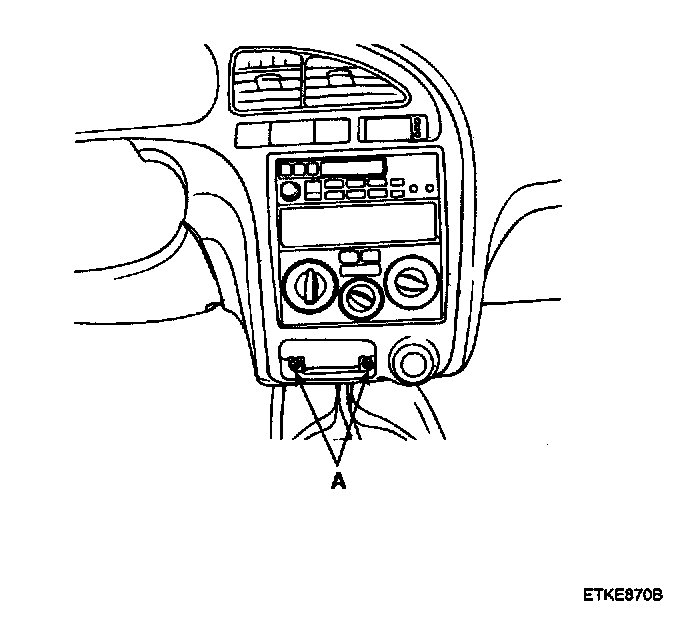

4. Remove the 2 screws (A) after removing the ashtray.
5. Disconnect the connectors from the instrument facia panel.

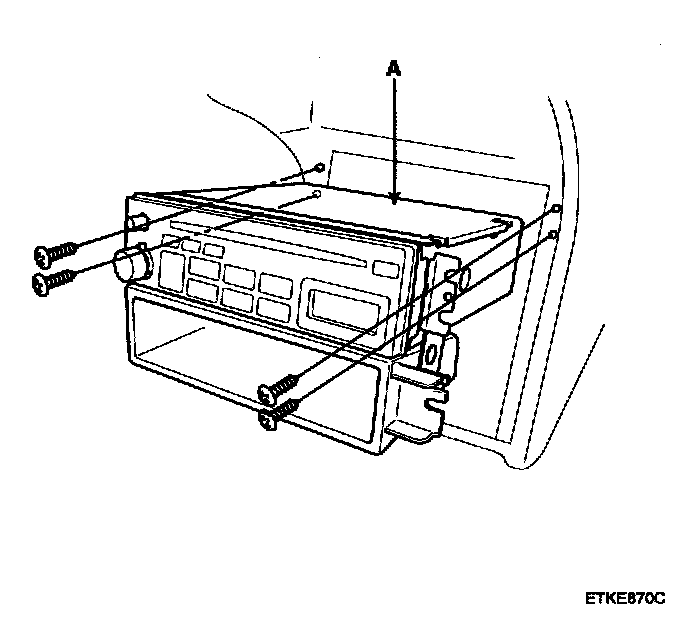

6. Remove the audio unit (A) after removing 4 screws.
7. Installation is the reverse of removal.

CD AUTO CHANGER
1. Disconnect the negative(-) battery terminal.
2. Remove the CD auto changer from the left side of trunk room, after removing 4 bolts.
3. Installation is the reverse of removal.
