Trunk/Liftgate Sensor/Switch (For Alarm): Testing and Inspection

TRUNK ROOM LAMP SWITCH
1. Disconnect the negative (-) battery terminal.

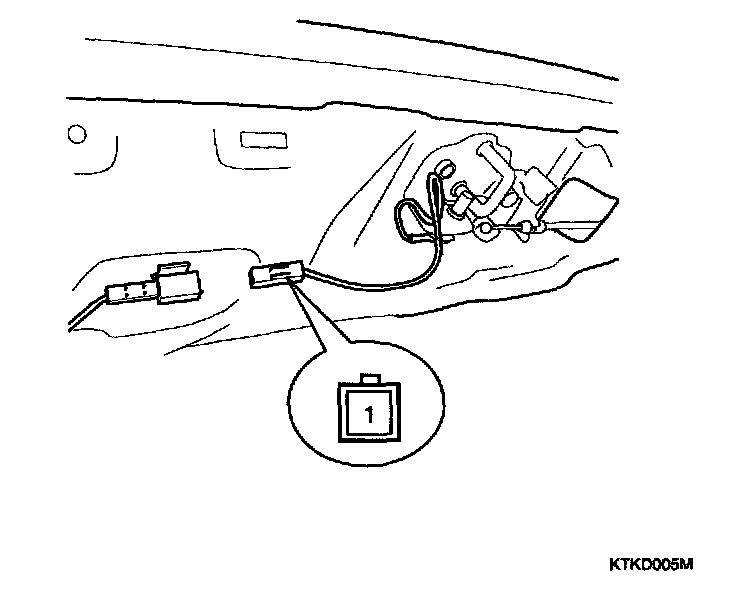

2. After opening the trunk, disconnect the 1 P connector from the rear harness.

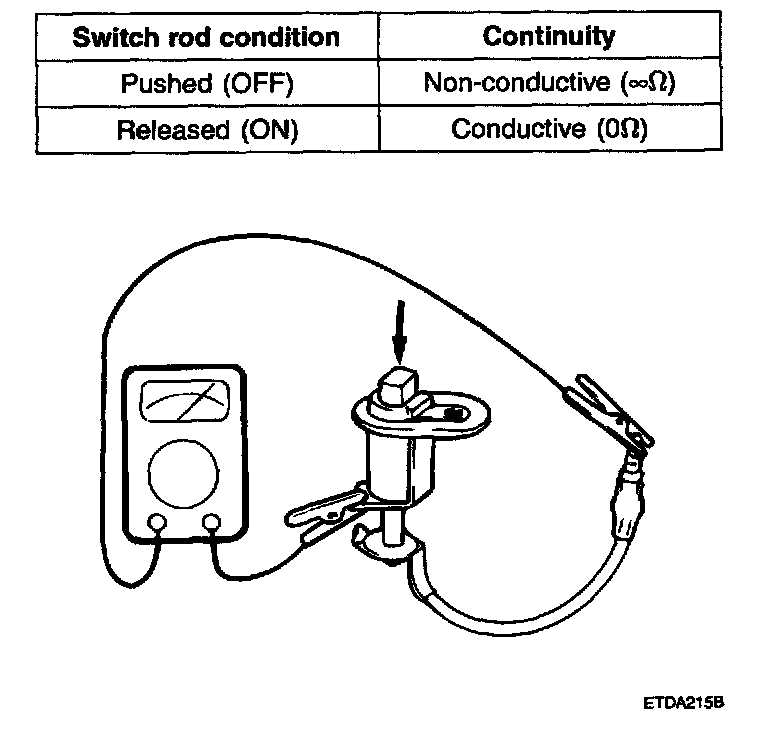

3. Check for continuity between the terminal and body while pushing the rod.
