Electronic Time and Alarm Control Module

ETACS MODULE INPUT SIGNAL TEST

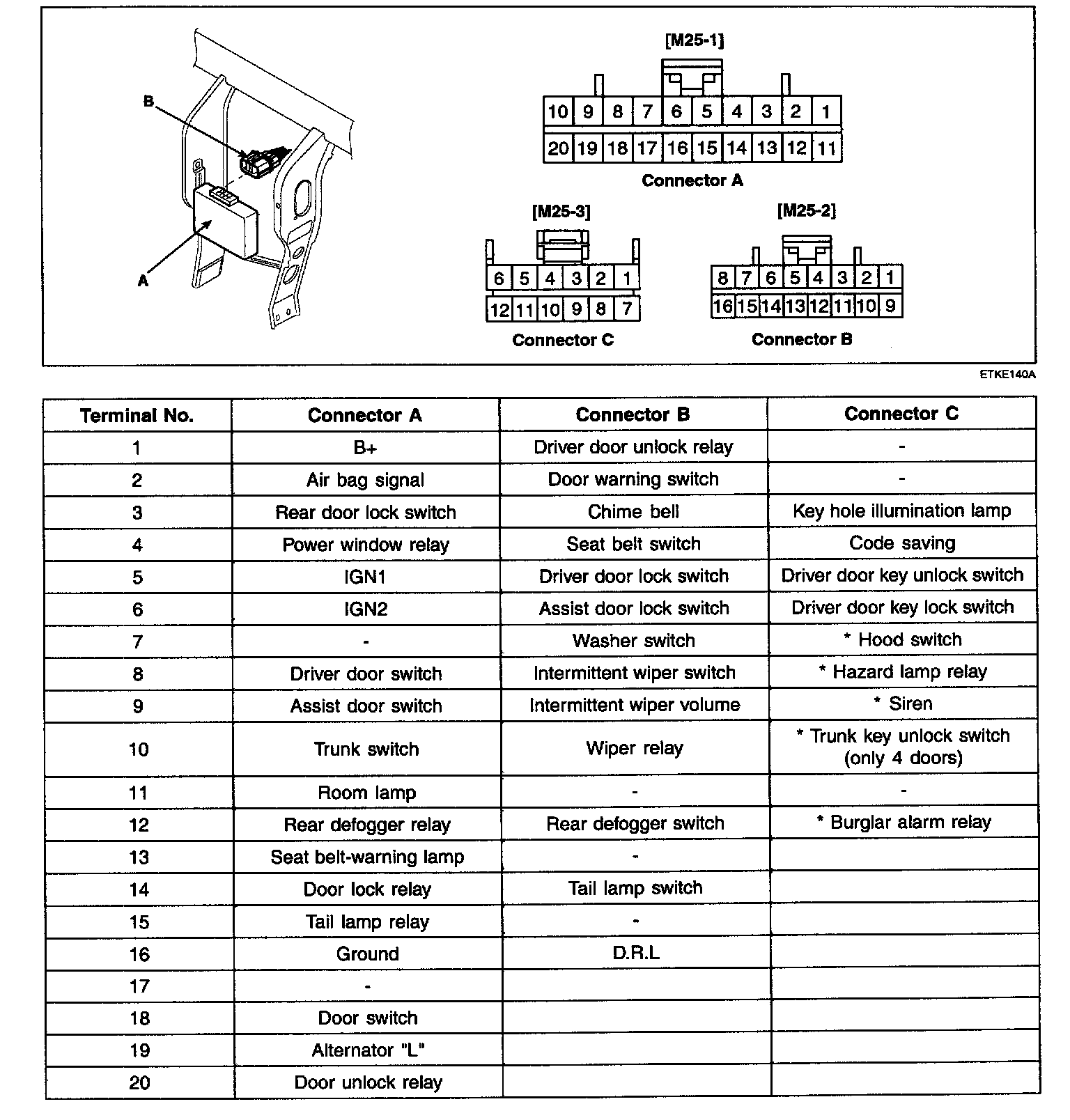

1. Disconnect the wire connector(B) from the ETACS module(A).
2. Inspect the connector(B) on wire harness side as shown.

NOTE: only keyless entry & Burglar alarm system.

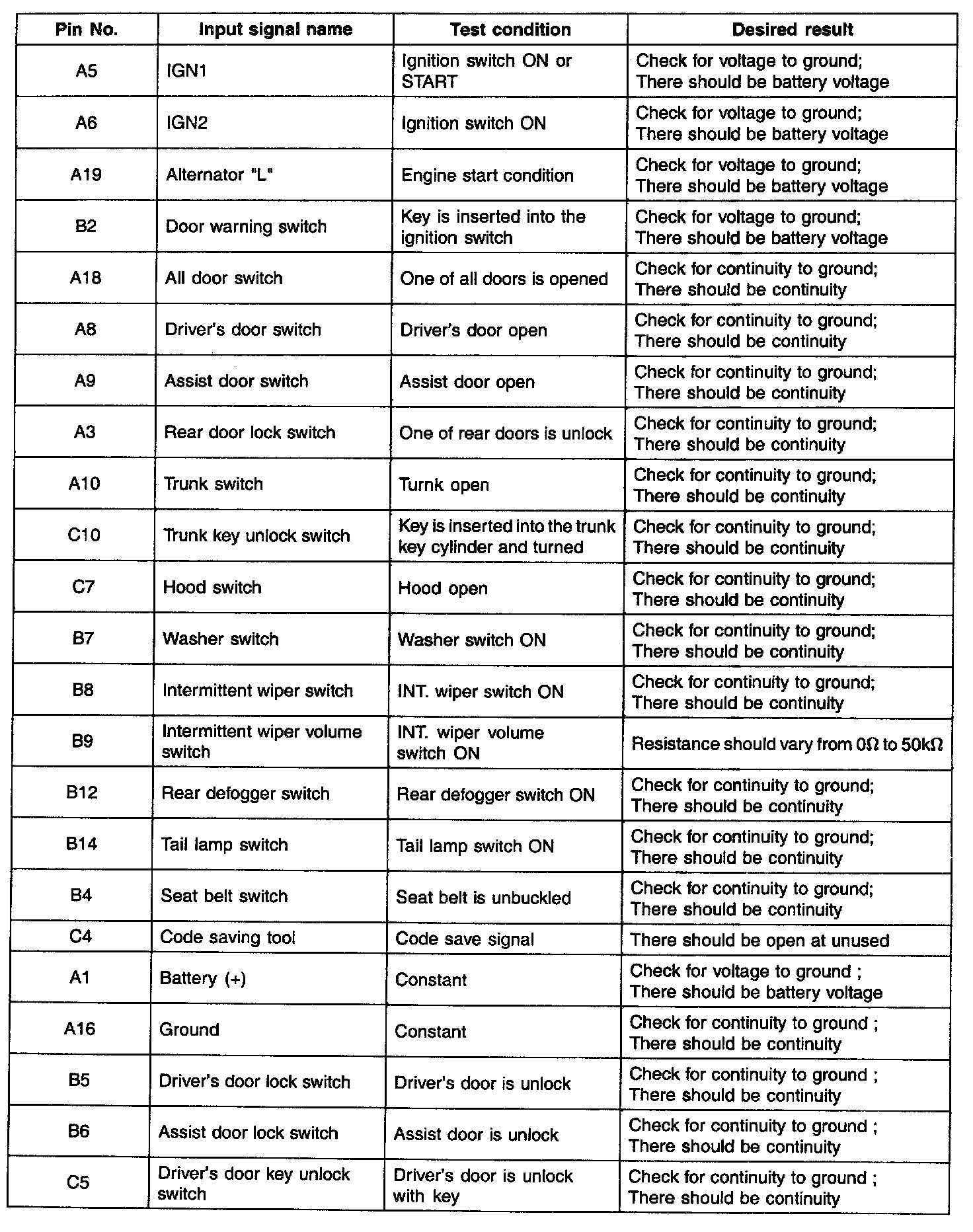

ETACS Module Input Signal Test Part 1:

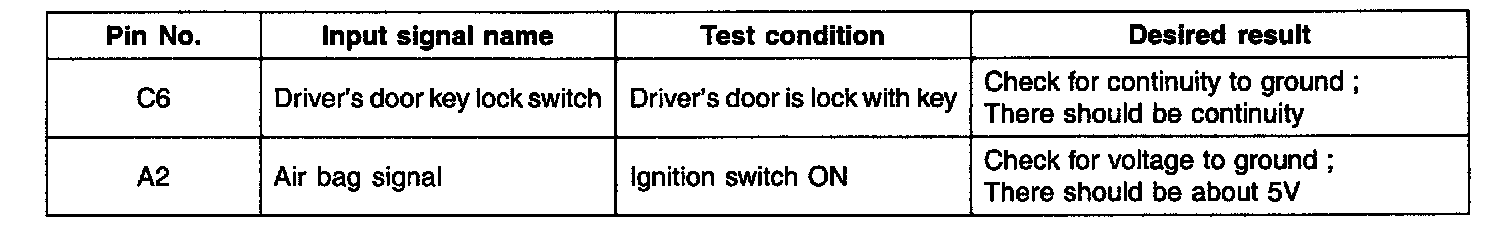

ETACS Module Input Signal Test Part 2:

ETACS MODULE INPUT SIGNAL TEST
