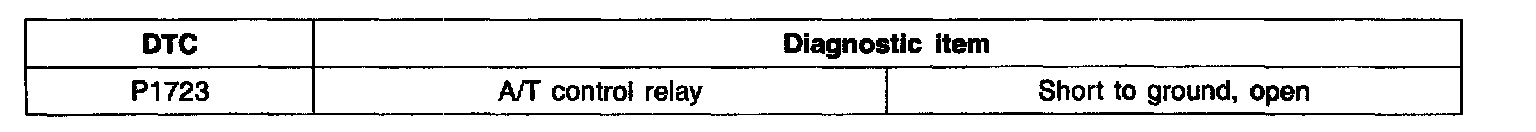

P1723

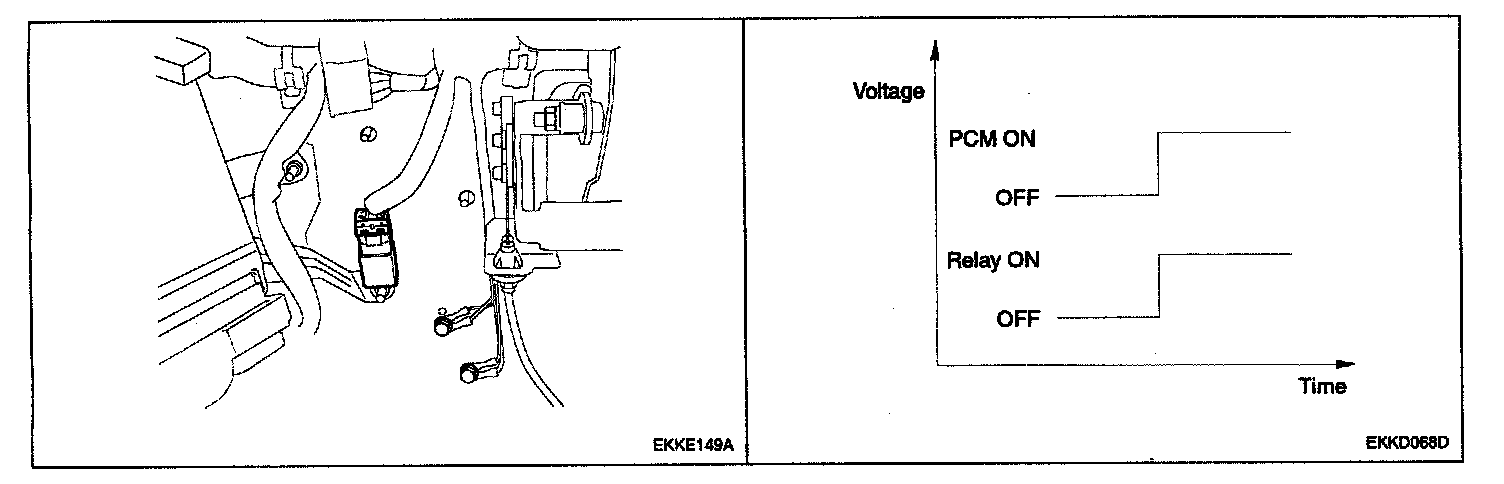

DESCRIPTION
A/T control relay is the power supply to the solenoid valve (UD, OD, DCC, 2ND, LR solenoid).
A/T control relay is holding at the 3rd gear by the short circuit when operated of the fail-safe.

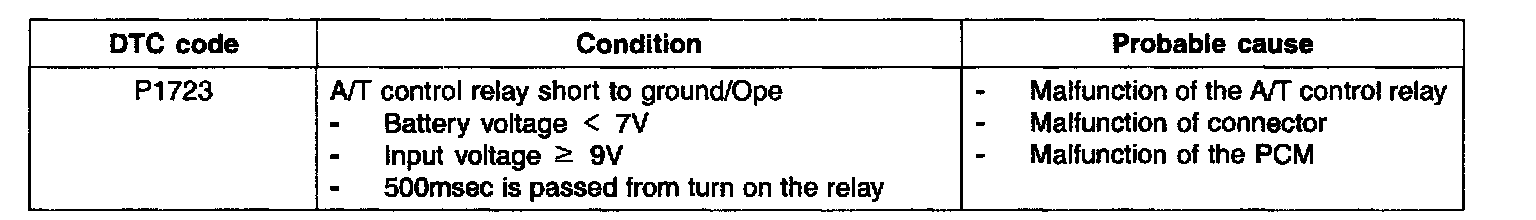

DTC DETECTING CONDITION

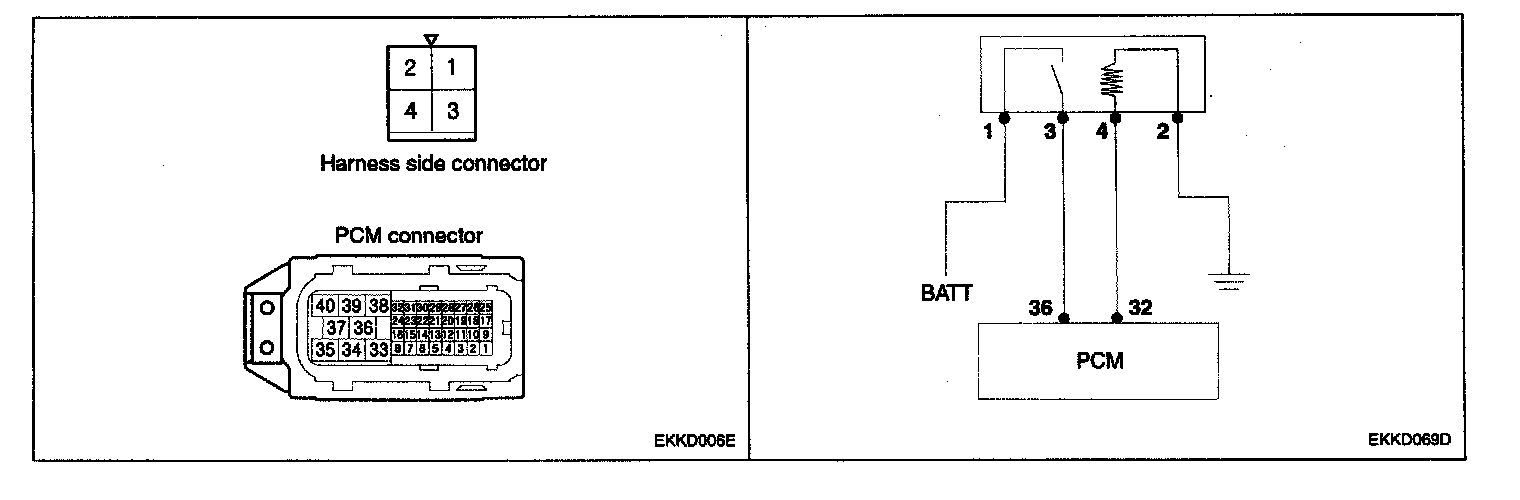

SCHEMATIC DIAGRAM

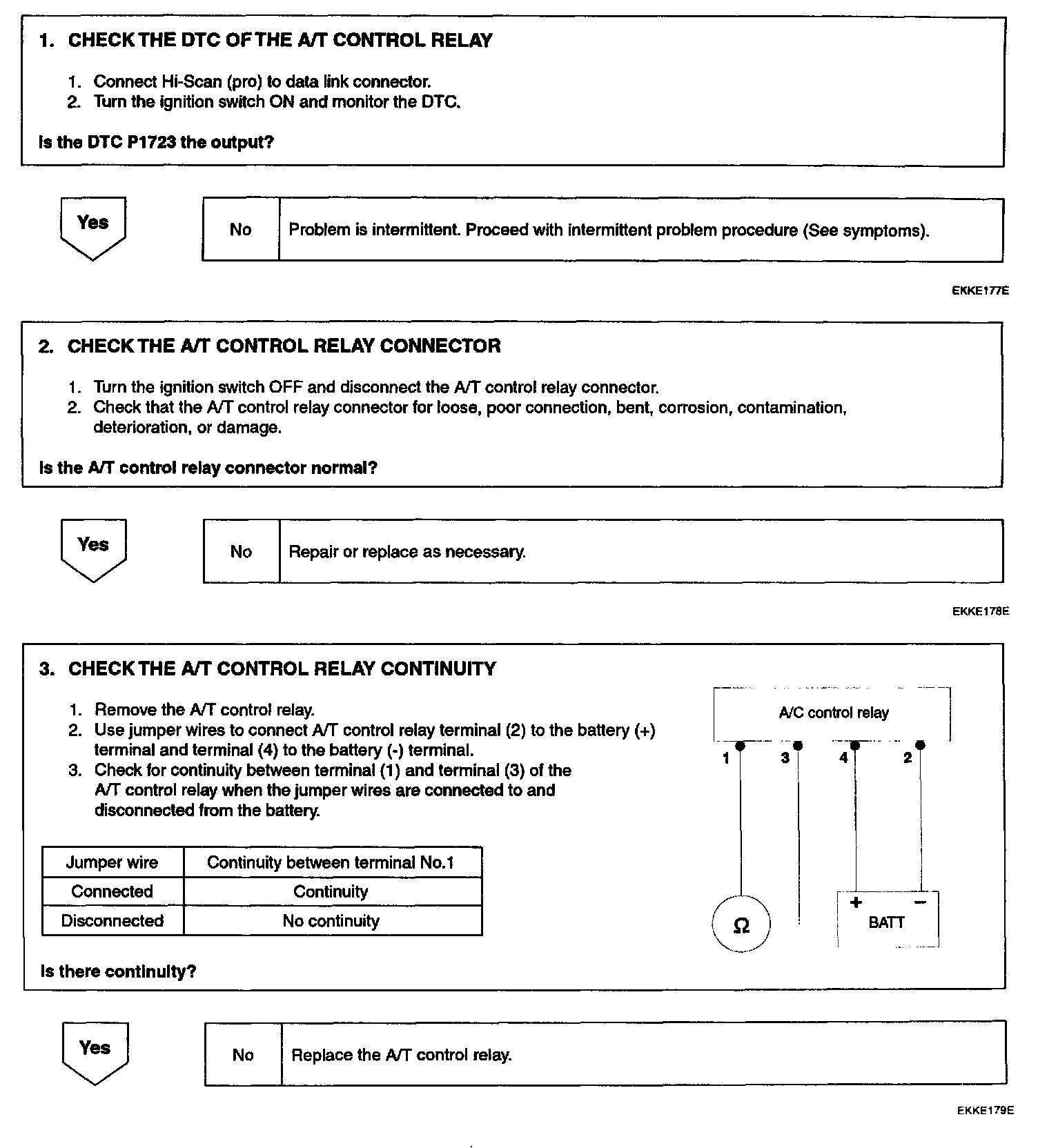

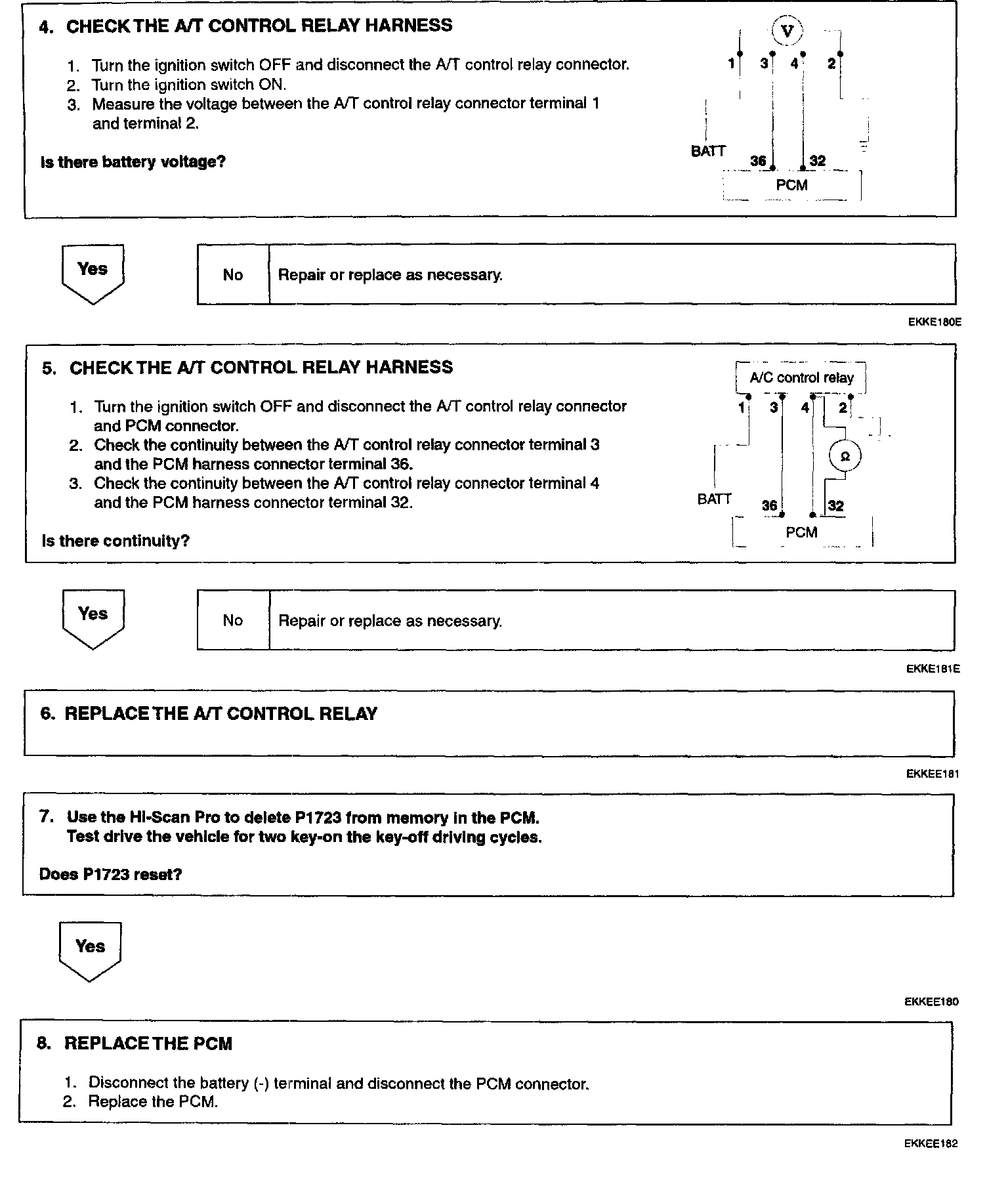

INSPECTION PROCEDURES
