P0750

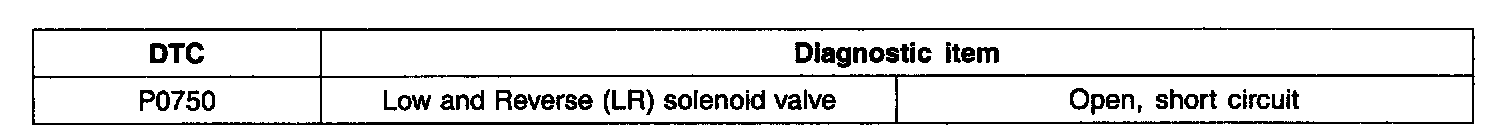

DESCRIPTION





The LR annulus gear and overdrive planetary carrier are locked to the LR brake when the LR solenoid operation
The LR solenoid is operated at the transaxle range switch "P", "R", "N" and 1st gear.

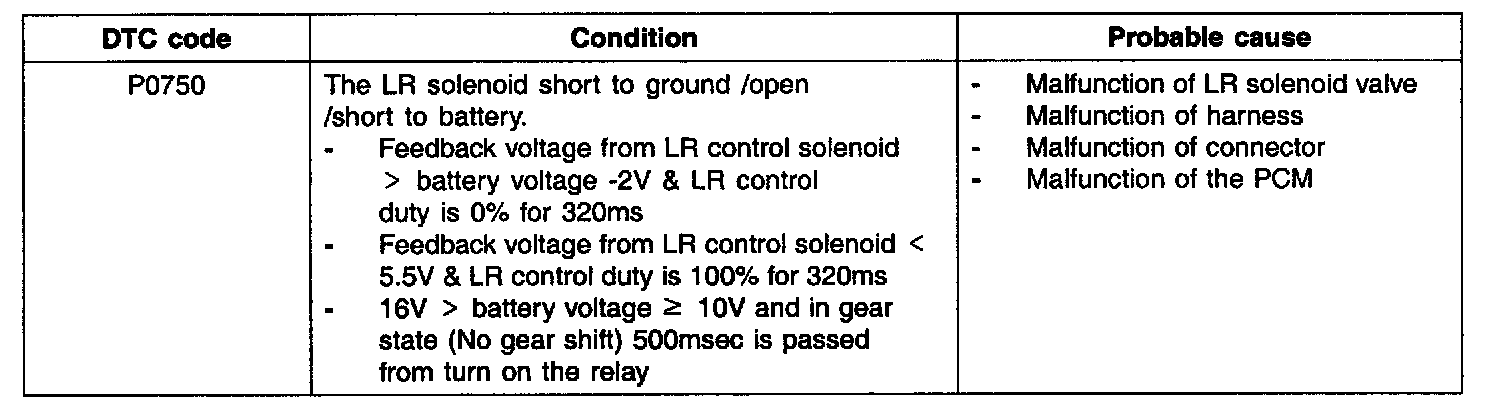

DTC DETECTING CONDITION

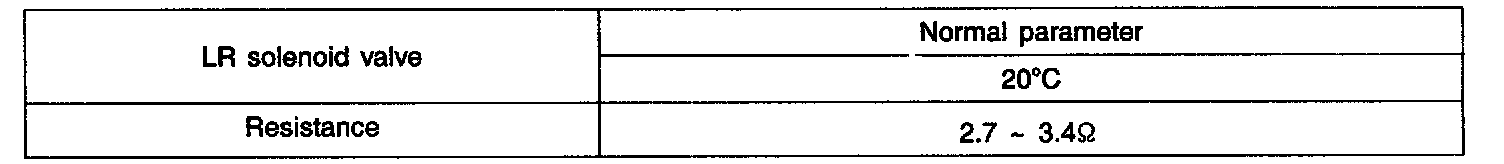

SPECIFICATIONS

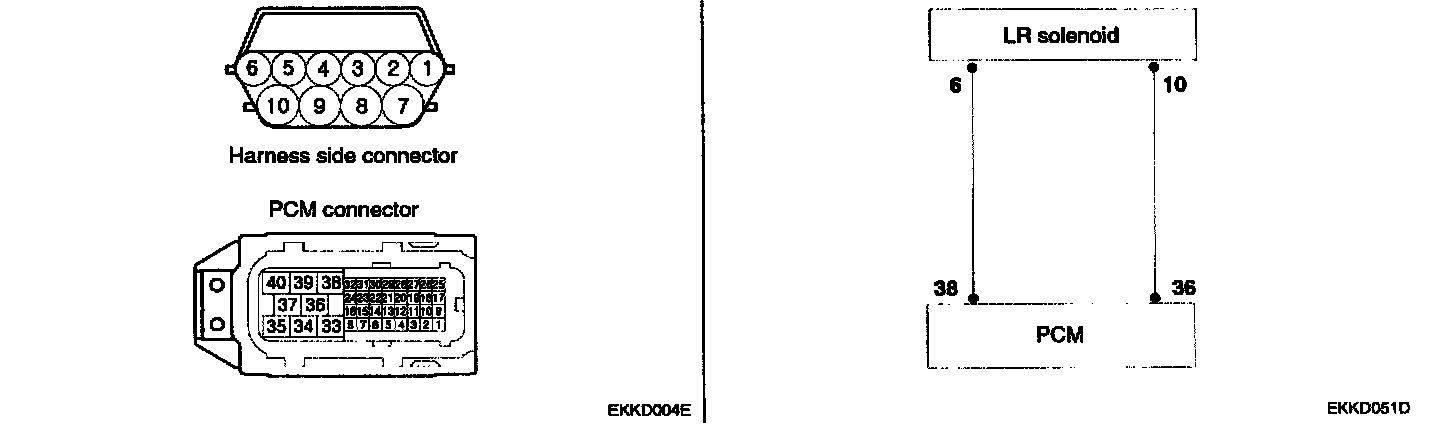

SCHEMATIC DIAGRAM

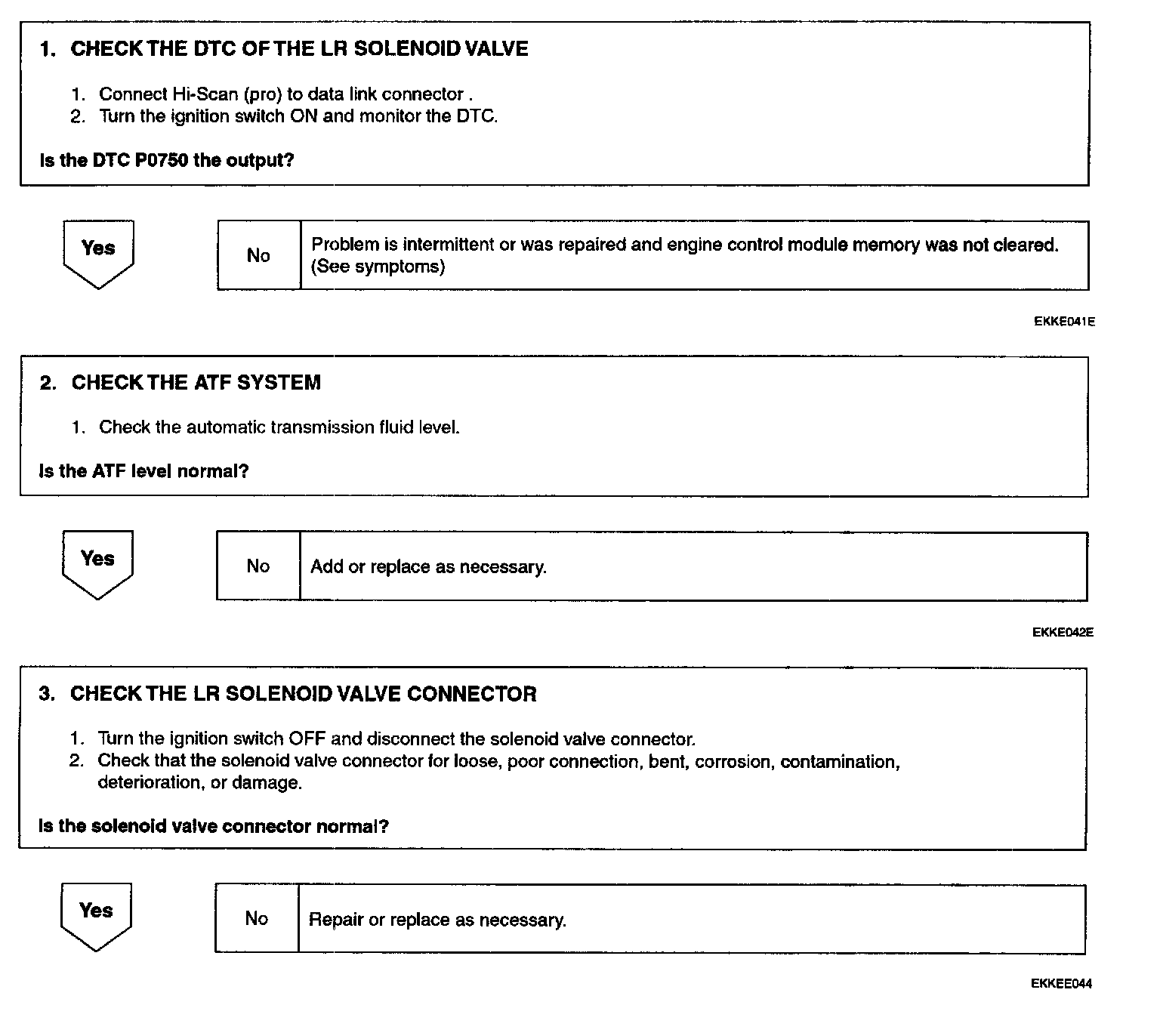

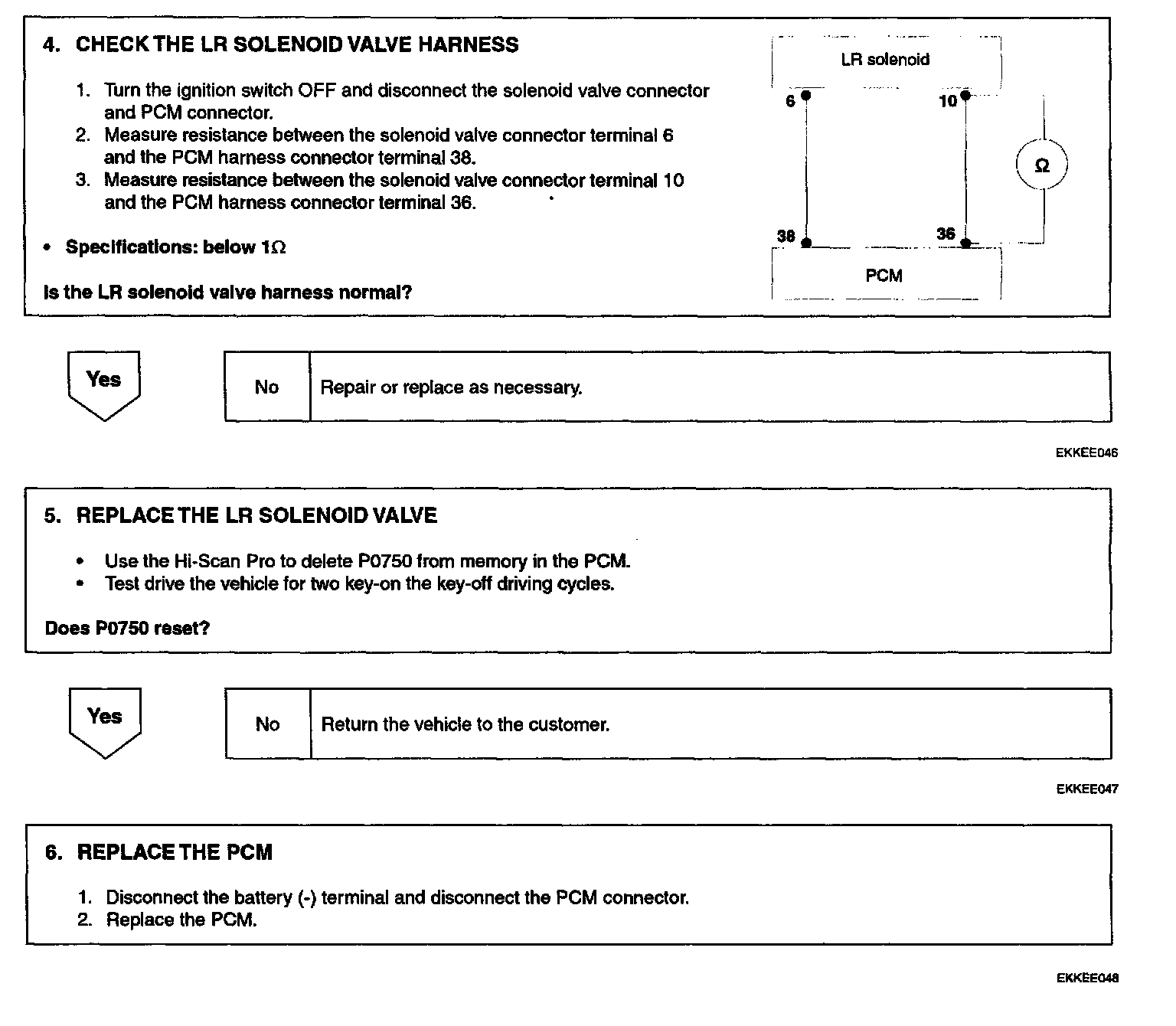

INSPECTION PROCEDURES
