Air Conditioning

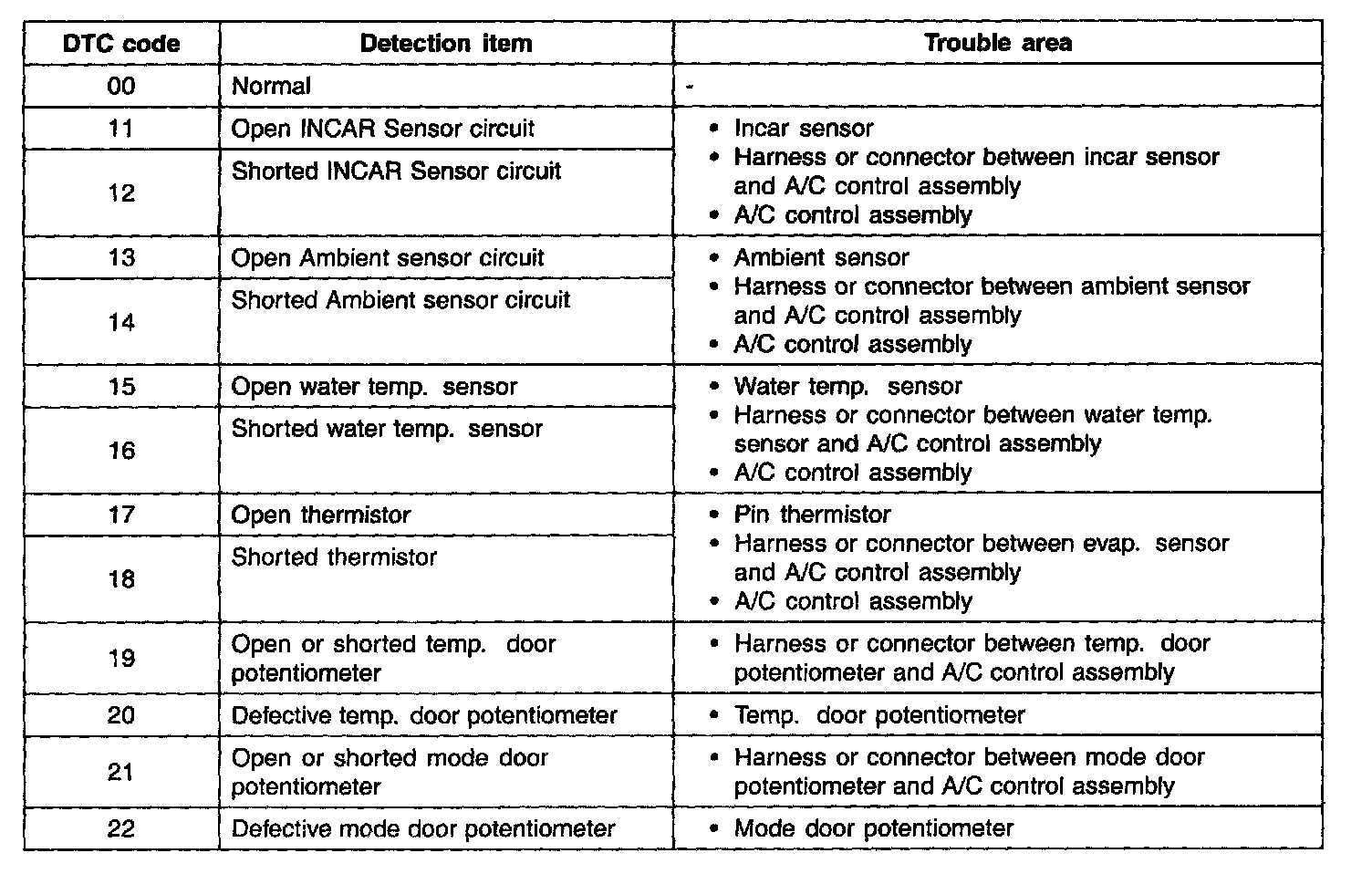

DTC Chart

00-22:




If malfunction code is displayed during the DTC check check the circuit listed for that code in the table.
