B1483

DTC B1483 DAB 2ND STAGE SHORT TO GROUND

DESCRIPTION
The squib circuit consists of the SRSCM, clock spring and DAB.

It causes the SRS to deploy when the SRS deployment conditions are satisfied. The above DTC is recorded when a short to ground is detected in the squib circuit.

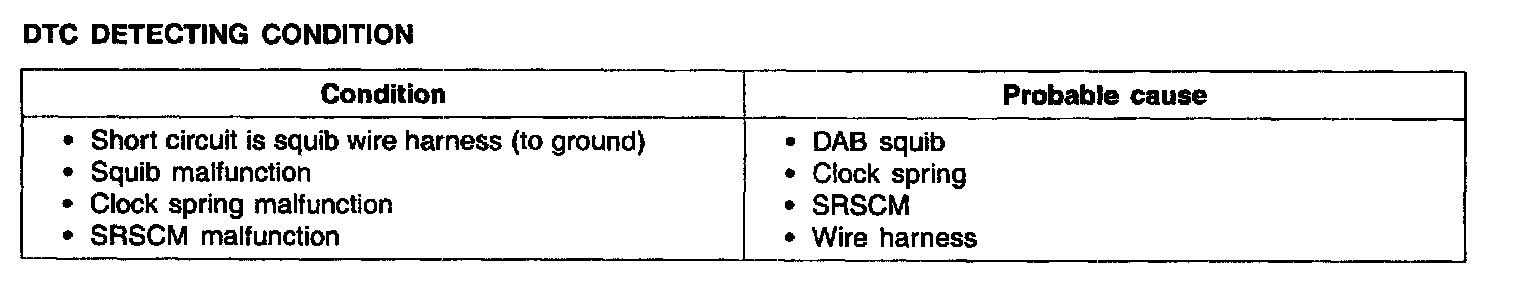

DTC Detecting Condition:

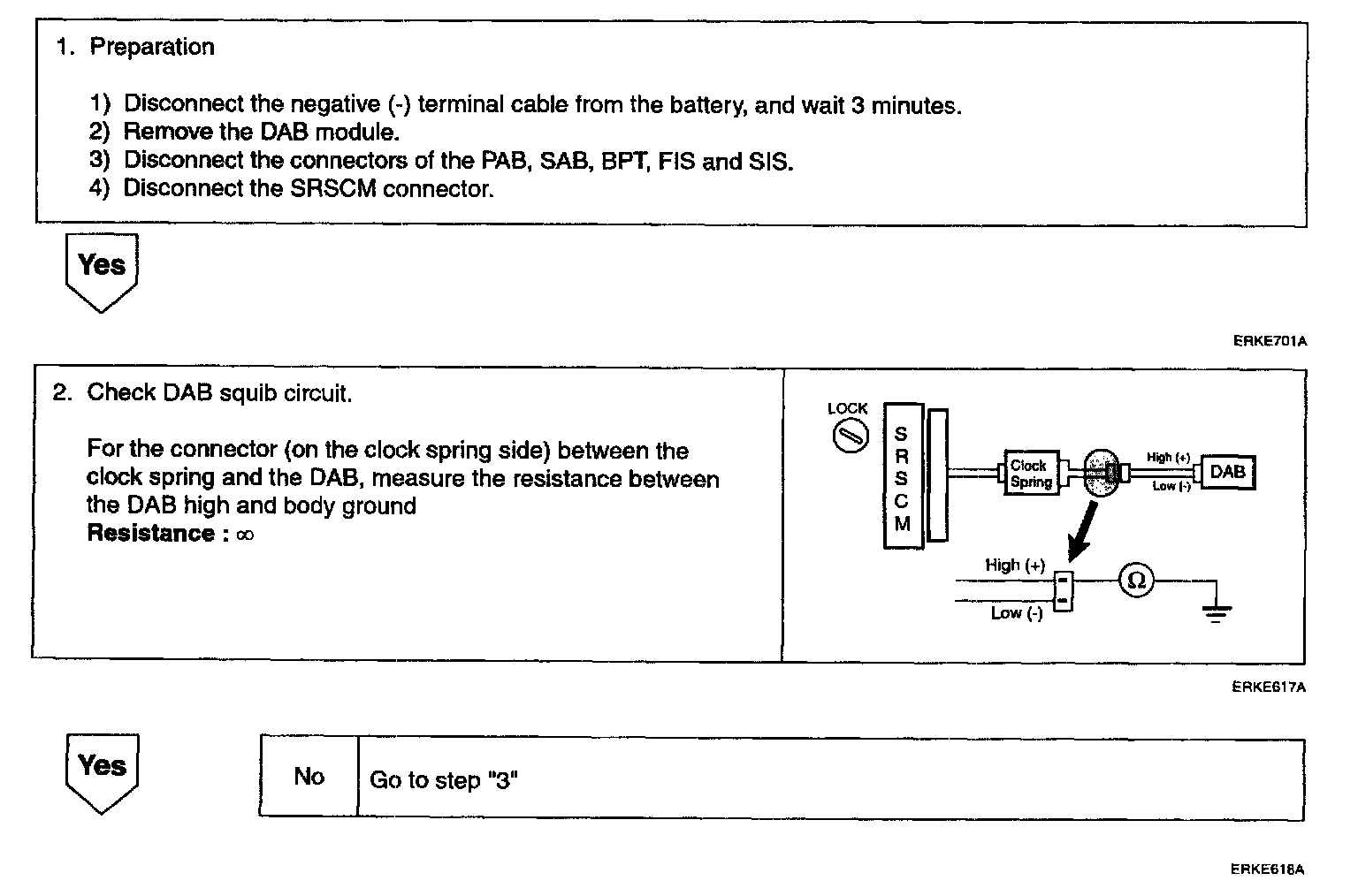

Steps 1 - 2:

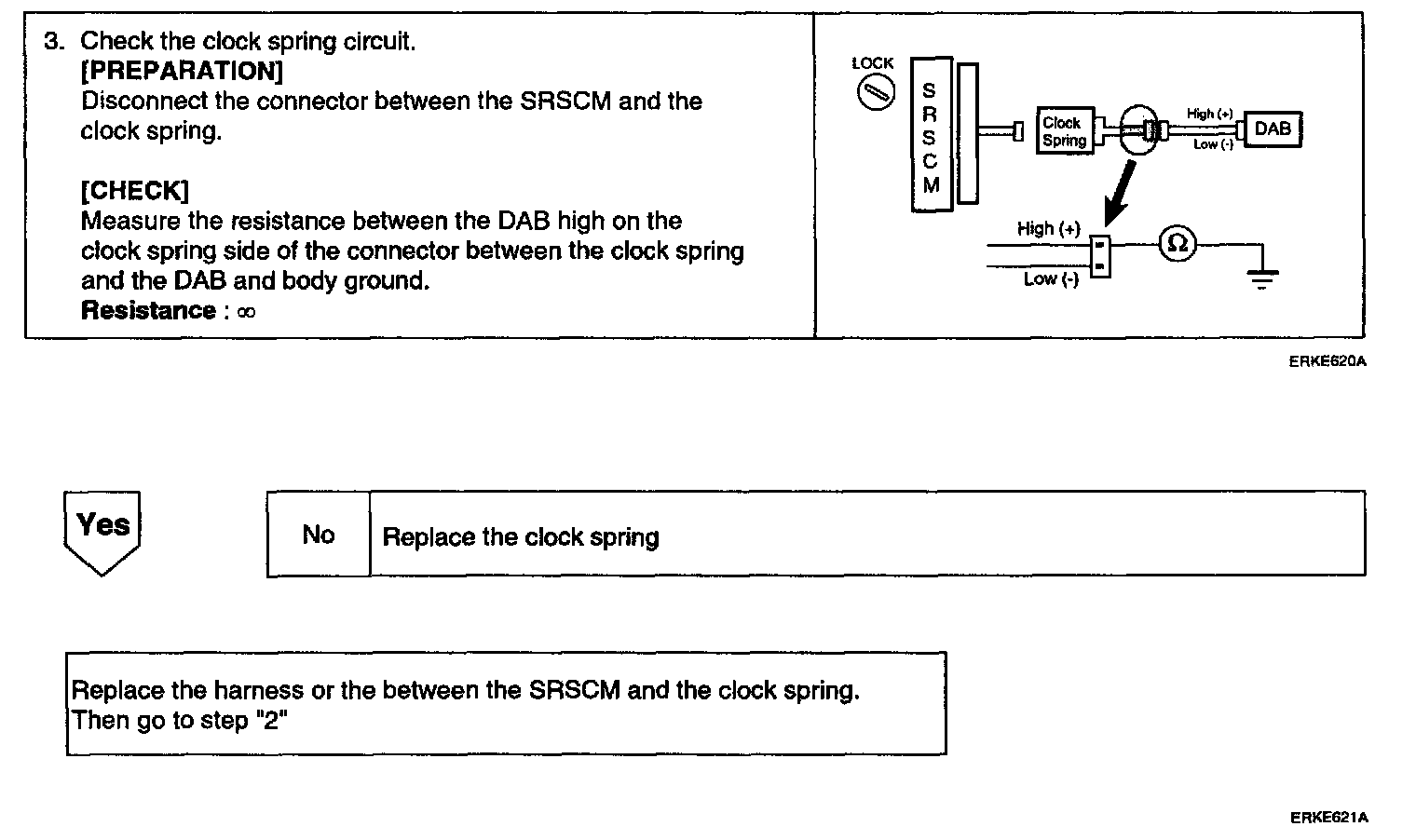

Step 3:

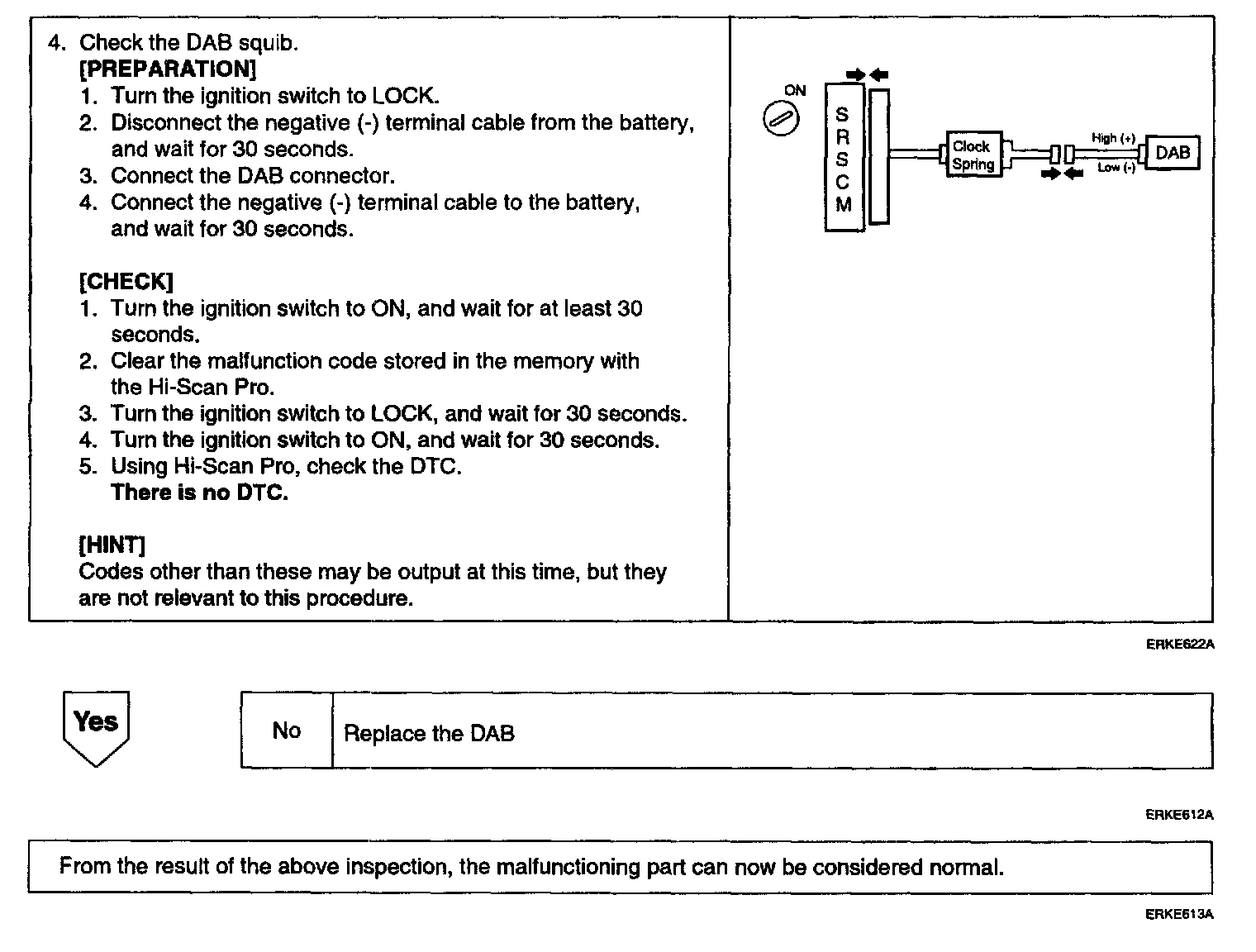

Step 4:

INSPECTION PROCEDURES
