B1447

B1447 PASSENGER OCCUPANT CLASSIFICATION ECU DEFECT

DESCRIPTION
The release system for the airbag consists of the SRSCM and passenger OC sensor. The above DTCs are recorded when a defect or communication error of the passenger OC sensor is detected in the OC sensor circuit.

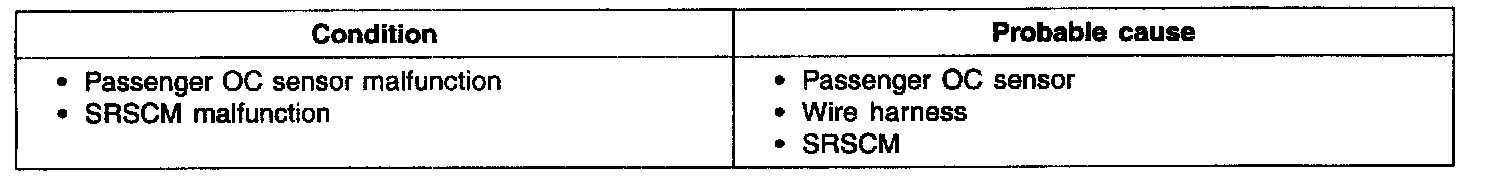

DTC Detecting Condition:

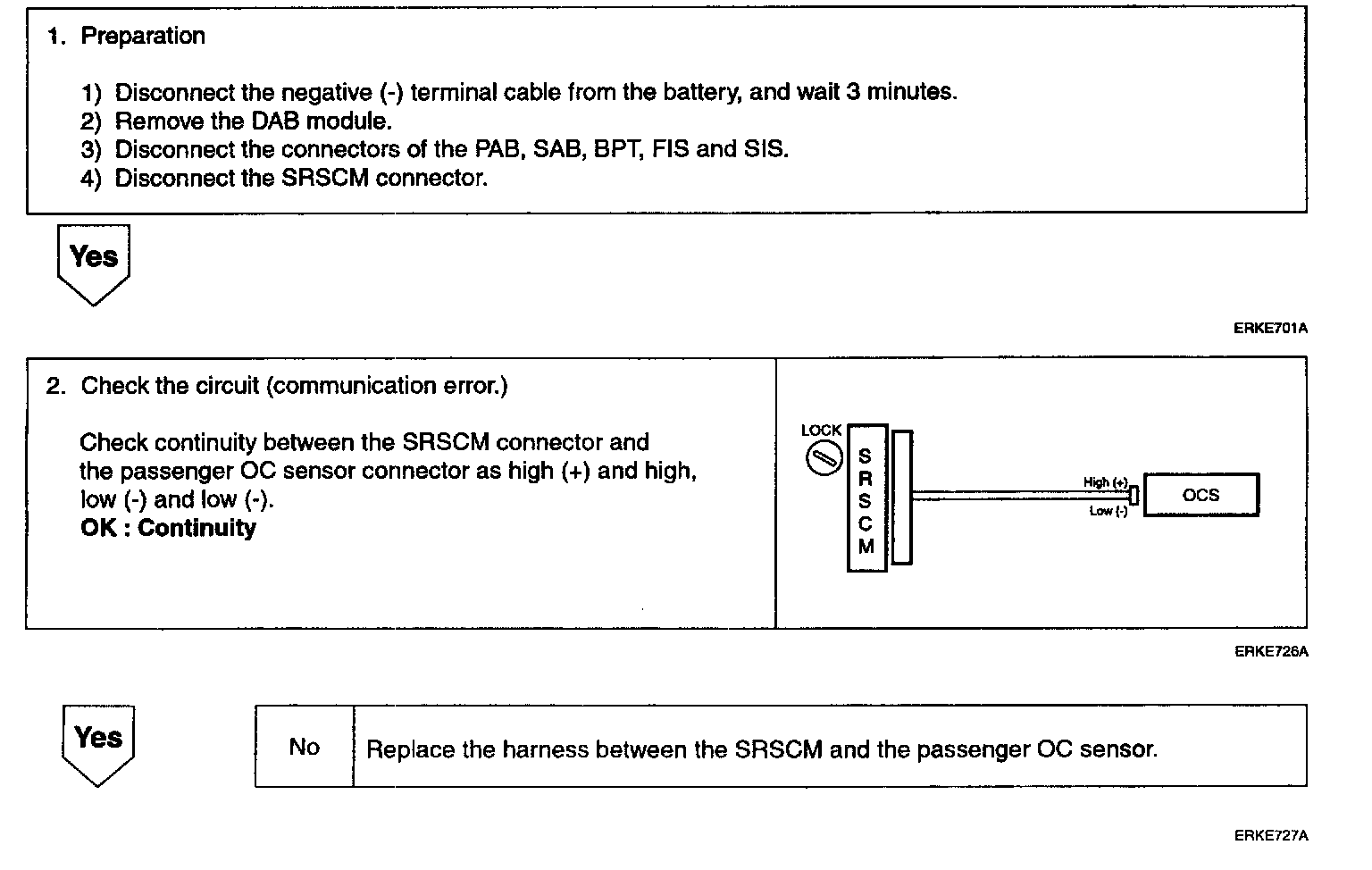

Steps 1 - 2:

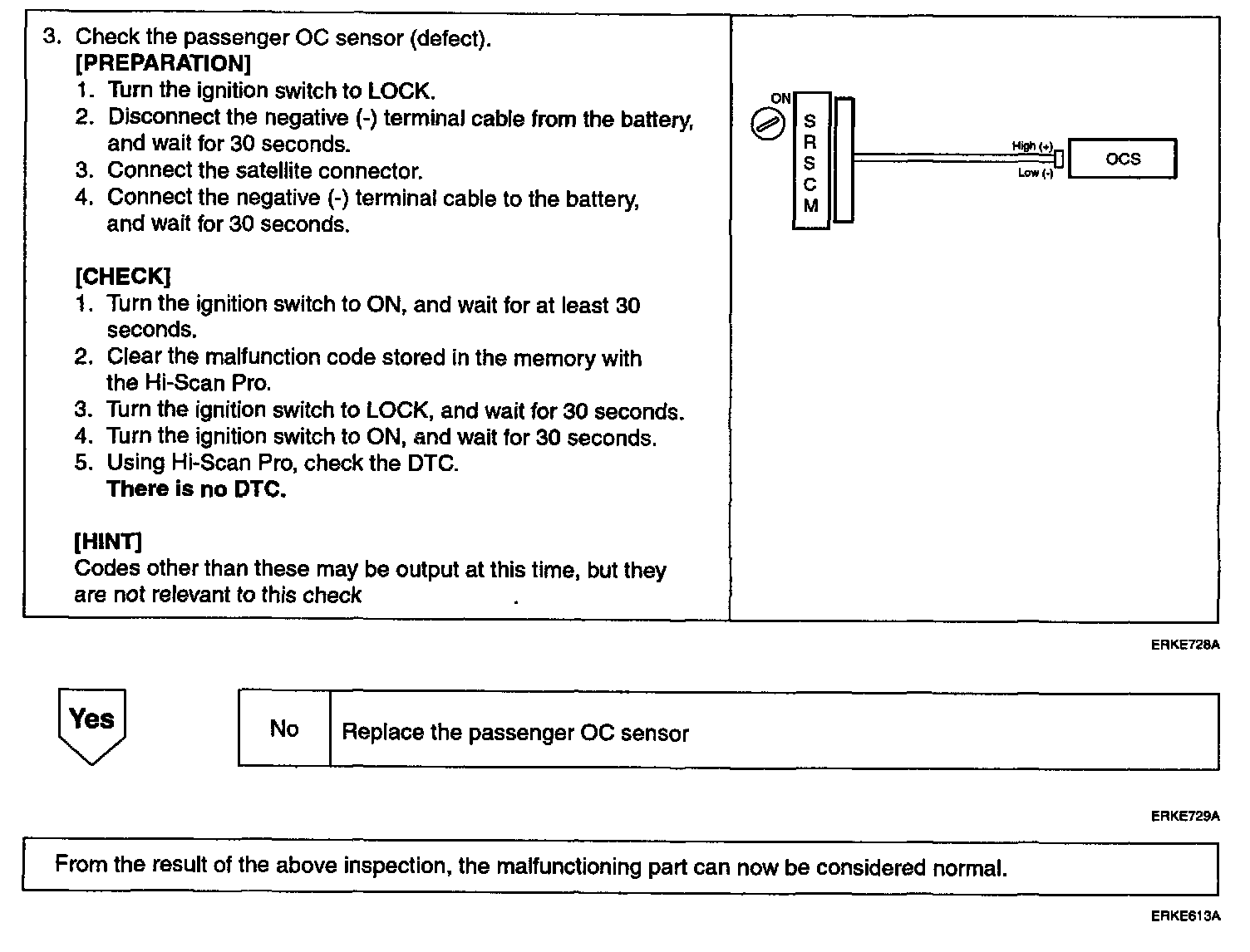

Step 3:

INSPECTION PROCEDURES
