B1388

DTC B1388 DRIVER SEAT TRACK POSITION SENSOR SHORT TO BATTERY (I < 3.9 MA)

DESCRIPTION
The advanced restraint control module shall monitor the status of the driver and passenger Seat Track Position Sensor (STPS). The advanced restraint control module shaft provide one pin for the driver STPS input and one pin for the passenger STPS.

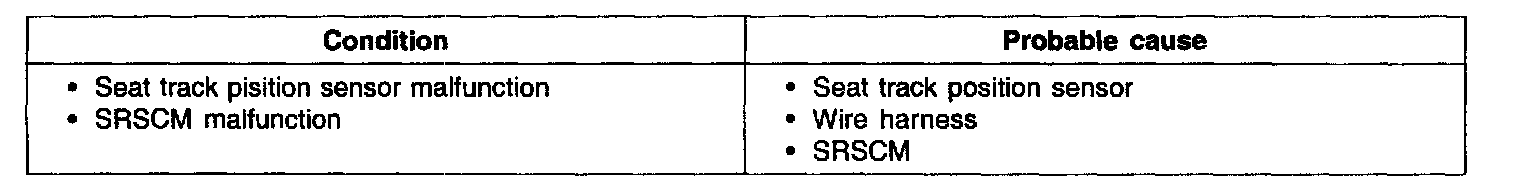

DTC Detecting Condition:

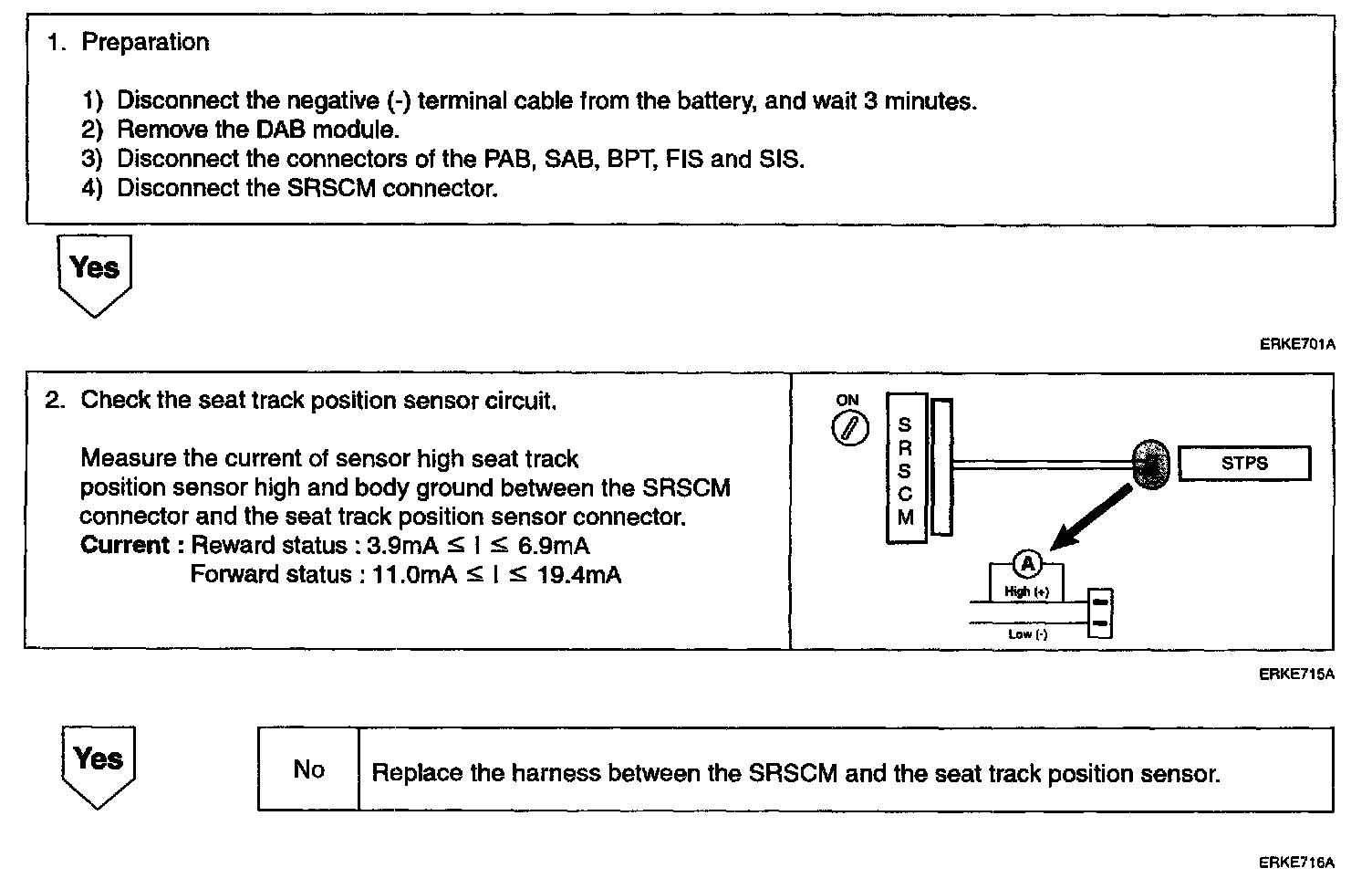

Steps 1 - 2:

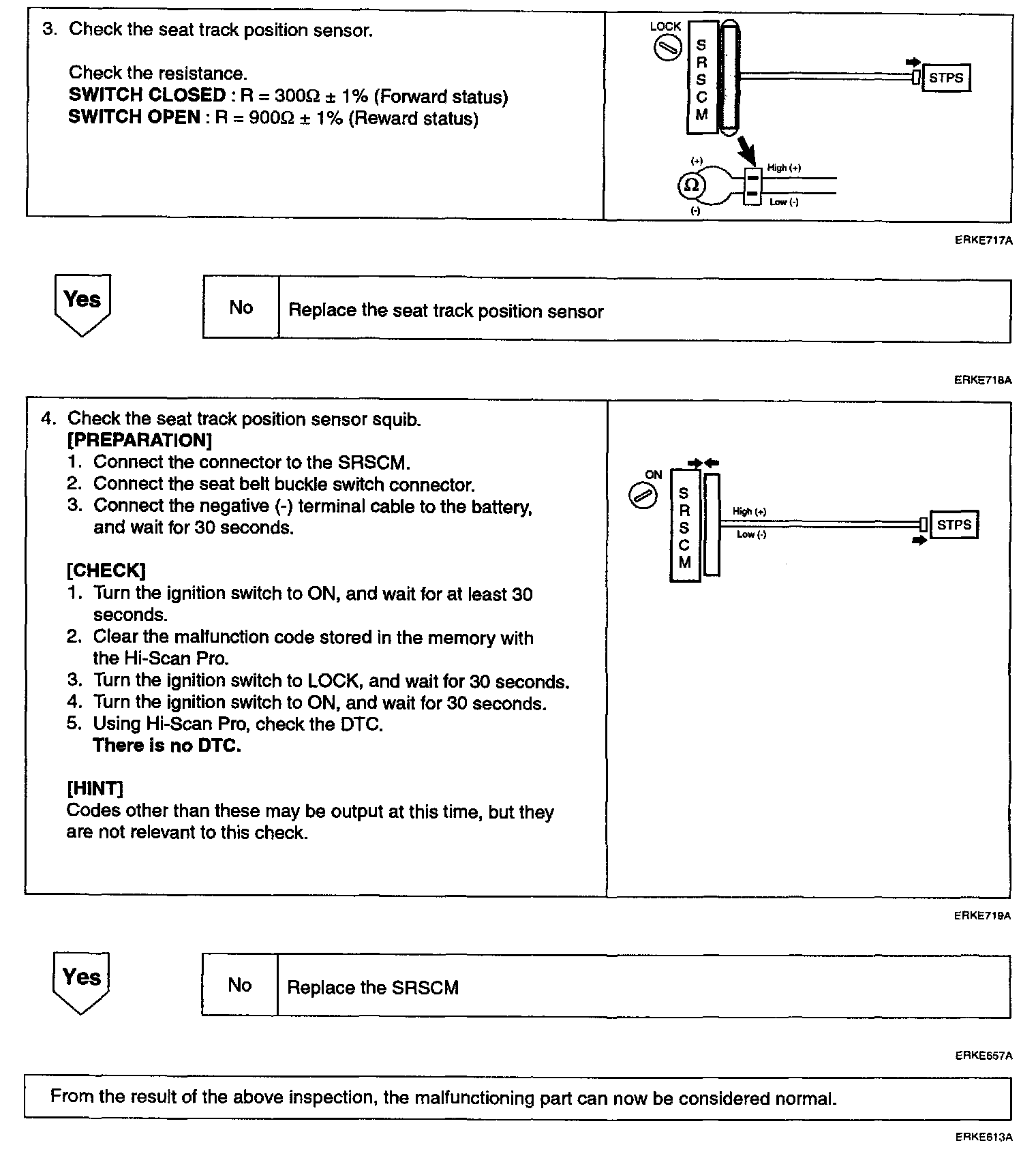

Steps 3 - 4:

INSPECTION PROCEDURES
