B1387

DTC B1387 DRIVER SEAT TRACK POSITION SENSOR SHORT TO GROUND (I > 19.4 MA).

DESCRIPTION
The advanced restraint control module shall monitor the status of the driver and passenger Seat Track Position Sensor (STPS). The advanced restraint control module shall provide one pin for the driver. STPS input and one pin for the passenger STPS.

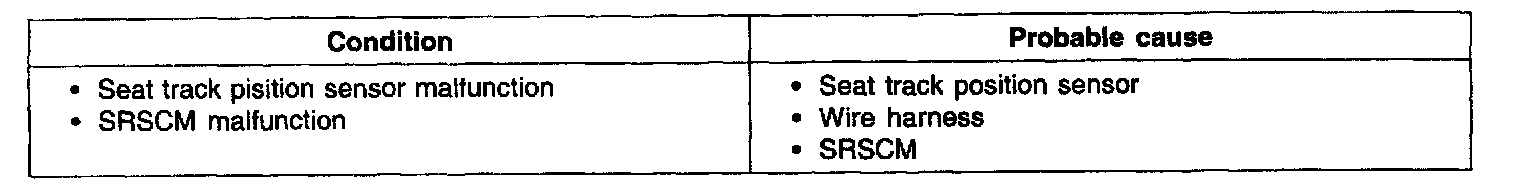

DTC Detecting Condition:

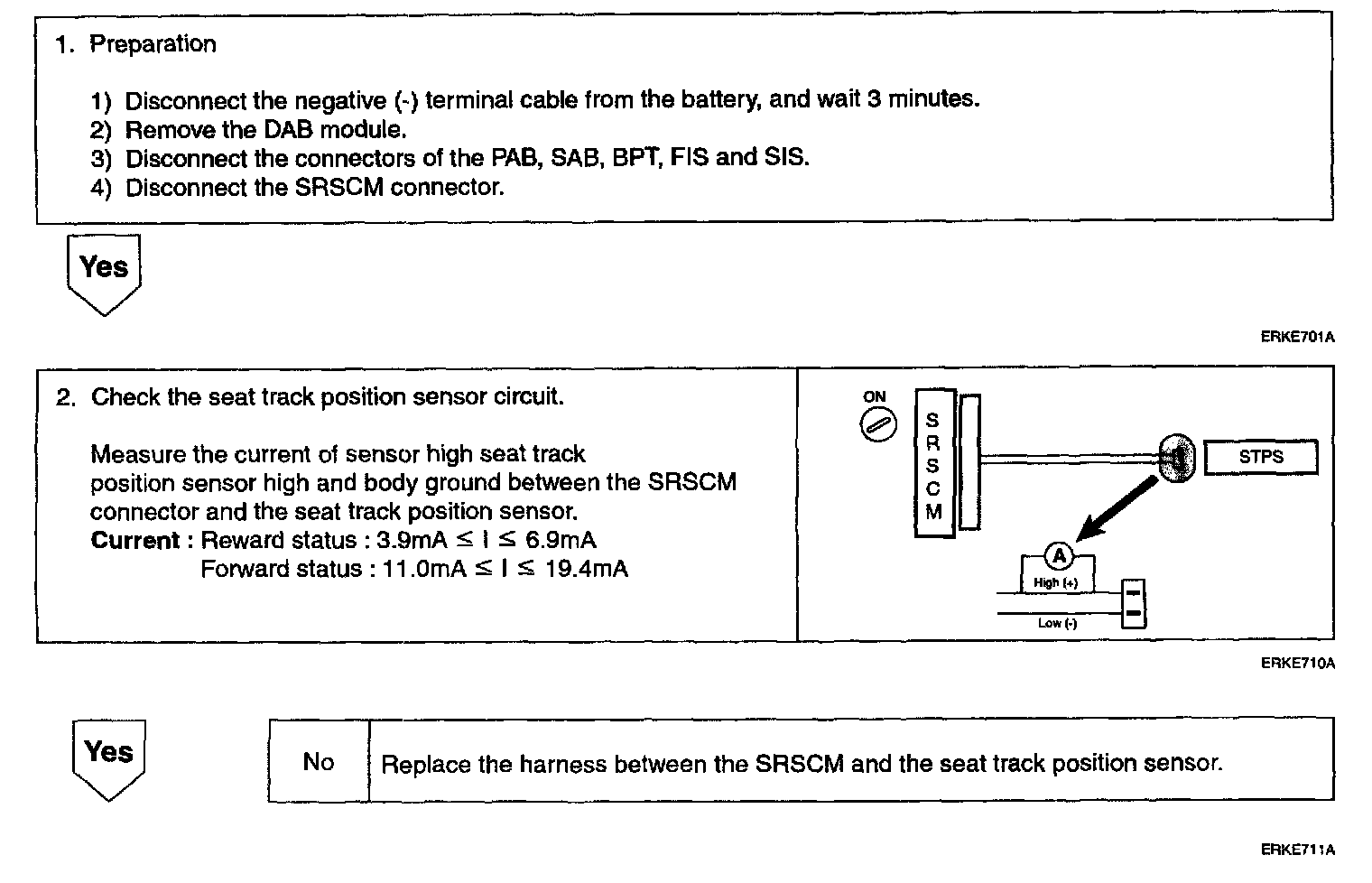

Steps 1 - 2:

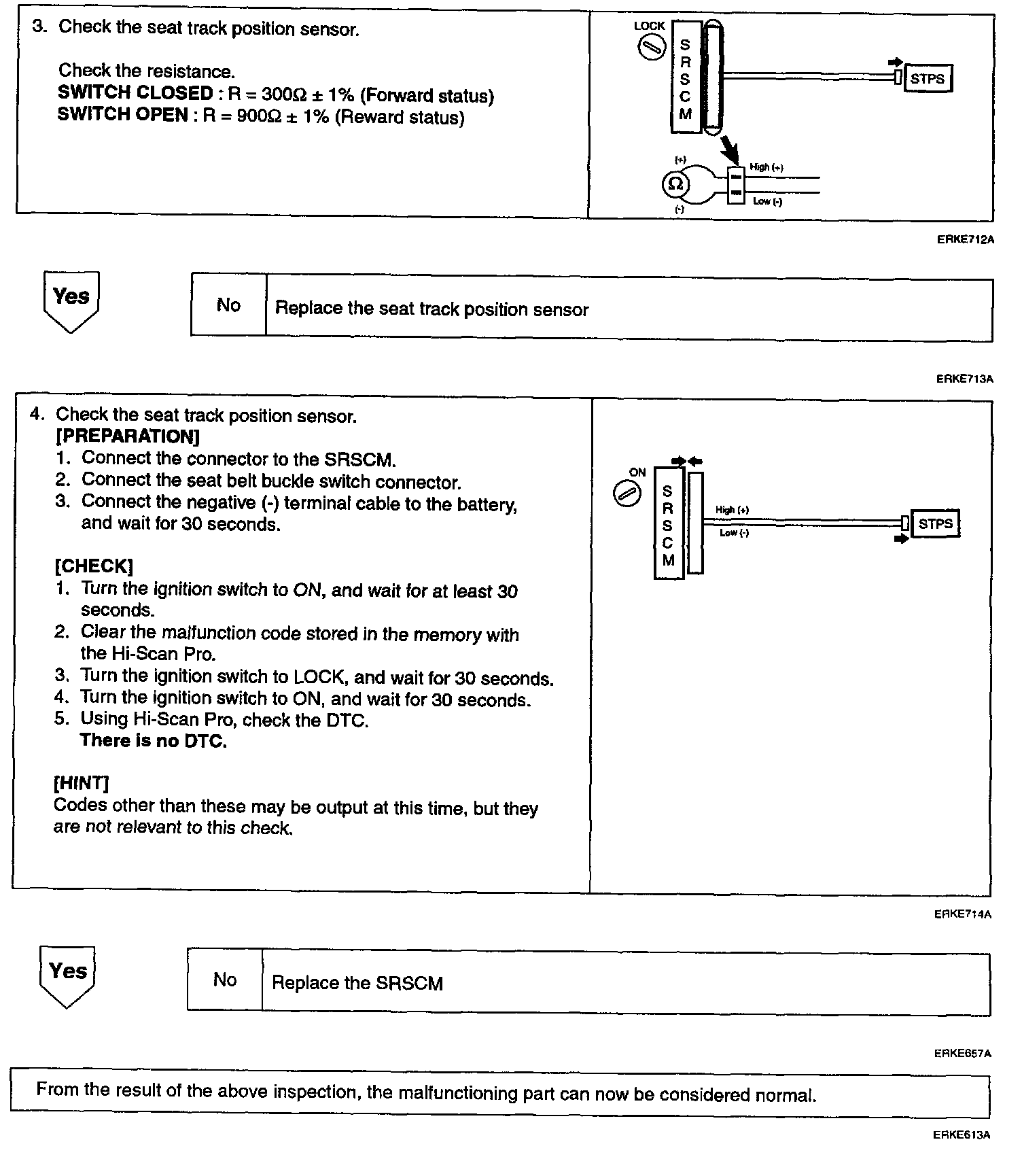

Steps 3 - 4:

INSPECTION PROCEDURES
