B1363

DTC B1363 DBPT SHORT TO GROUND

DESCRIPTION
The squib circuit consists of the SRSCM and BPT.

It causes the SRS to deploy when the SRS deployment conditions are satisfied. The above DTC is recorded when a short to ground is detected in the squib circuit.

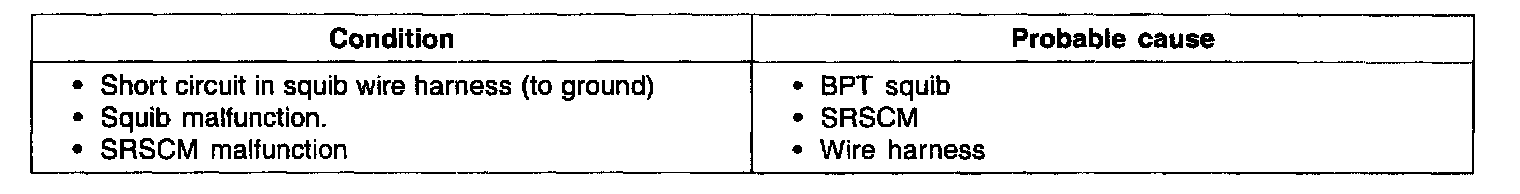

DTC Detecting Condition:

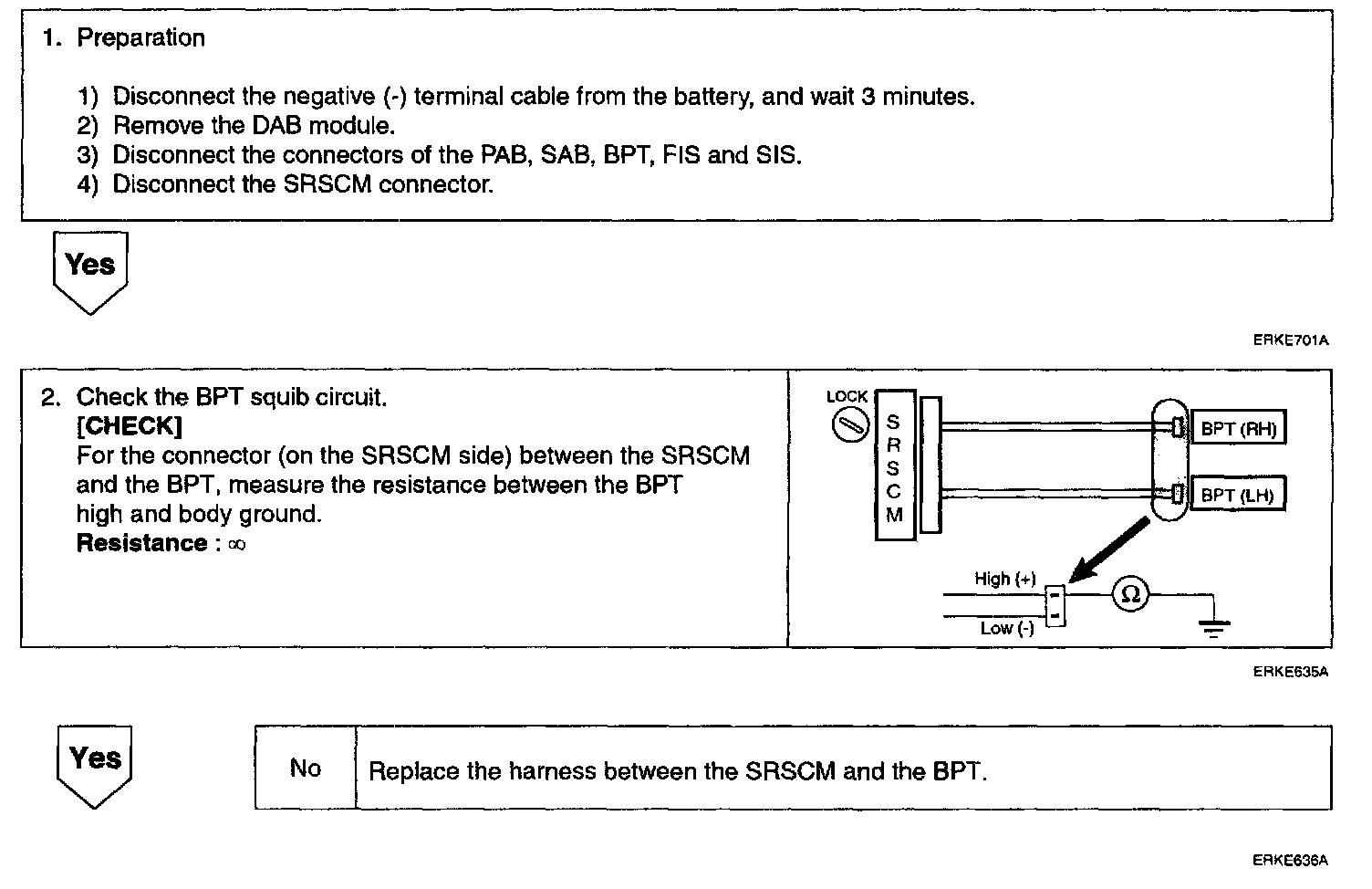

Steps 1 - 2:

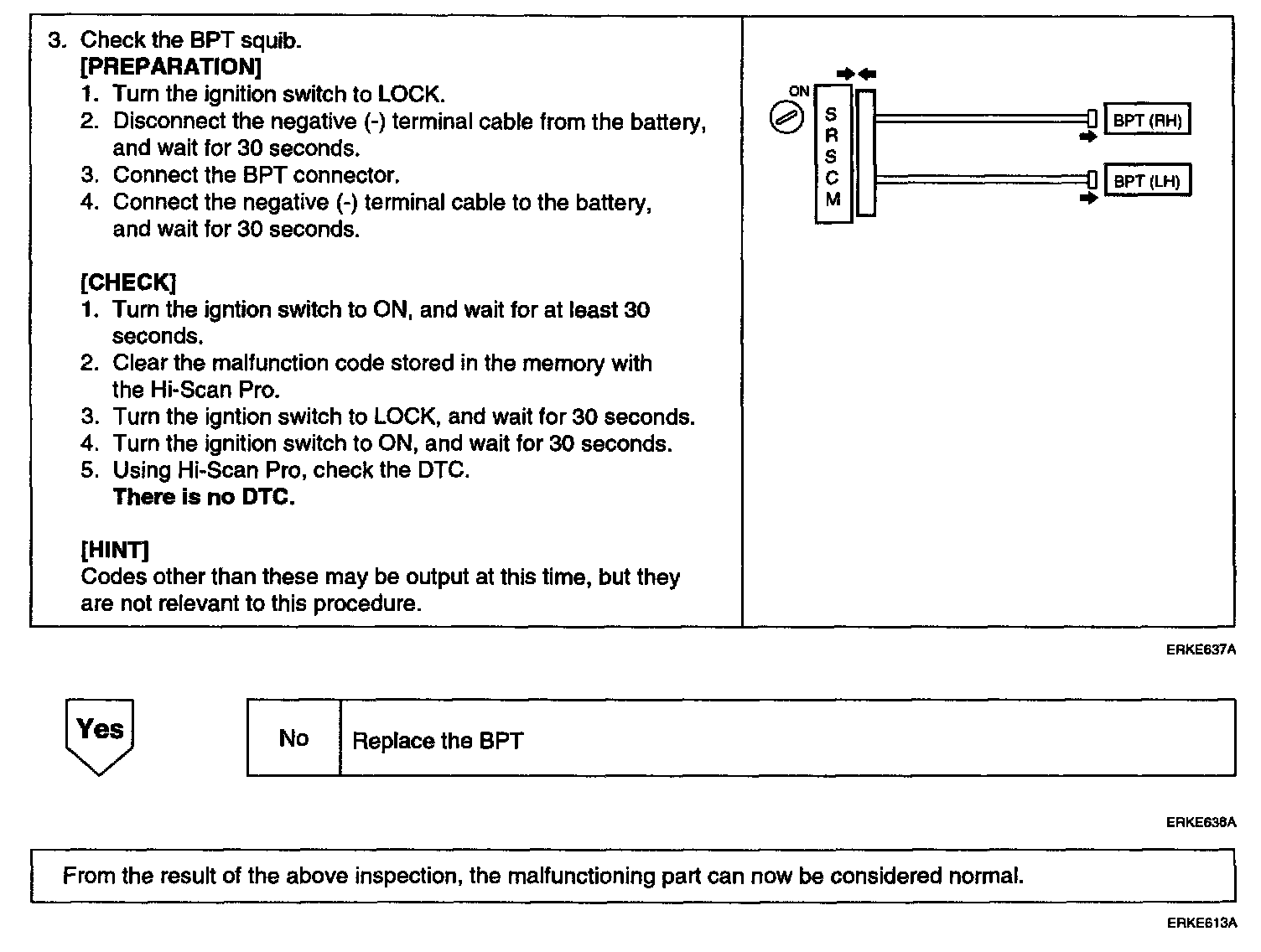

Step 3:

INSPECTION PROCEDURE
