B1354

DTC B1354 PAB 1ST STAGE SHORT TO GROUND

DESCRIPTION
The squib circuit consists of the SRSCM and PAB.

It causes the SRS to deploy when the SRS deployment conditions are satisfied. The above DTC is recorded when a short to ground is detected in the squib circuit.

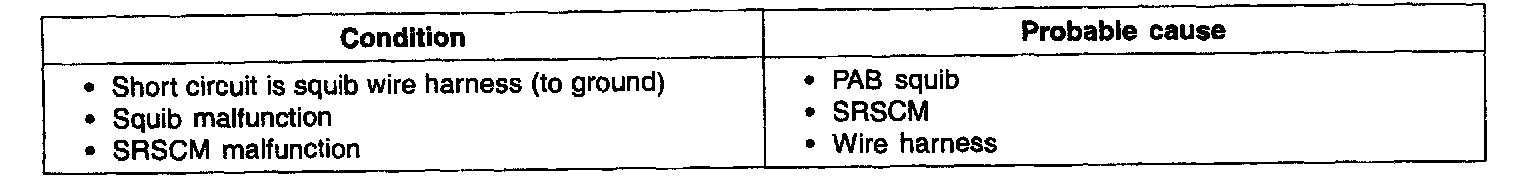

DTC Detecting Condition:

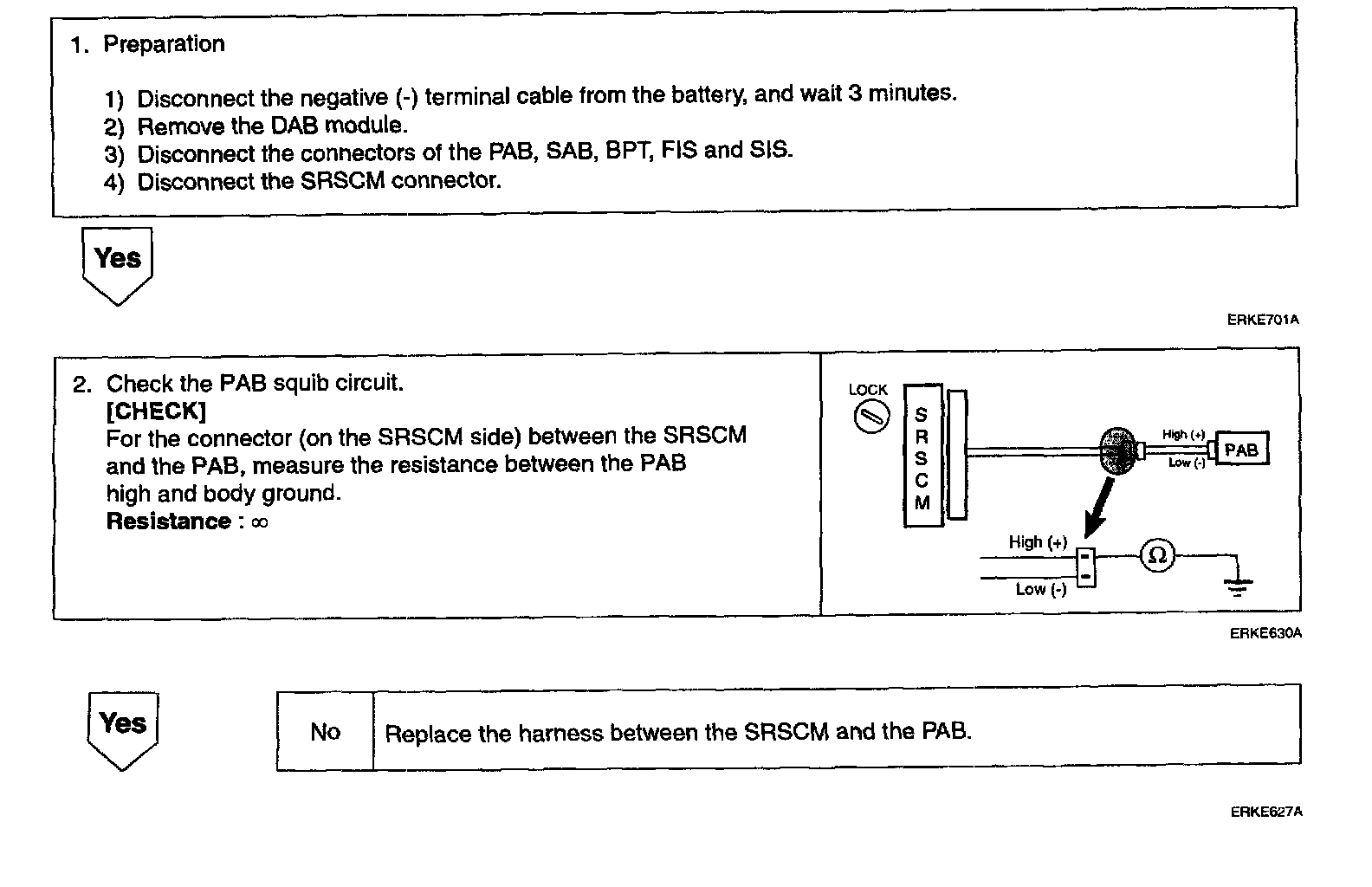

Steps 1 - 2:

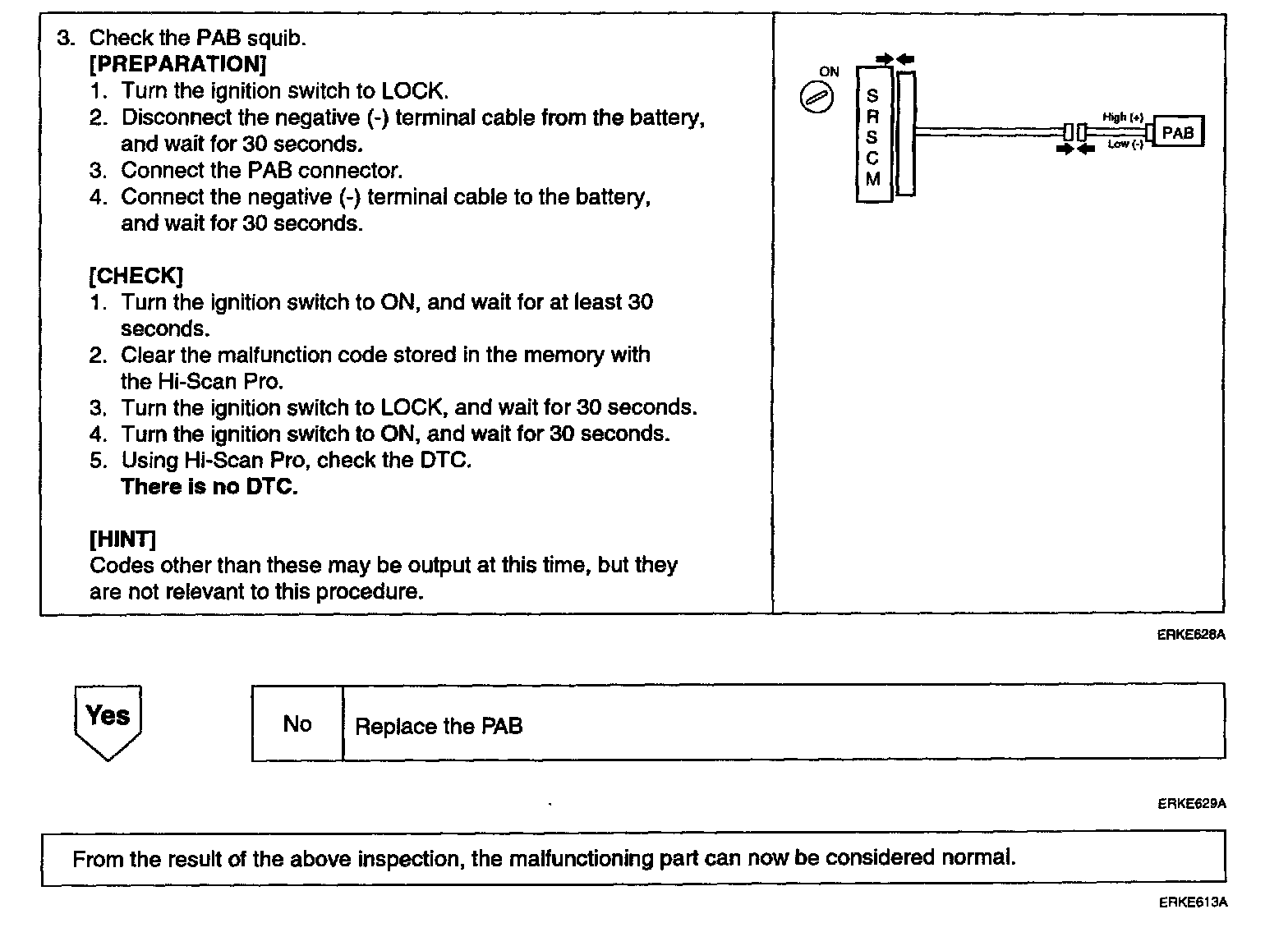

Step 3:

INSPECTION PROCEDURES
