B1352

DTC B1352 PAB 1ST STAGE RESISTANCE TOO HIGH

DESCRIPTION
The PAB squib circuit consists of the SRSCM and PAB.

It causes the airbag to deploy when the airbag deployment conditions are satisfied. The above DTCs are recorded when the PAB circuit is open or the PAB resistance too high or low is detected in the PAB squib circuit.

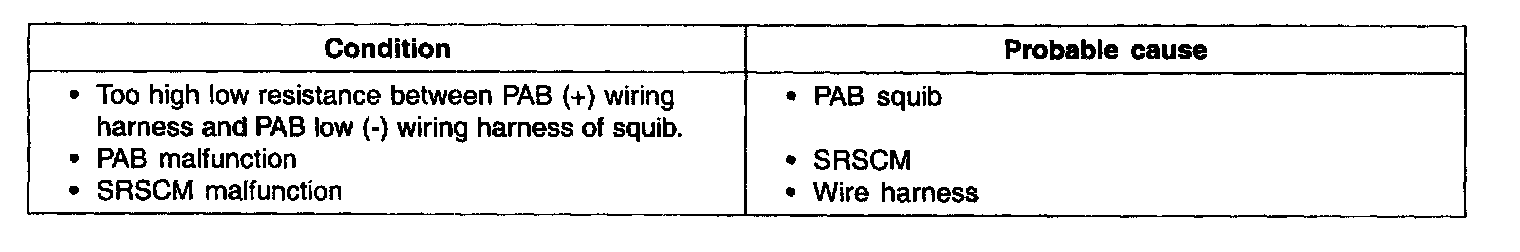

DTC Detecting Condition:

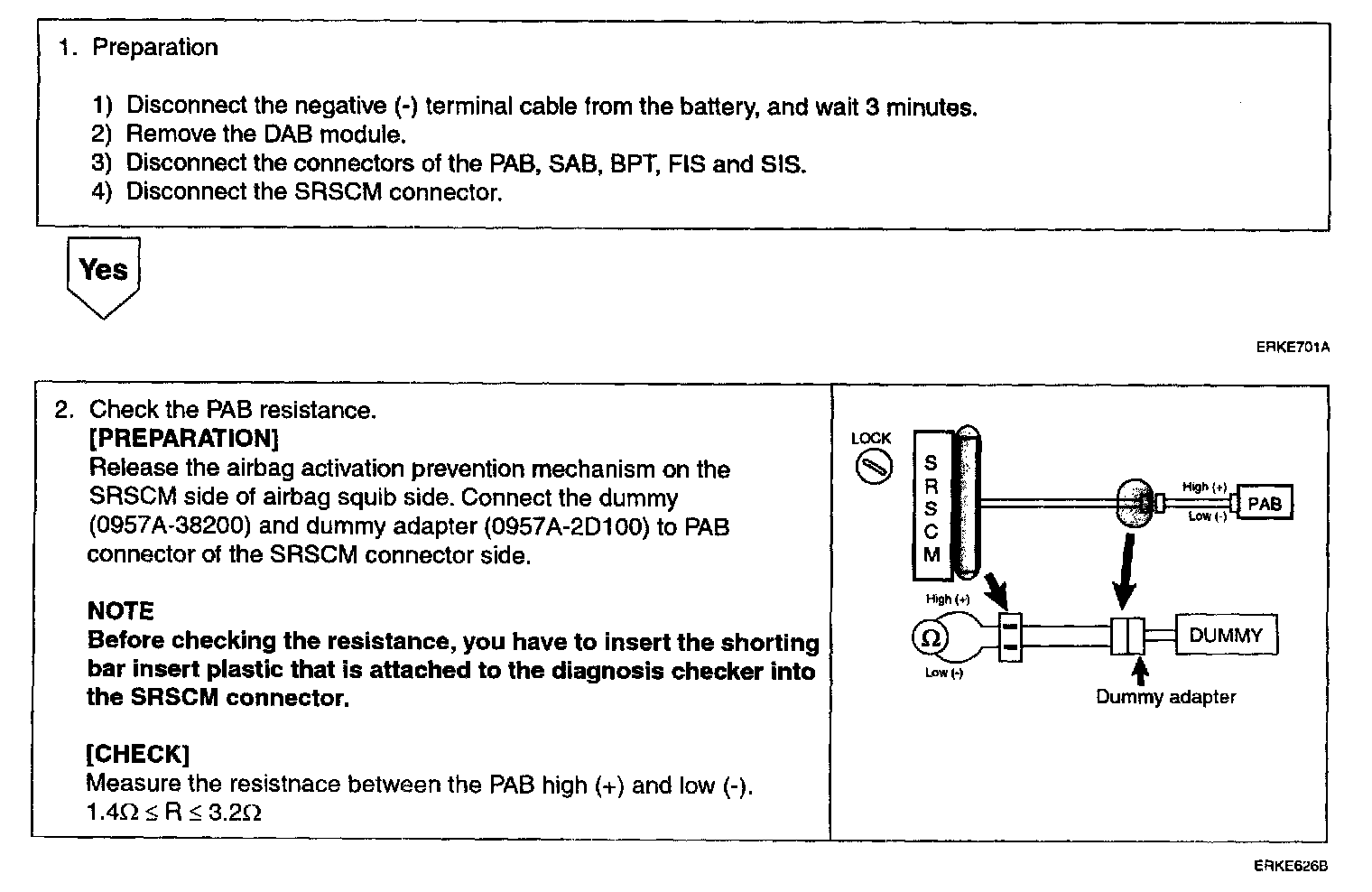

Steps 1 - 2:

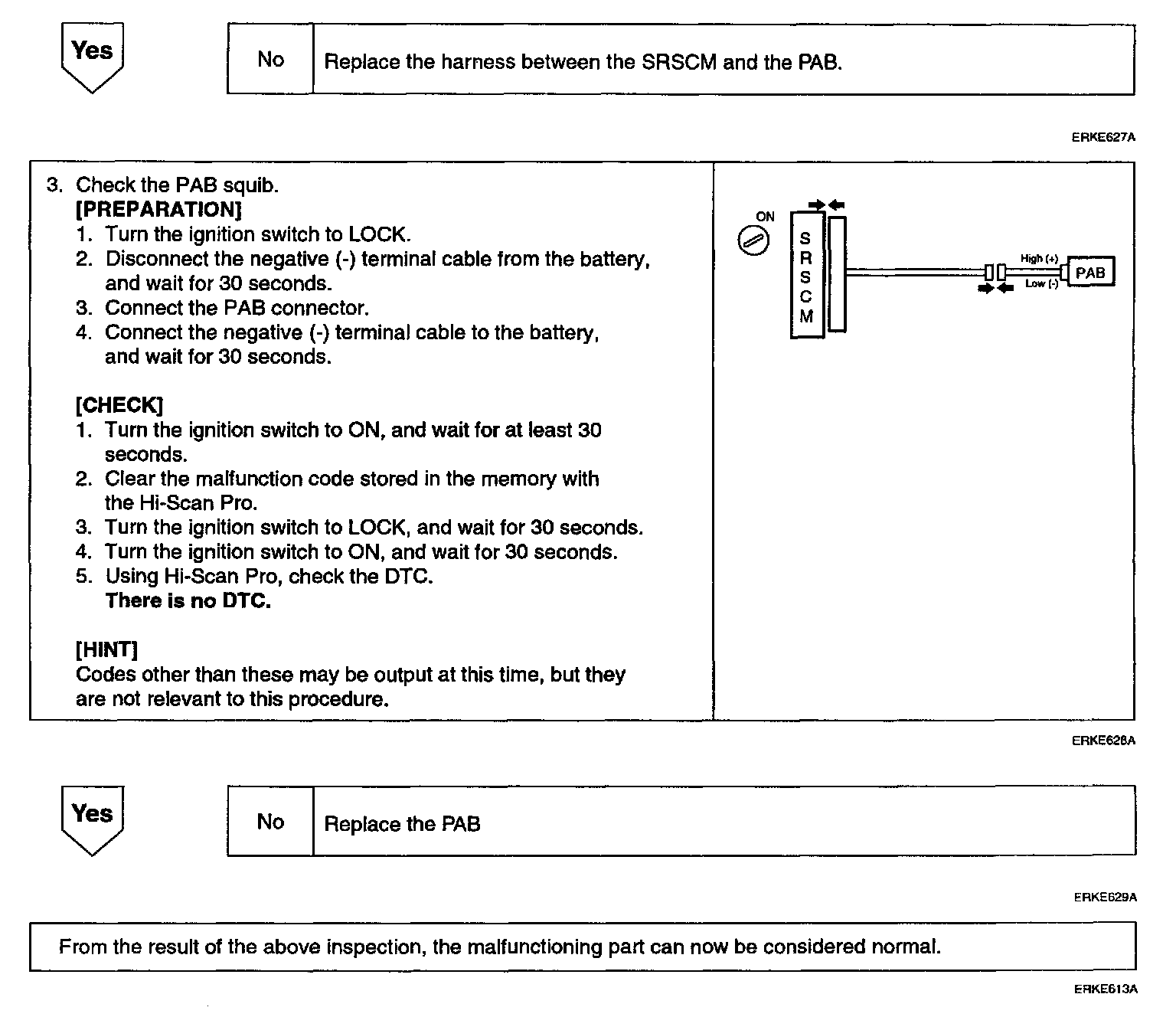

Step 3:

INSPECTION PROCEDURES
