Removal And Installation

Disconnect the negative (-) battery terminal.
Disconnect the wire connectors from the front seats and then remove the front seats. Refer to POWER SEAT article.
CAUTION: Take care not to scratch the trim when removing the front seats.

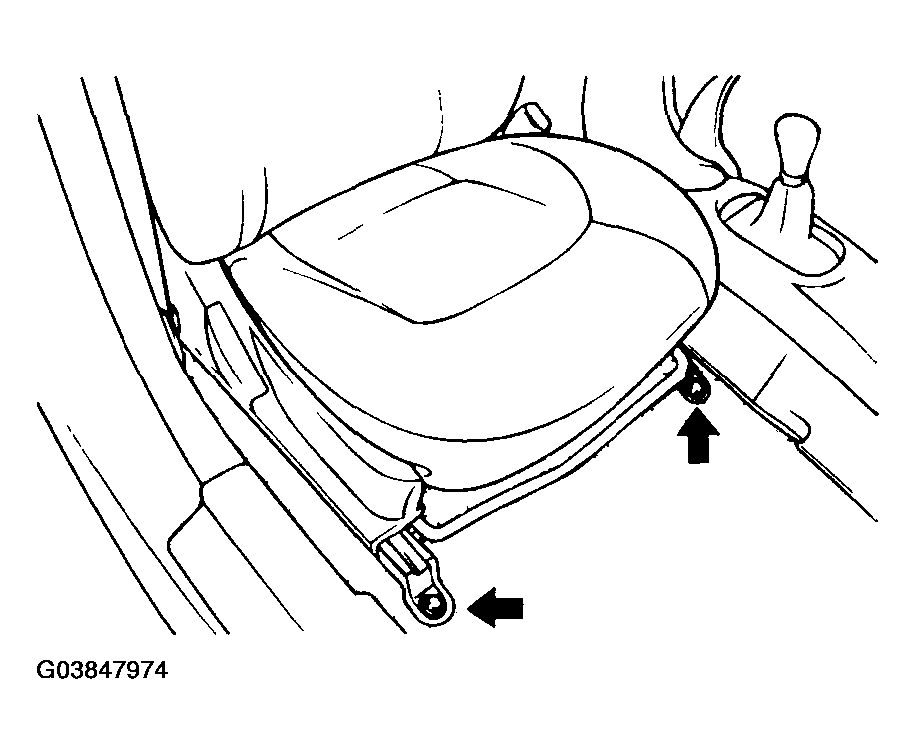

Fig 1: Identifying Front Seat Screws (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

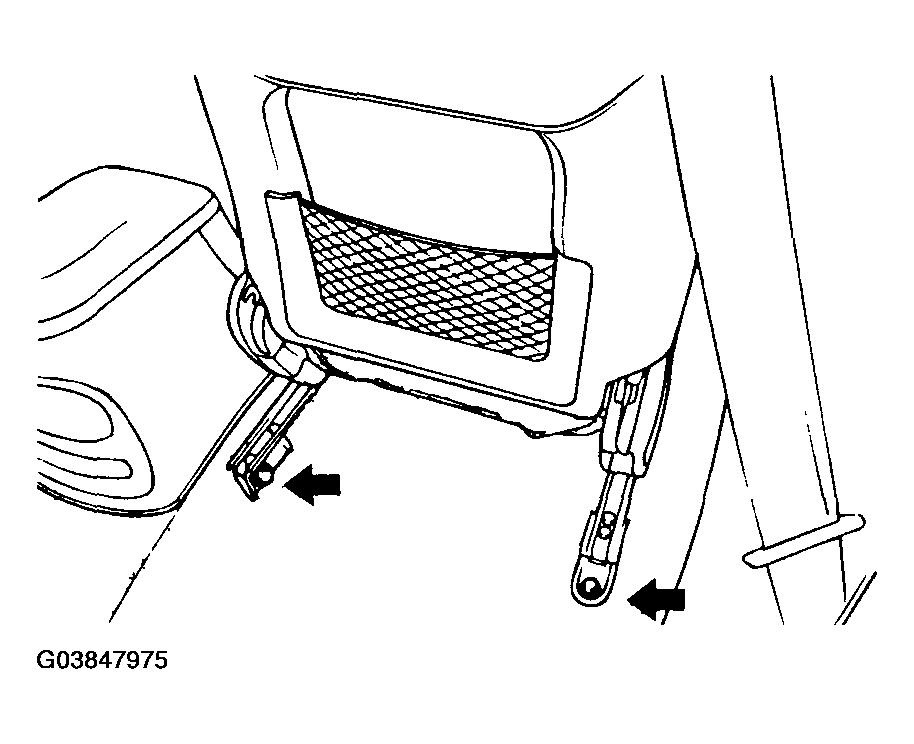

Fig 2: Identifying Front Seat Screws (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Remove the 4 screws holding the floor console side cover.

Fig 3: Identifying 4 Screws Holding Floor Console Side Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the 2 screws holding the floor console assembly and then pull out the floor console.

Fig 4: Identifying 2 Screws Holding Floor Console Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the air bag module.
CAUTION: For instructions on the removal of the air bag module and clock spring, refer to AIR BAG RESTRAINT SYSTEMS article. .

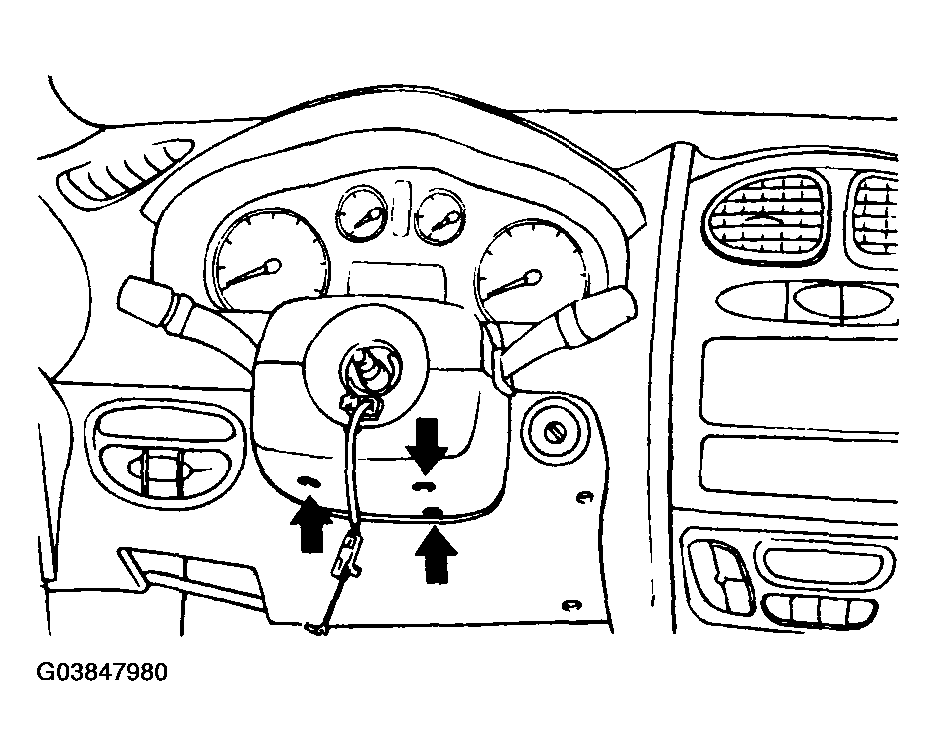

Fig 5: Identifying Air Bag Module
Courtesy of HYUNDAI MOTOR CO.
Remove the steering wheel.

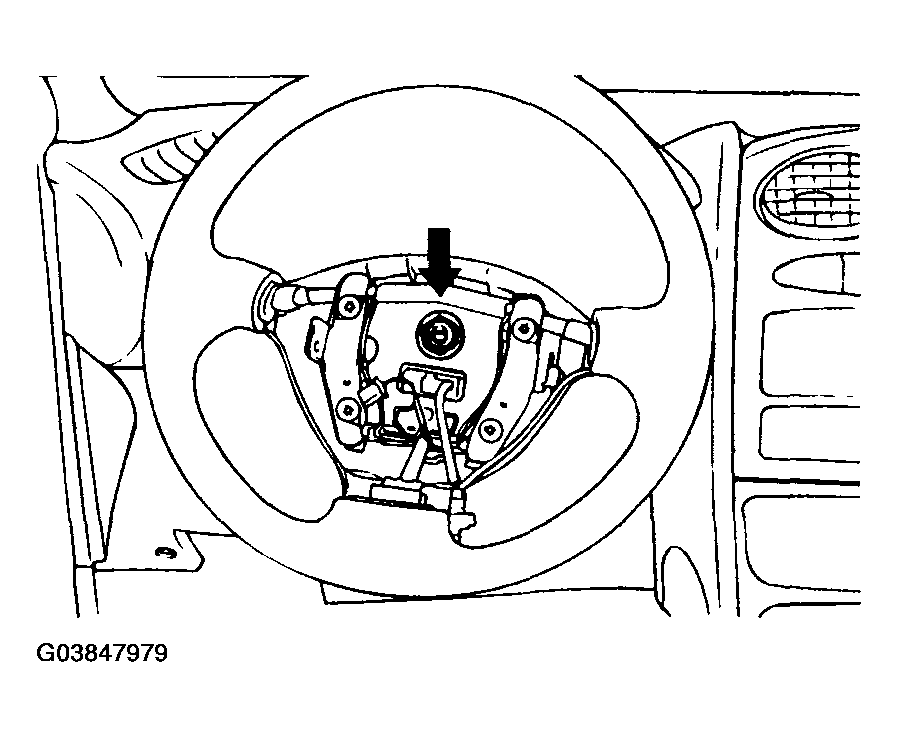

Fig 6: Identifying Steering Wheel Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the 3 screws holding the steering column lower shroud and then remove the steering column lower and upper shroud.

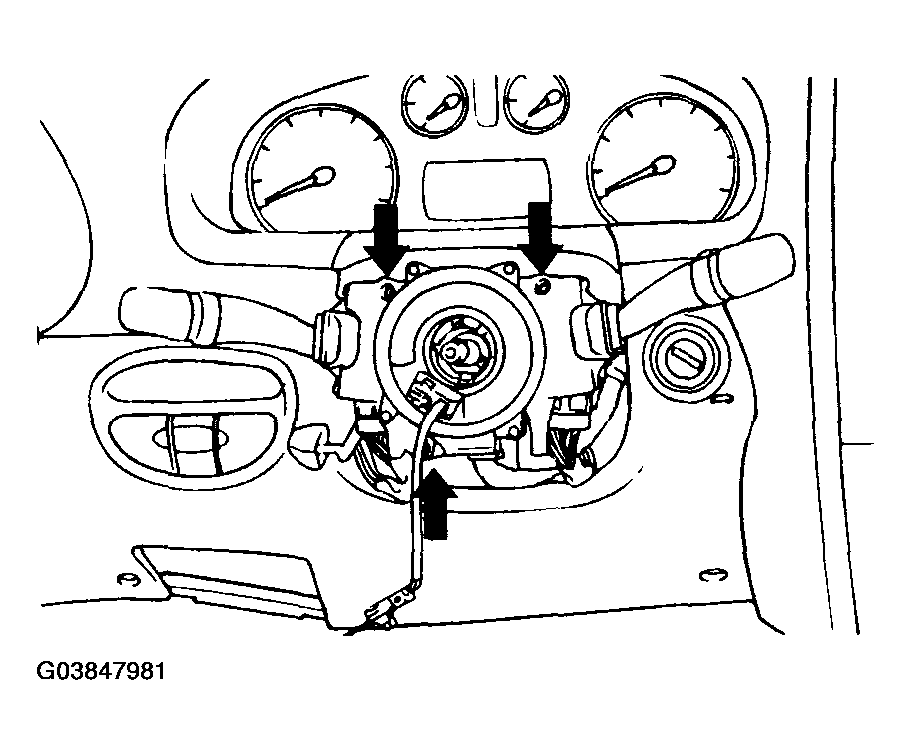

Fig 7: Identifying 3 Screws Holding Steering Column Lower Shroud
Courtesy of HYUNDAI MOTOR CO.
Disconnect and remove the multifunction switch (3 screws).

Fig 8: Identifying Multifunction Switch Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the driver side lower crash pad panel (3 screws) and hood release cable.

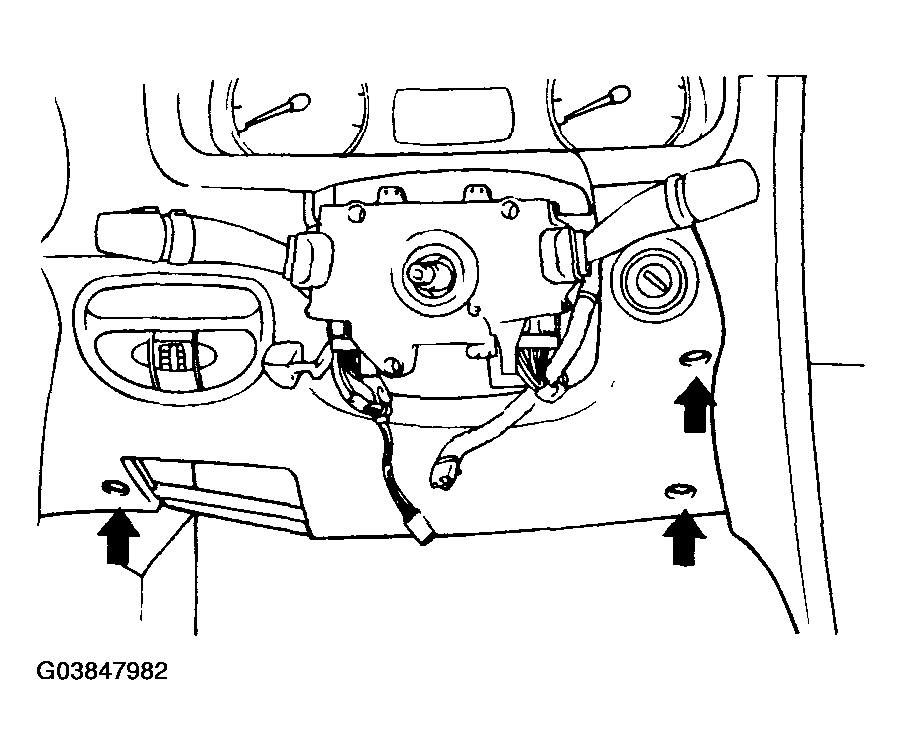

Fig 9: Identifying Driver Side Lower Crash Pad Panel Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the instrument cluster facia panel (2 screws).

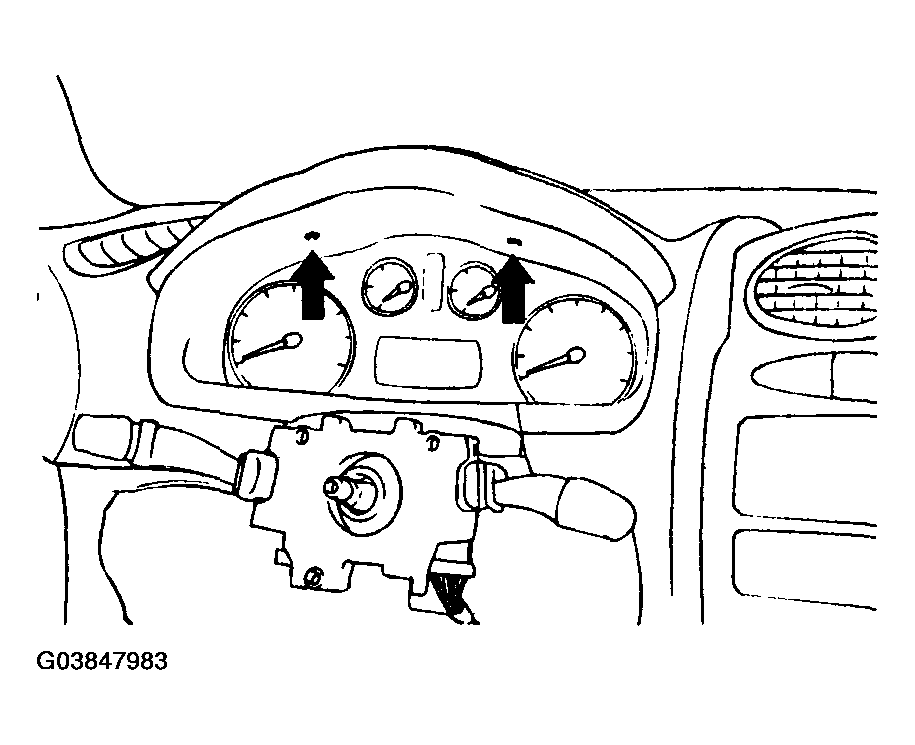

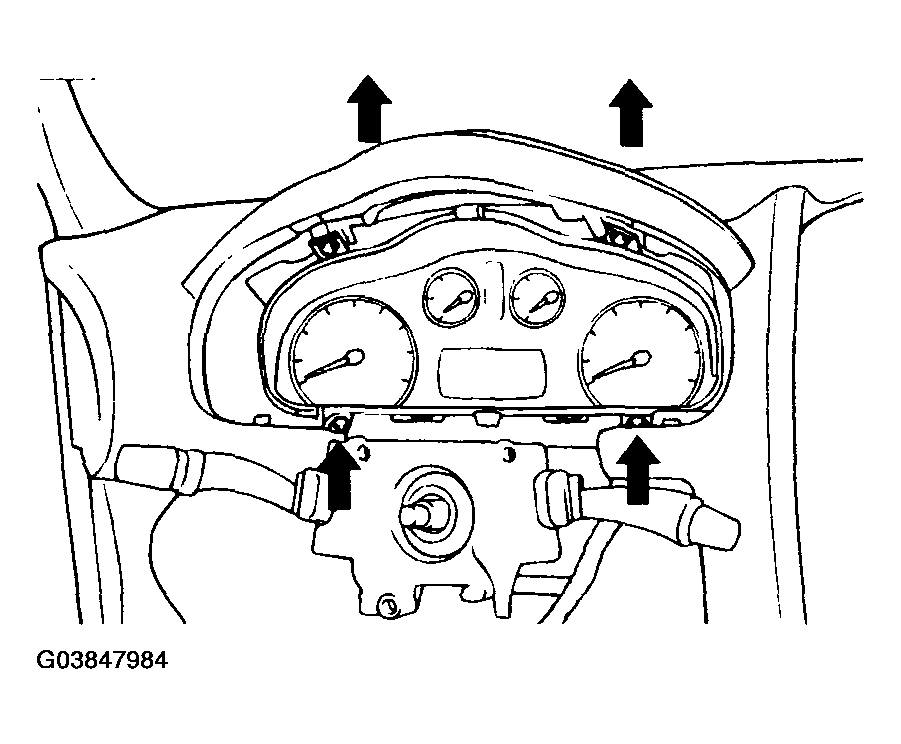

Fig 10: Identifying Instrument Cluster Facia Panel Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the instrument cluster (4 screws).

Fig 11: Identifying Instrument Cluster Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the ash tray and then remove the 4 screws holding the center facia panel.

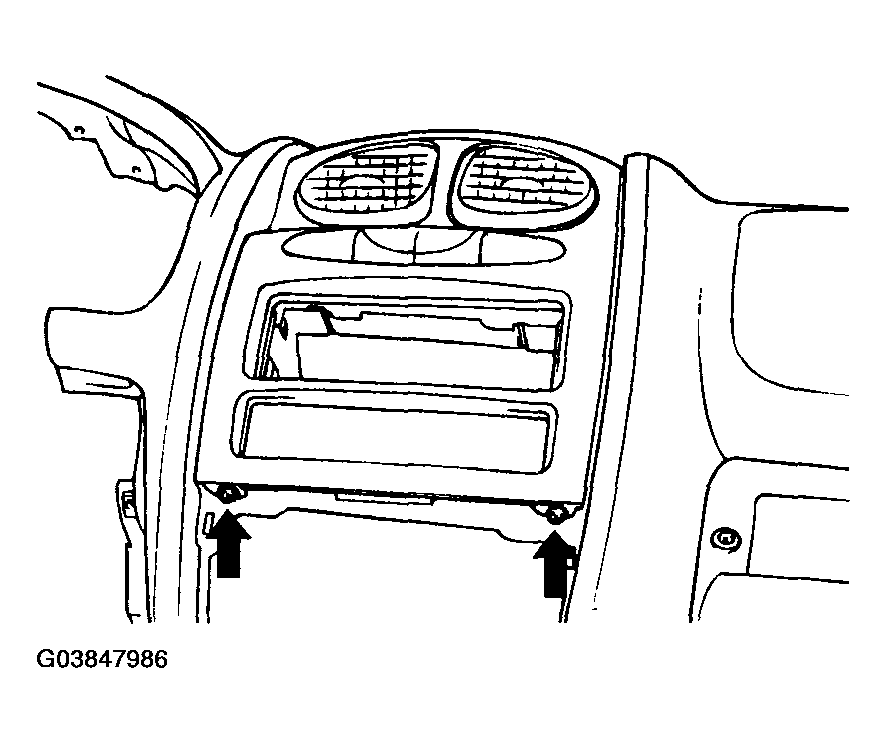

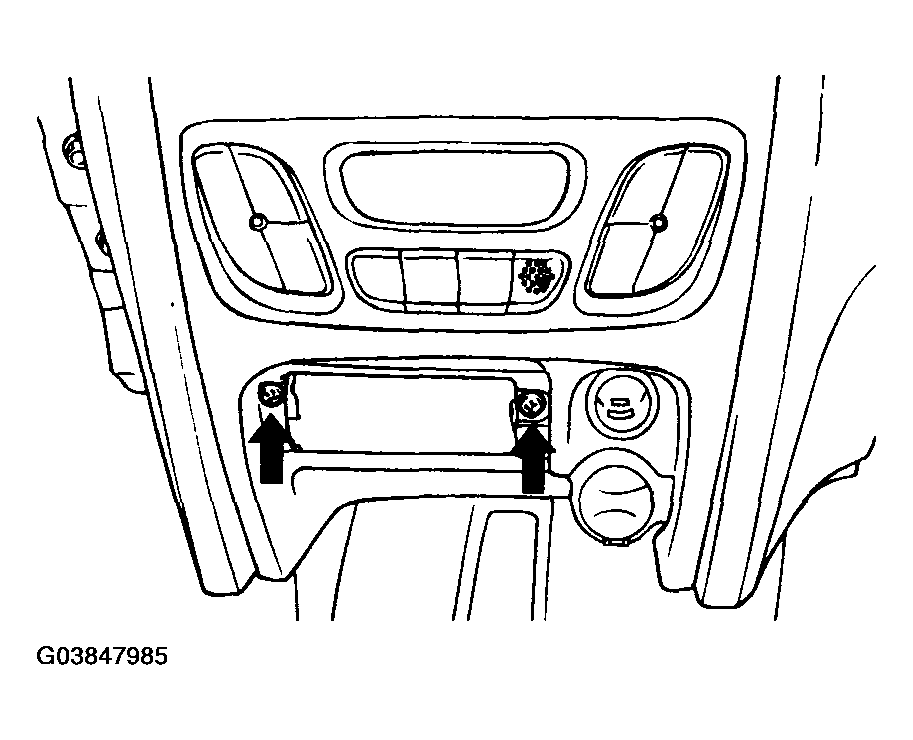

Fig 12: Removing Screws Holding Center Facia Panel (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 13: Removing Screws Holding Center Facia Panel (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Remove the center facia panel and disconnect the connectors.
Remove the audio unit.
Remove the glove box and the side cover (7 screws).

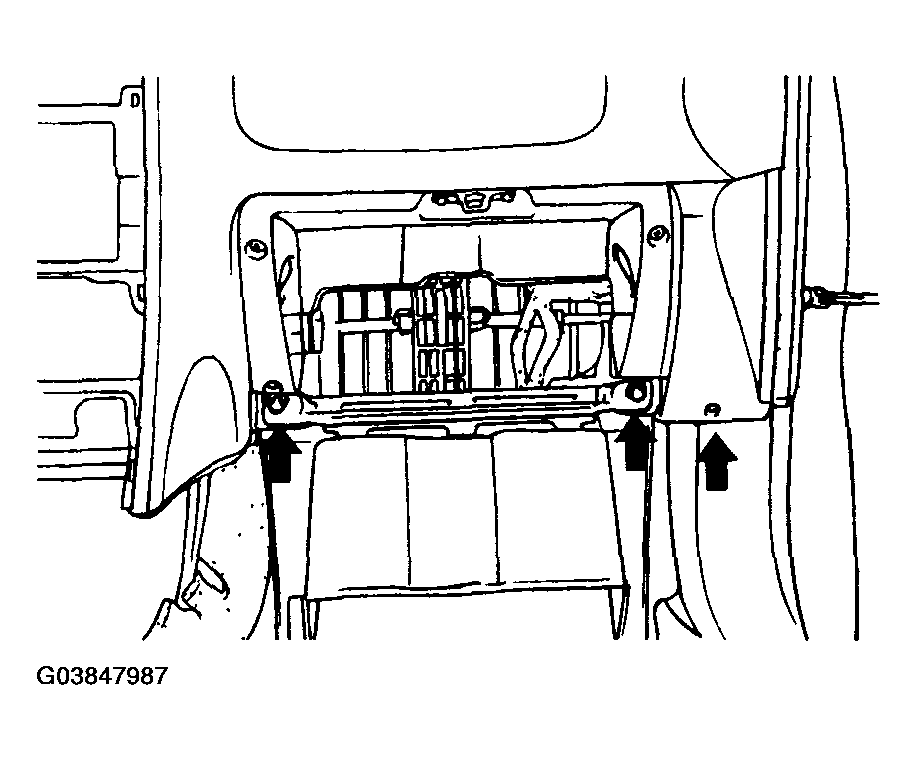

Fig 14: Identifying Glove Box And Side Cover Screws (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 15: Identifying Glove Box And Side Cover Screws (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Pry loose the front pillar trim and remove the bolts holding the crash pad.

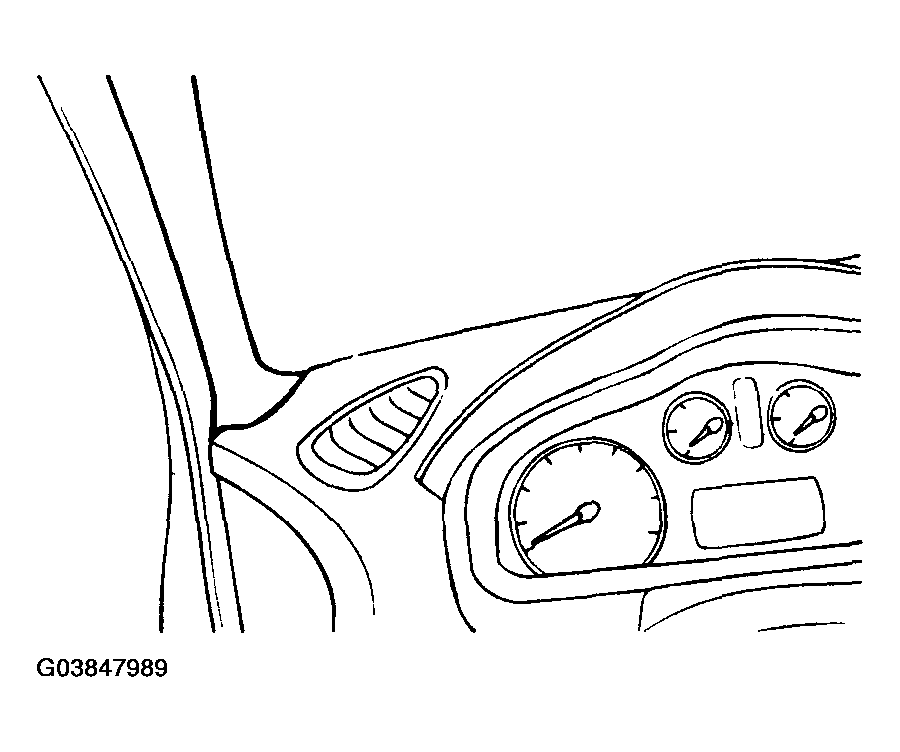

Fig 16: Identifying Front Pillar Trim
Courtesy of HYUNDAI MOTOR CO.
Remove the 8 bolts holding the main crash pad.

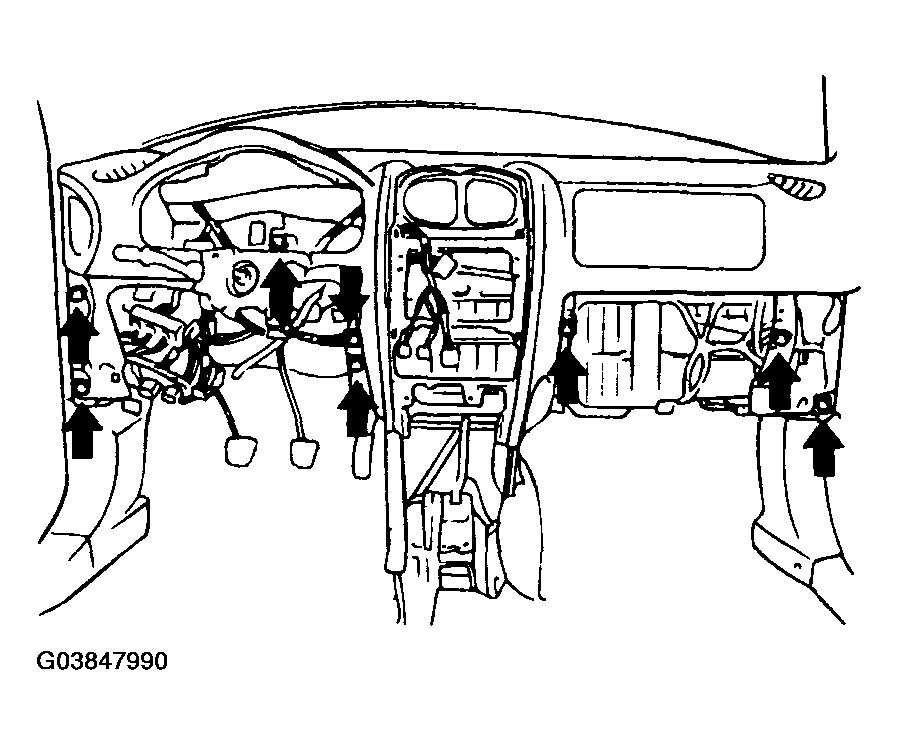

Fig 17: Identifying 8 Bolts Holding Main Crash Pad
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors and then remove the main crash pad.

Fig 18: Identifying Main Crash Pad
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal. Connect all connectors securely.
