Instrument Cluster: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

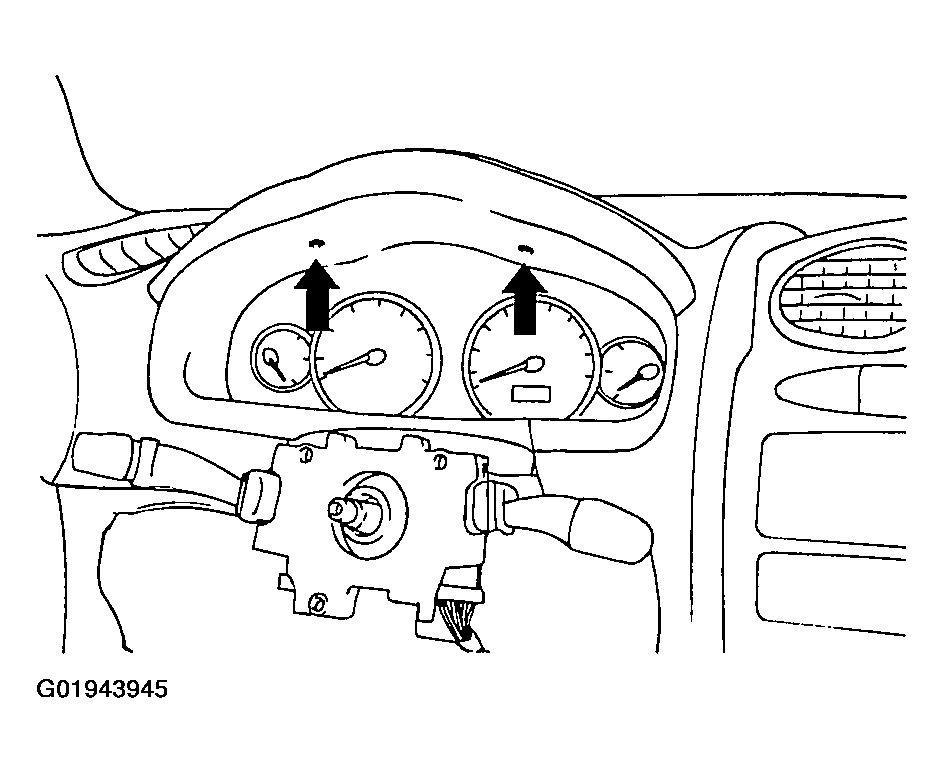

    Fig 1: Identifying Cluster Fascia Panel Screws
    G01943945Courtesy of HYUNDAI MOTOR CO.
  3. Remove the screws holding the cluster and remove the instrument cluster.

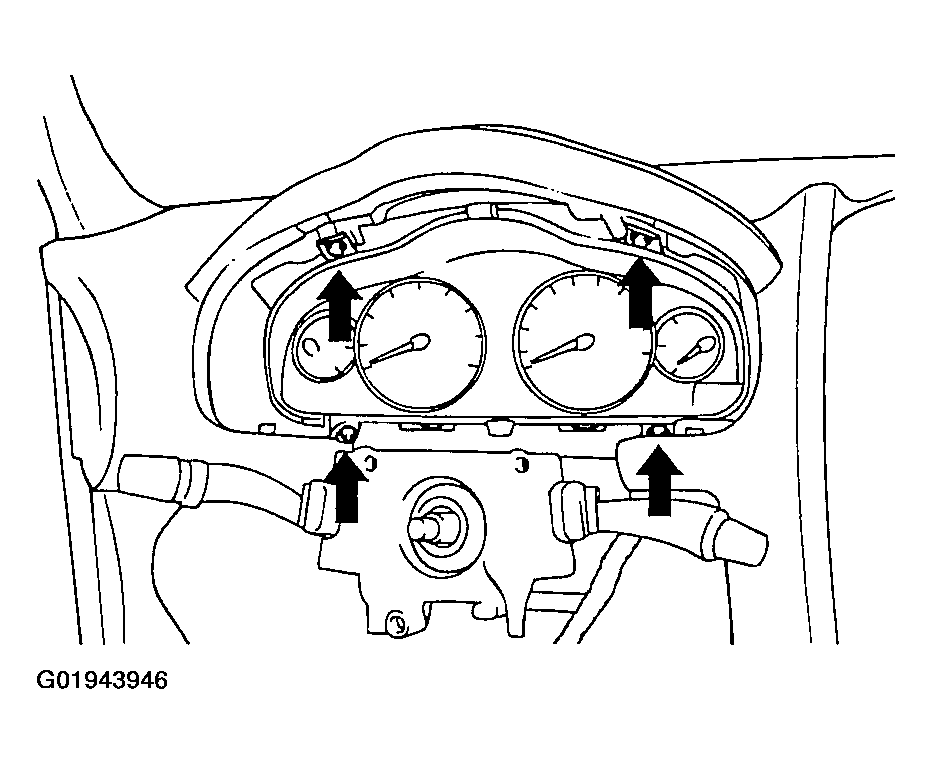

    Fig 2: Identifying Instrument Cluster Screws
    G01943946Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
