Inspection Of Components: Tachometer
- Connect the scan tool to the diagnostic link connector or install a tachometer.

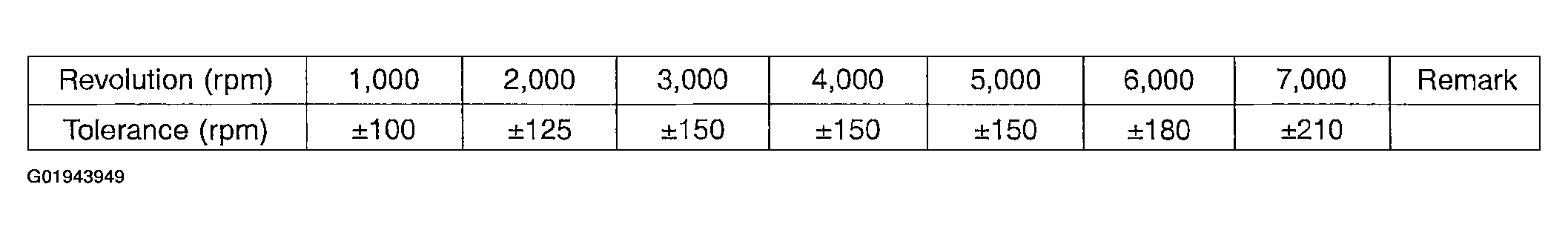

- With the engine started, compare the readings of the tester with that of the tachometer. Replace the tachometer if the tolerance is exceeded.
Courtesy of HYUNDAI MOTOR CO.
