Seat Belt Switch

  1. Remove the connector from the switch.
  2. Check for continuity between terminals.

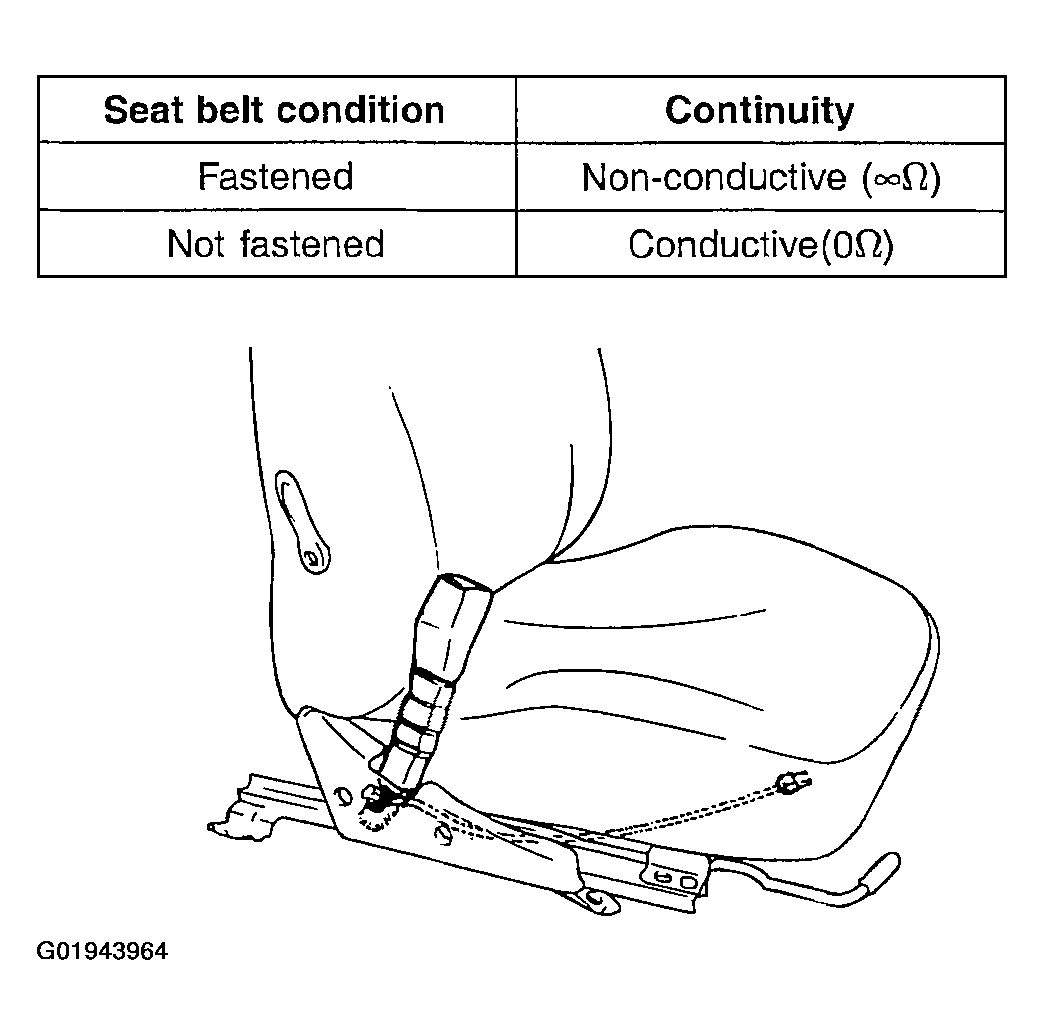

    Fig 1: Seat Belt Switch Continuity Table
    G01943964Courtesy of HYUNDAI MOTOR CO.
