Rear Brake Shoes: Installation

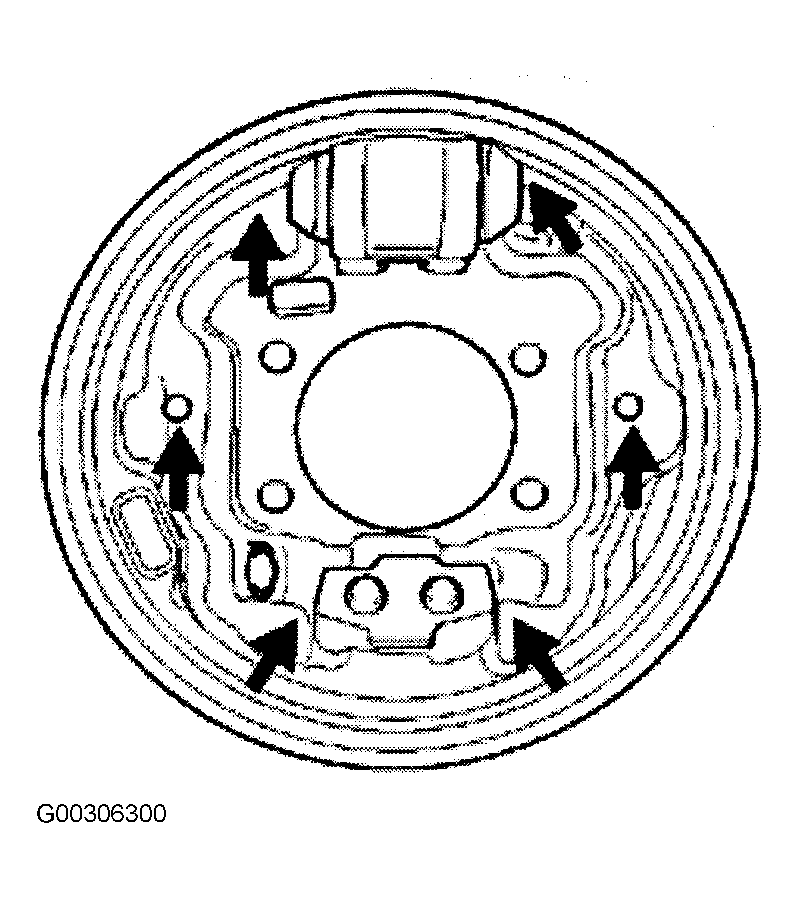

- Apply the specified grease to the locations indicated in the illustration and to each component. See Fig 3
.
- Shoe and backing plate contact surfaces.
- Shoe and anchor plate contact surfaces.

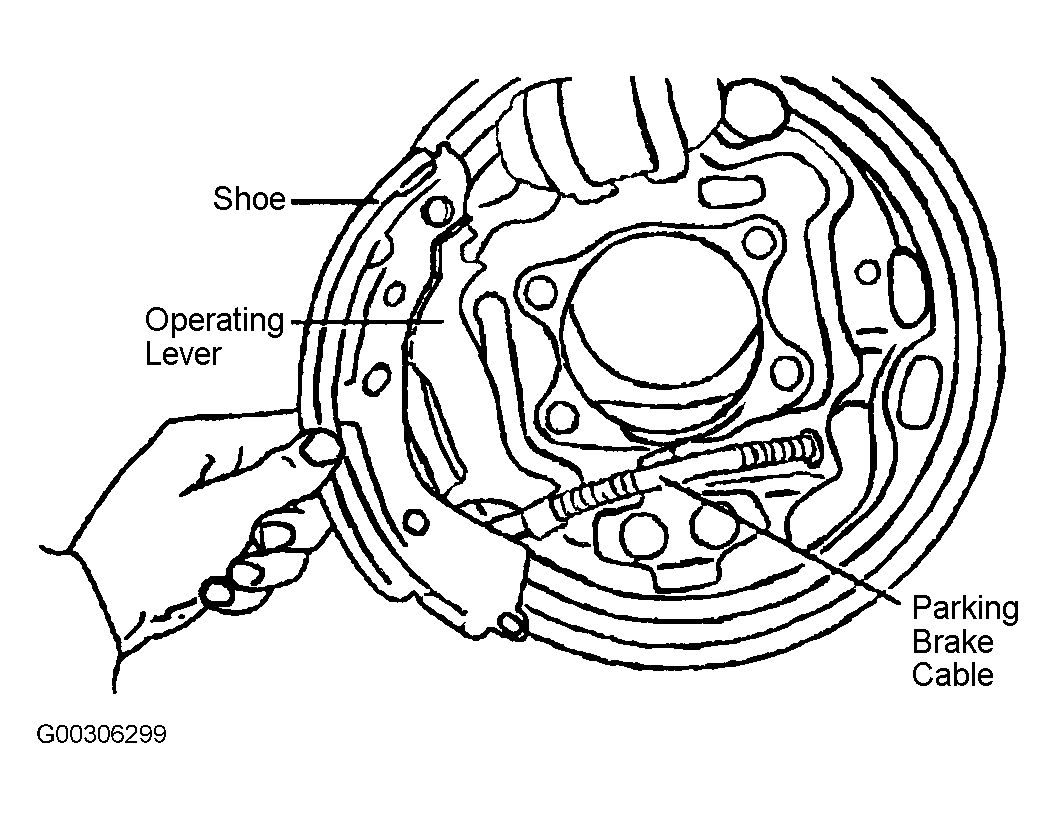

- Connect the operating lever to the parking cable. See Figure .
- Install the shoe hold-down pin.
- Install the shoe adjuster and assemble the return spring.

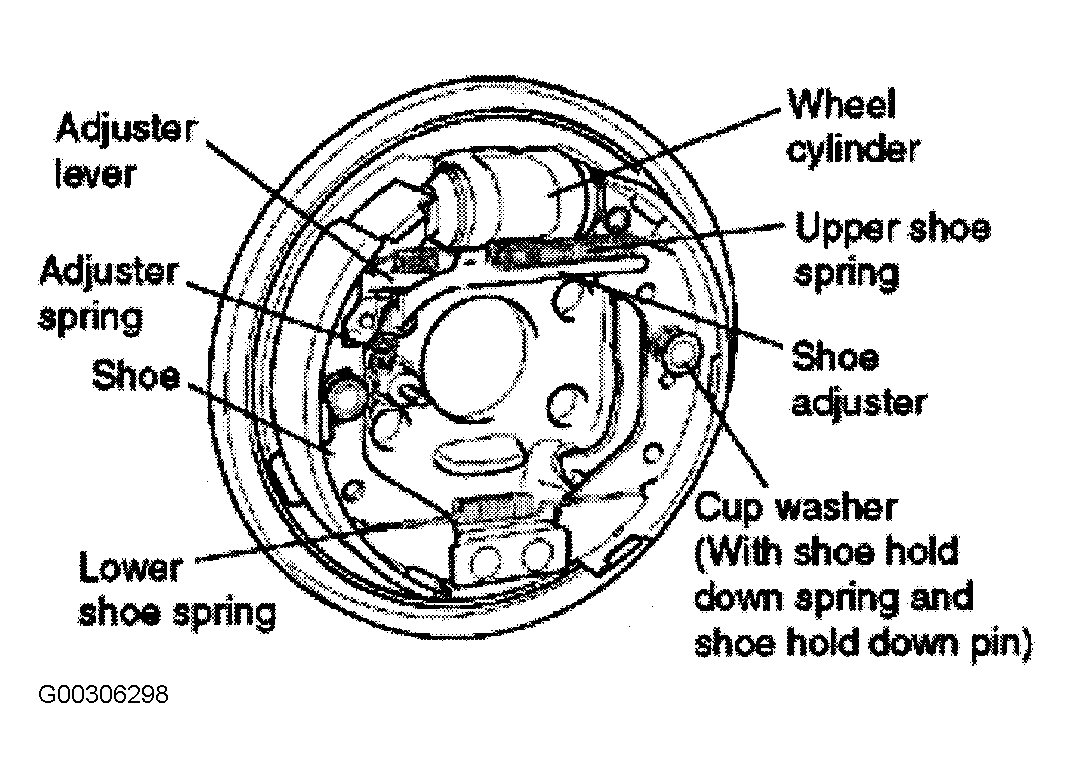

- Assemble the adjuster lever and adjuster spring. See Fig 2 .

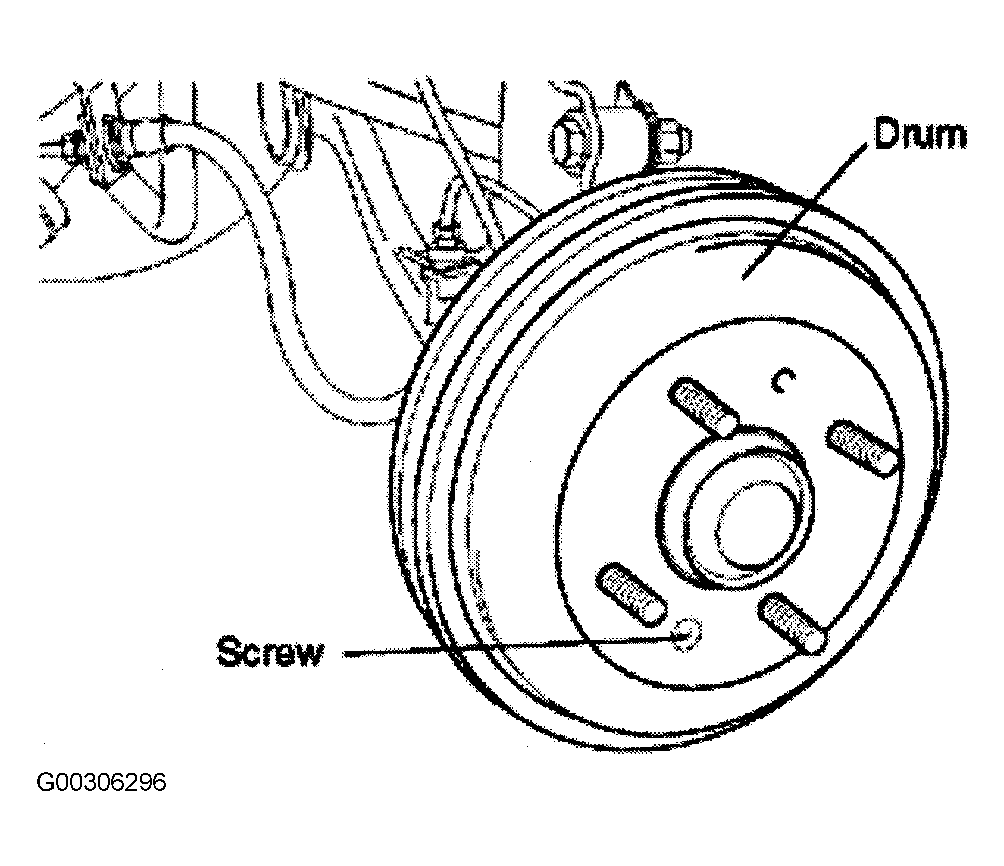

- Assemble the drum and pull the parking brake lever to full stroke several times.CAUTION: Be sure that the inside surface of drum is not contaminated by grease or other materials.
