Proportioning Valve

  1. Remove the proportioning valve from the master cylinder. See Fig 1 .
  2. Connect two pressure gauges; one to the input side, and one to the output side.
    NOTE: Be sure to bleed the system after connecting the pressure gauges.
  3. With the brakes applied, measure the input pressure and the output pressure. If the measured pressures are within the specified range, the proportioning valve is good. See Fig 2 .
  4. Reconnect the brake lines in their original positions and bleed the system.

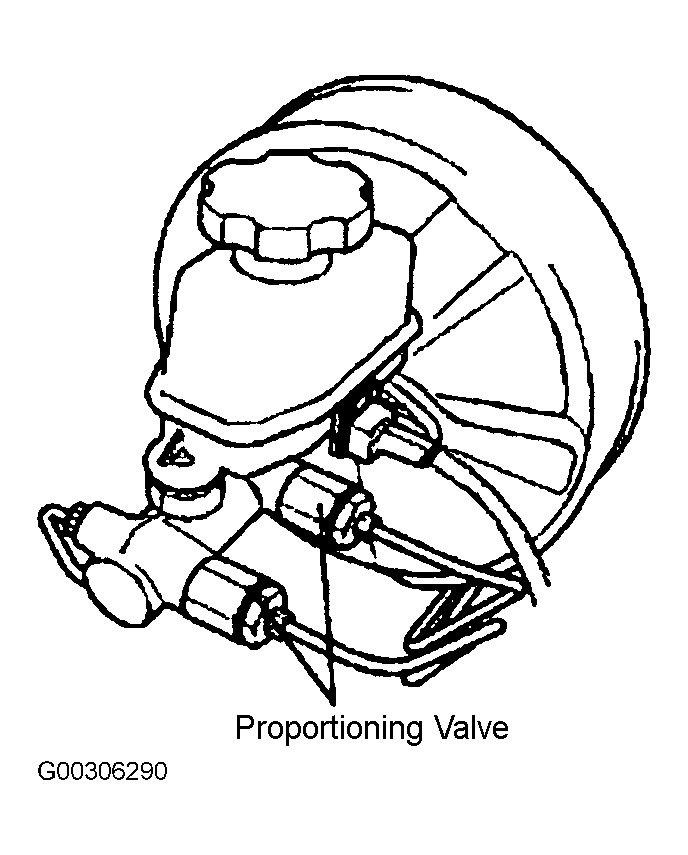

Fig 1: Locating Proportioning Valve
G00306290Courtesy of HYUNDAI MOTOR CO.

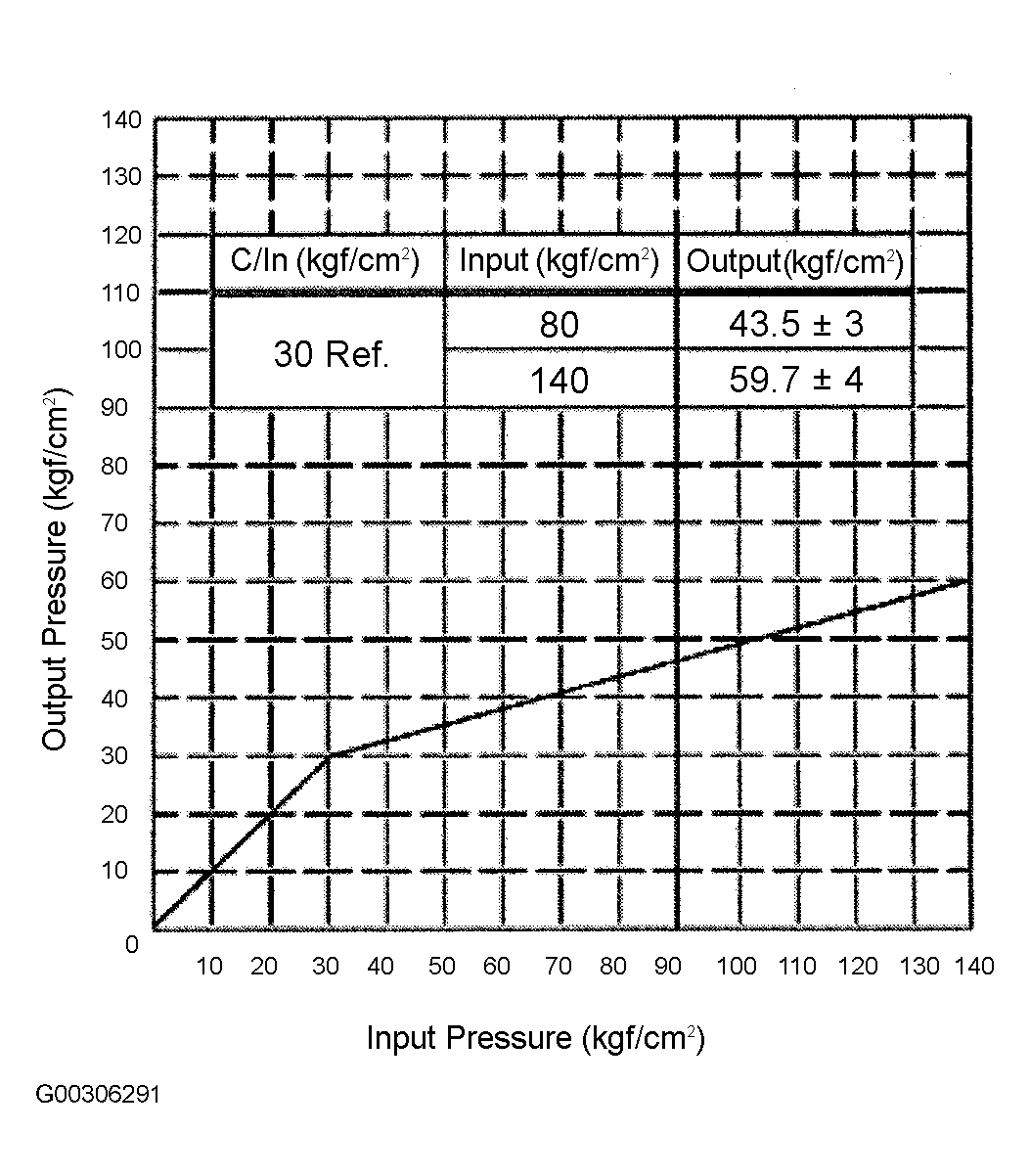

Fig 2: Testing Proportioning Valve
G00306291Courtesy of HYUNDAI MOTOR CO.
