Instrument Cluster

  1. Disconnect the negative(-) battery terminal.
  2. Remove the cluster fascia panel.

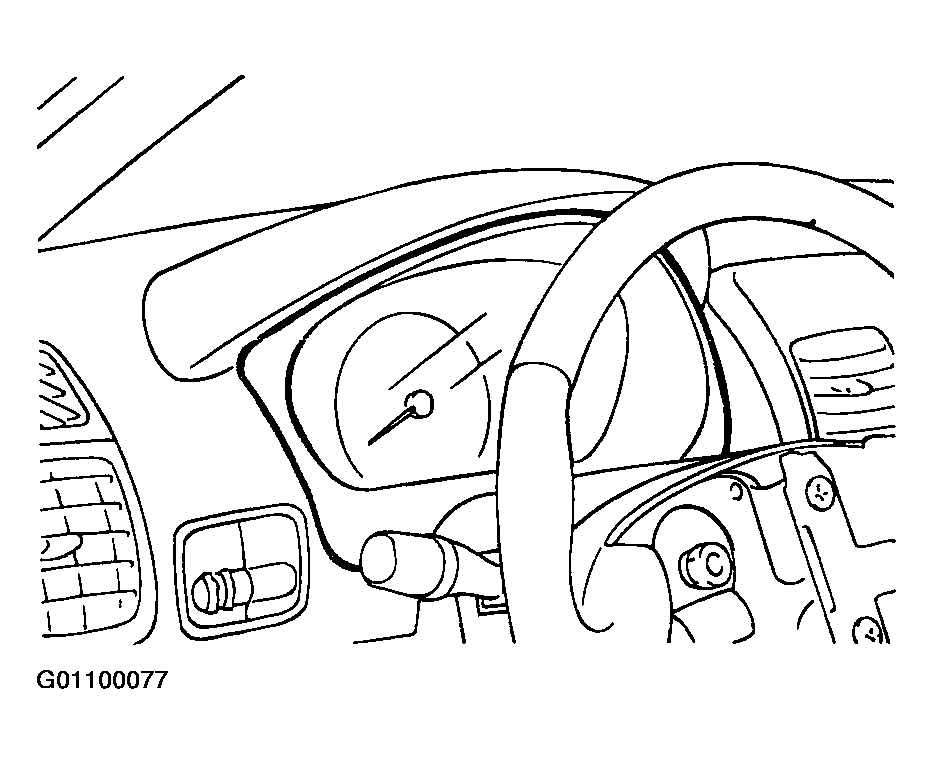

    Fig 1: Removing Instrument Cluster Fascia
    G01100077Courtesy of HYUNDAI MOTOR CO.
  3. Remove the cluster from the housing after removing screws.

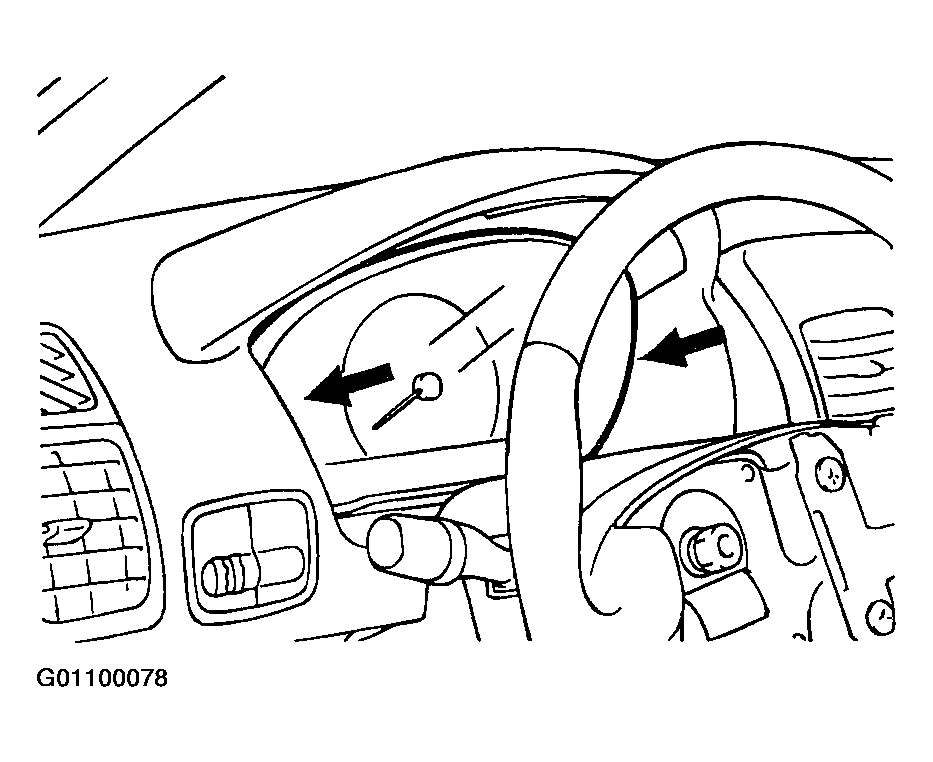

    Fig 2: Removing Instrument Cluster
    G01100078Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the wire connectors from the cluster.
  5. Installation is the reverse of removal.
