Indicators & Alarms: Inspection: Speedometer

Fig 1: Positioning Vehicle On Rollers

Courtesy of HYUNDAI MOTOR CO.

1. Adjust the pressure of the tires to the specified level.
2. Drive the vehicle onto a speedometer tester. Use wheel chocks as appropriate.
3. Check if the speedometer indicator range is within the standard values.

CAUTION: Do not operate the clutch suddenly or increase/decrease speed rapidly while testing.

NOTE: Tire wear and tire over or under inflation will increase the indication error.

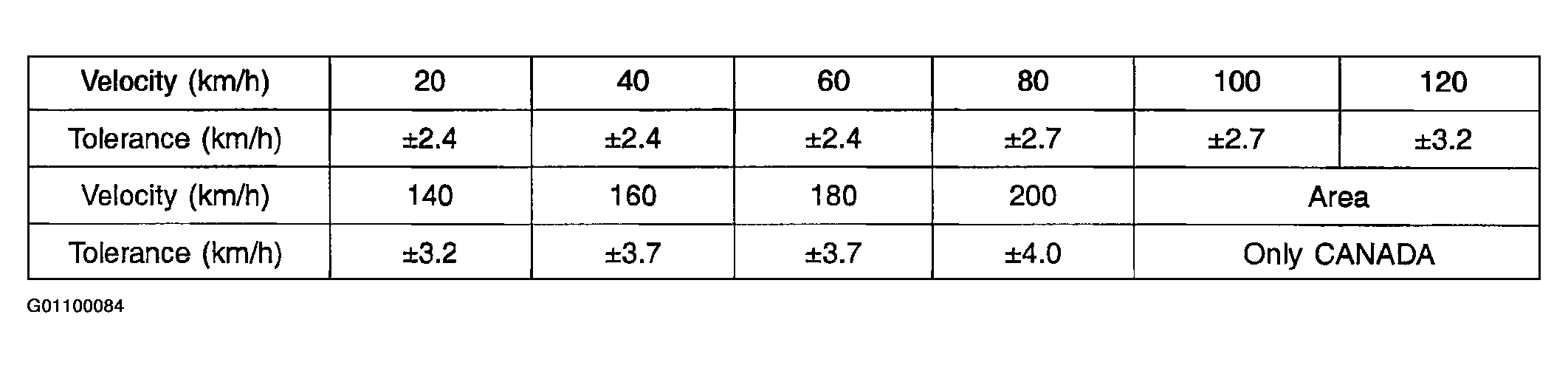

Fig 2: Speedometer Specification Table (km/h)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Speedometer Specification Table (MPH)

Courtesy of HYUNDAI MOTOR CO.
