Oil Pressure Switch

  1. Check that there is continuity between the terminal and ground with the engine off.
  2. Check that there is no continuity between the terminal and ground with the engine running.
  3. If operation is not as specified, replace the switch.

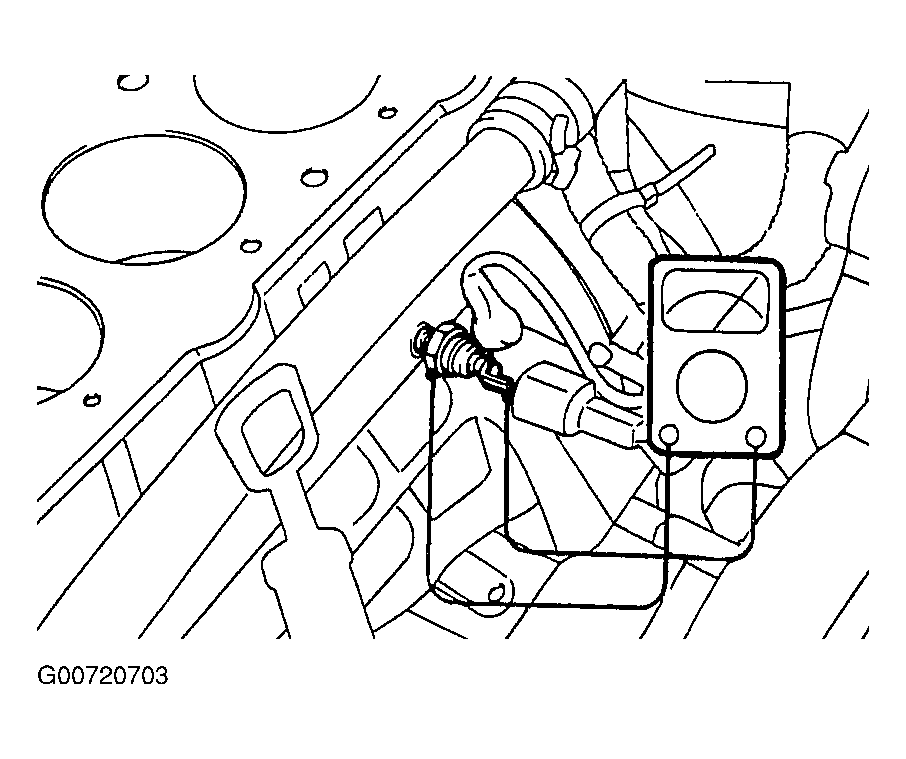

    Fig 1: Checking Oil Pressure Switch Continuity
    G00720703Courtesy of HYUNDAI MOTOR CO.
