Fuel Sender

Using an ohmmeter, measure the resistance between terminals 1 and 3 at each float level.

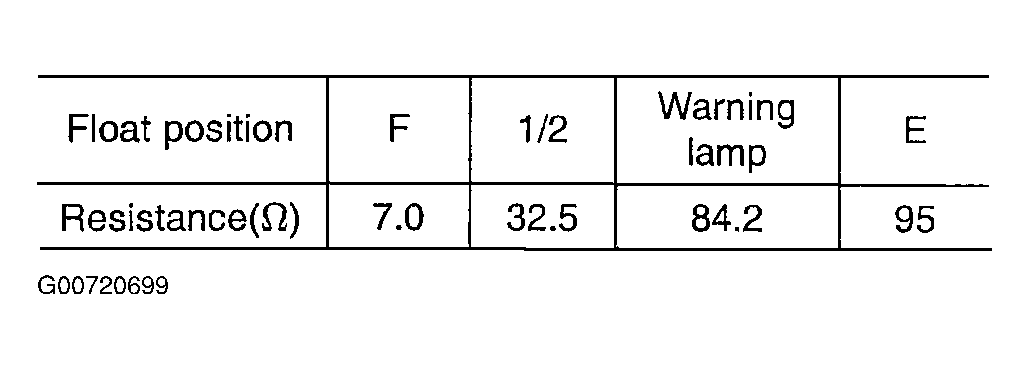

Fig 1: Fuel Sender Float Position/Resistance Specifications
Courtesy of HYUNDAI MOTOR CO.
Also check that the resistance changes smoothly when the float is moved from "E" to "F".

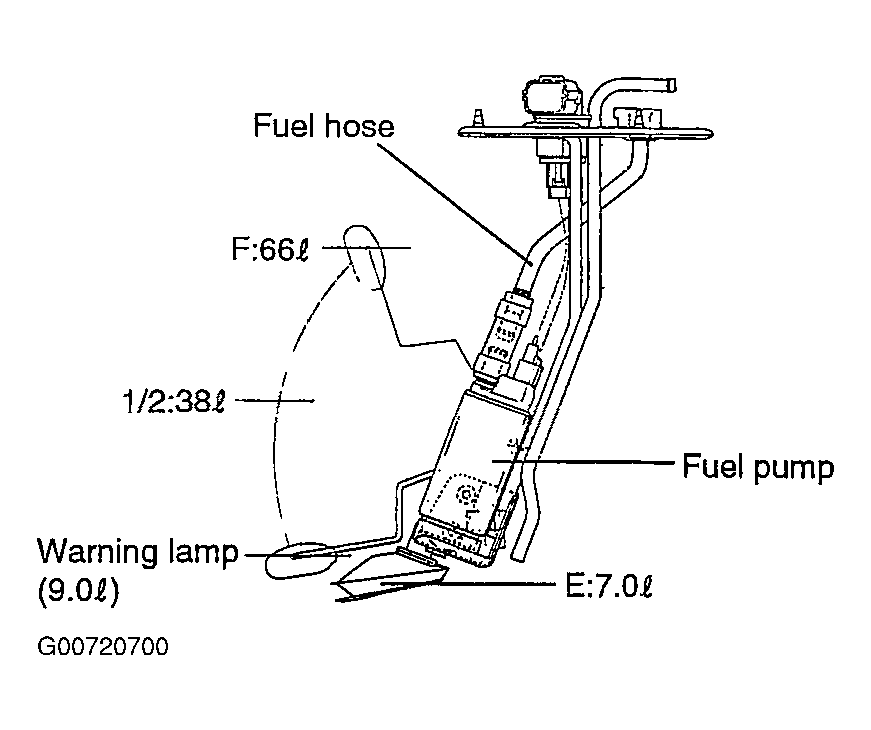

Fig 2: Checking Fuel Sender Float Operation
Courtesy of HYUNDAI MOTOR CO.

NOTE: If there is a malfunction, replace the fuel sender as an assembly.

CAUTION: After completing this test, wipe the sender dry and reinstall it in the fuel tank.
