Indicators And Gauges
Indicators And Gauges

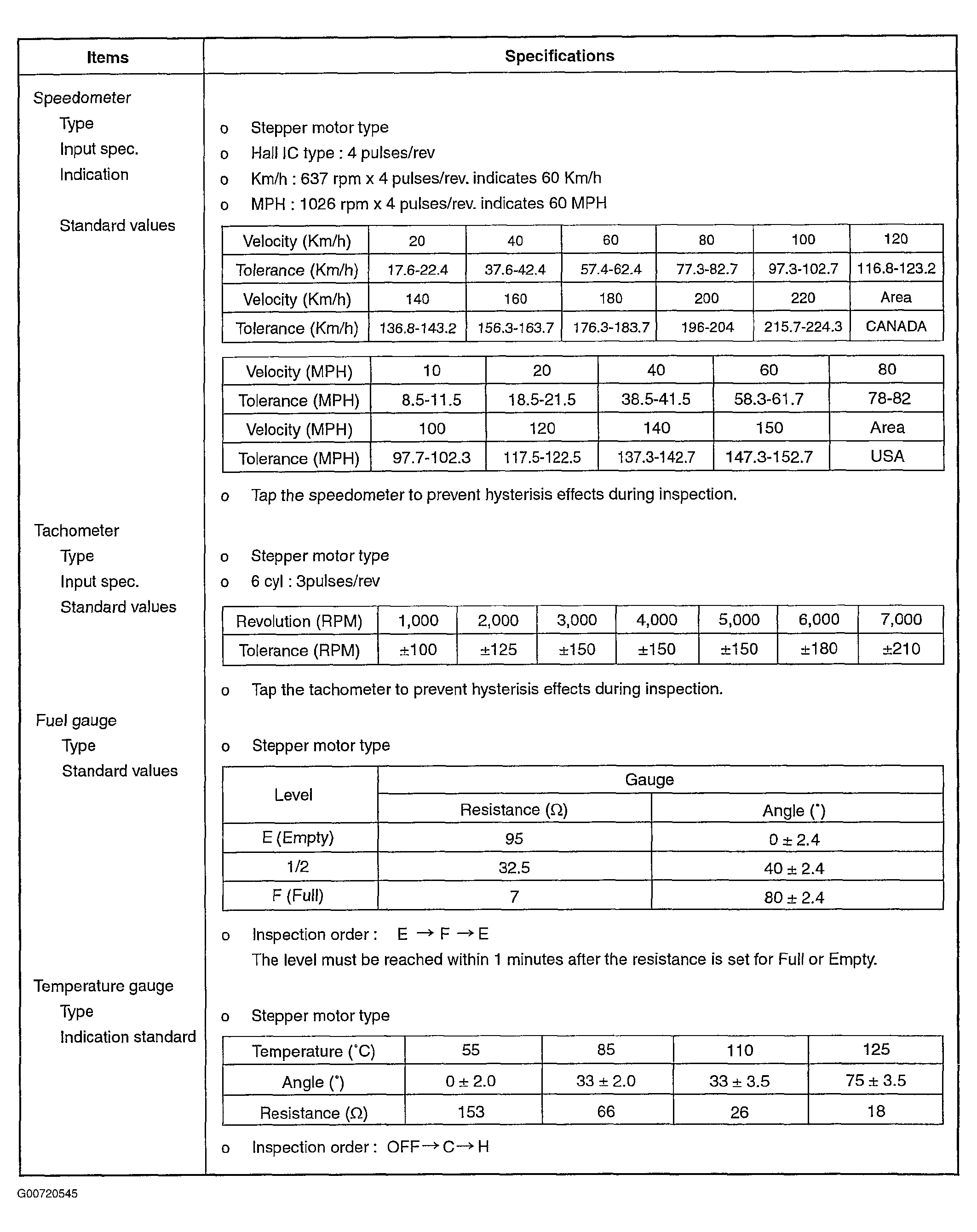

Fig 1: Indicators & Gauges Type & Tolerance Specification Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
