Engine Coolant Temperature Sender

  1. Using an ohmmeter, measure the resistance between the terminal 2 and ground.
  2. If the resistance value is not as shown in the table, replace the temperature sender.

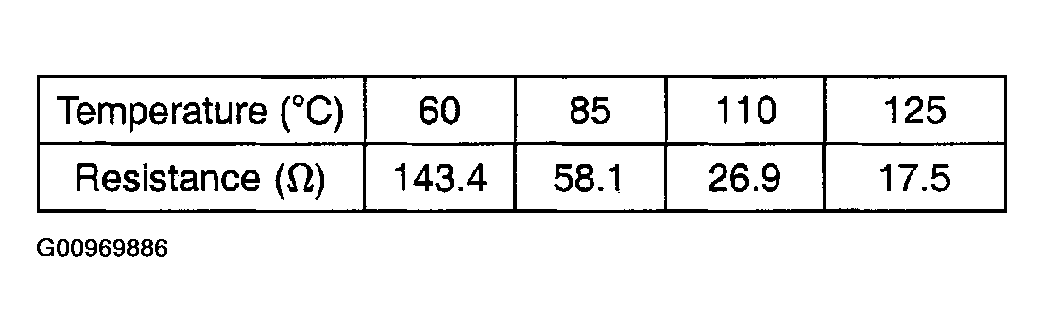

    Fig 1: Engine Coolant Temperature Sender Resistance Table
    G00969886Courtesy of HYUNDAI MOTOR CO.
